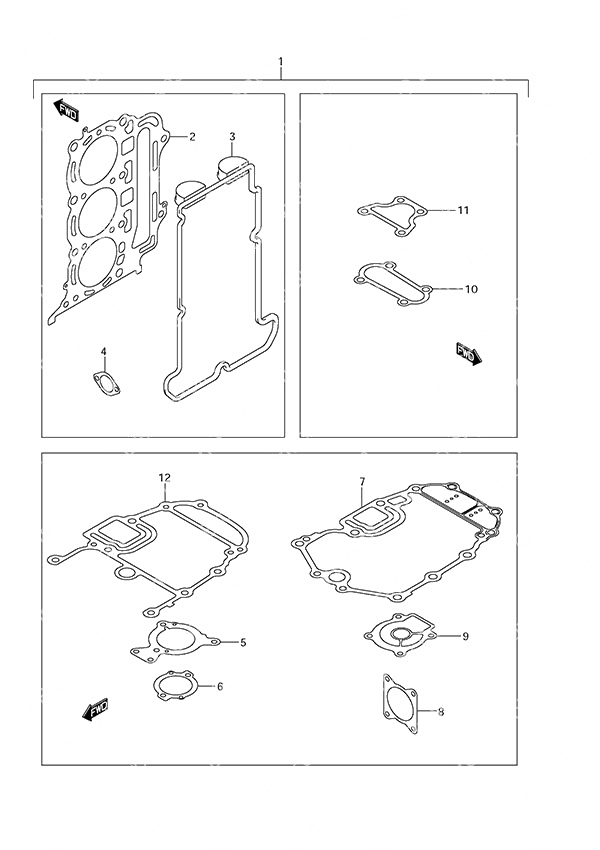

Fig. 71 - Opt: Gasket Set для Suzuki DF 40 - 2002 года выпуска`
-
№АртикулНазвание
-
211141-87J02-000 • Cylinder Head Gasket• Cylinder Head Gasket
-
311189-87J00-000 • Cylinder Head Cover Gasket• Cylinder Head Cover Gasket
-
411265-87E10-000 • Protection Cover Gasket• Protection Cover Gasket
-
511413-87J00-000 • Upper Oil Seal Housing Gasket• Upper Oil Seal Housing Gasket
-
611433-87J00-000 • Under Oil Seal Hsg Gasket• Under Oil Seal Hsg Gasket
-
711489-87J00-000 • Oil Pan Gasket• Oil Pan Gasket
-
813421-87J00-000 • Throttle Body Gasket• Throttle Body Gasket
-
917472-96304-000 • Water Pump Plate Gasket• Water Pump Plate Gasket
-
1017616-87J00-000 • Pressure Valve Cover Gasket• Pressure Valve Cover Gasket
-
1117685-87D10-000 • Thermostat Gasket• Thermostat Gasket
-
1251211-87J00-000 • Engine Holder Gasket• Engine Holder Gasket
-
1399011-87J03-03A Owners Manual DF40/50 2002Owners Manual DF40/50 2002
-
111400-87804-000 Engine Gasket SetEngine Gasket Set
