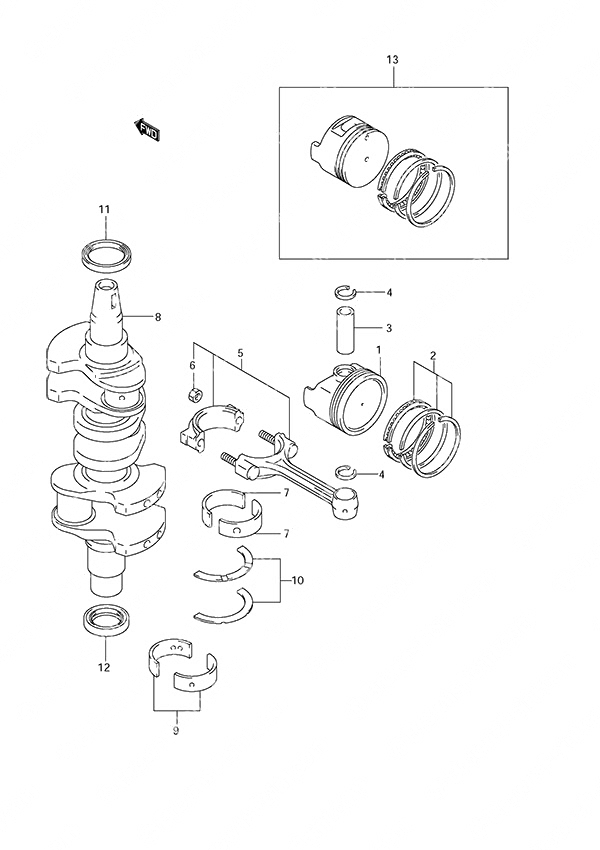

Fig. 5 - Crankshaft для Suzuki DF 40 - 2002 года выпуска`
-
№АртикулНазвание
-
112111-87J04-000 PistonPiston
-
212140-87J01-000 Piston Ring SetPiston Ring Set
-
312151-87J00-000 Piston PinPiston Pin
-
409381-18005-000 CirclipCirclip
-
512160-87J00-000 Connecting Rod AssemblyConnecting Rod Assembly
-
609159-08033-000 • Nut• Nut
-
712181-87J00-0A0 Connecting Rod BearingConnecting Rod Bearing
-
812220-87J03-000 Crankshaft Assembly (NLA)
Requires Ref# 14 & 15Crankshaft Assembly (NLA)
Requires Ref# 14 & 15 -
9-112340-75FA0-0A0 Crankshaft Bearing Set (Green)Crankshaft Bearing Set (Green)
-
9-212340-75FA0-0B0 Crankshaft Bearing Set (Black)Crankshaft Bearing Set (Black)
-
9-312340-75F00-0C0 Crankshaft Bearing Set (Non)Crankshaft Bearing Set (Non)
-
9-412340-75F00-0D0 Crankshaft Bearing Set (Yellow)Crankshaft Bearing Set (Yellow)
-
9-512340-75F00-0E0 Crankshaft Bearing Set (Blue)Crankshaft Bearing Set (Blue)
-
1012300-60840-000 Thrust Bearing SetThrust Bearing Set
-
1109283-35047-000 Oil Seal
UpperOil Seal
Upper -
1212281-87J00-000 Oil Seal (39.3x44x7)
LowerOil Seal (39.3x44x7)
Lower -
13-112100-87J02-000 Piston & Ring Set
OptionalPiston & Ring Set
Optional -
13-212100-87J03-050 Piston & Ring Set (OS:0.50)
OptionalPiston & Ring Set (OS:0.50)
Optional -
1409103-14023-000 Flywheel Bolt (14x40) (NLA)
Not ShownFlywheel Bolt (14x40) (NLA)
Not Shown -
1509160-14065-000 Washer (14.5x36x4.5)
Not ShownWasher (14.5x36x4.5)
Not Shown
