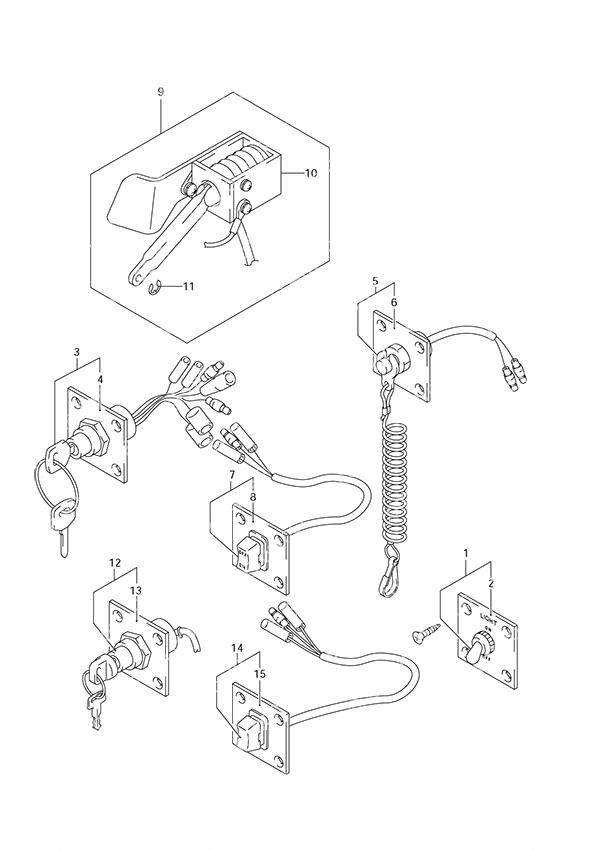

Fig. 48 - Opt: Switch Panel для Suzuki DF 30 - 2002 года выпуска
-
№АртикулНазвание
-
1-137210-92E00-000 Lighting Switch Set (NLA)Lighting Switch Set (NLA)
-
1-237210-93J00-000 Lighting Switch Set (NLA)Lighting Switch Set (NLA)
-
2-137212-92E00-000 • Lighting Switch Panel (NLA)• Lighting Switch Panel (NLA)
-
2-237212-93J00-000 • Lighting Switch Panel (NLA)
For Ref# 1-2• Lighting Switch Panel (NLA)
For Ref# 1-2 -
337100-92E00-000 Ignition Switch Panel Assembly (NLA)
Remote ControlIgnition Switch Panel Assembly (NLA)
Remote Control -
437139-92E01-000 • Single Ingition Switch Panel
Remote Control• Single Ingition Switch Panel
Remote Control -
537803-92E00-000 Emergency Stop Switch Assembly (NLA)
Remote ControlEmergency Stop Switch Assembly (NLA)
Remote Control -
637825-92E00-000 • Emergency Switch Panel
Remote Control• Emergency Switch Panel
Remote Control -
737805-92E00-000 PTT Switch Set (NLA)
Remote Control w/Power TiltPTT Switch Set (NLA)
Remote Control w/Power Tilt -
837855-92E00-000 • PTT Switch Panel (NLA)
Remote Control w/Power Tilt• PTT Switch Panel (NLA)
Remote Control w/Power Tilt -
938600-89J00-000 Choke Solenoid SetChoke Solenoid Set
-
1038610-89J01-000 • Choke Solenoid Assembly• Choke Solenoid Assembly
-
1109383-03001-000 • E Ring• E Ring
-
1237100-92E01-000 Ignition Switch Panel Assembly (NLA)
Remote Control w/Power TiltIgnition Switch Panel Assembly (NLA)
Remote Control w/Power Tilt -
1337139-92E01-000 • Single Ingition Switch Panel
Remote Control w/Power Tilt• Single Ingition Switch Panel
Remote Control w/Power Tilt
