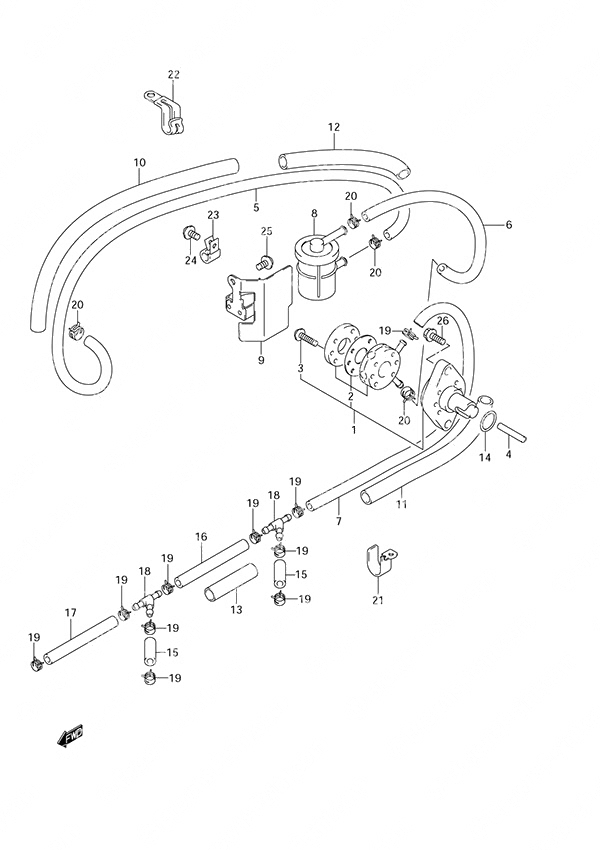

Fig. 11 - Fuel Pump для Suzuki DF 25 - 2002 года выпуска`

Все узлы модели:

• Fig. 1 - Cylinder Head
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 2 - Cylinder Block
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 3 - Under Oil Seal
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 5 - Camshaft
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 4 - Crankshaft
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 6 - Valve
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 7 - Inlet Case
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 9 - Silencer
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 10 - Exhaust Cover
  S/N 02501F-251001 to 02501F-25XXXX
• • Fig. 11 - Fuel Pump
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 12 - Water Pump
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 13 - Thermostat
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 14 - Recoil Starter
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 15 - Throttle Control Non-Remote Control
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 16 - Throttle Control Remote Control
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 17 - Oil Pump
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 18 - Oil Pan
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 19 - Clutch Non-Remote Control
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 20 - Clutch Remote Control
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 22 - Drive Shaft
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 23 - Starting Motor
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 24 - Magneto
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 25 - Rectifier
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 27 - Switch
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 26 - Ignition Coil
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 28 - Harness
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 29 - PTT Relay Remote Control w/Power Tilt
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 30 - Clamp Bracket
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 31 - Swivel Bracket
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 32 - Gas Cylinder
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 33 - Power Tilt Remote Control w/Power Tilt
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 34 - PTT Motor Remote Control w/Power Tilt
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 35 - Engiine Holder
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 36 - Drive Shaft Housing
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 37 - Gear Case
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 38 - Side Cover
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 39 - Engine Cover
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 40 - Tiller Handle
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 42 - Remote Control Box
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 43 - Remocon Cable
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 44 - Drag Link
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 45 - Opt: Starting Motor
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 46 - Opt: Meter
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 47 - Opt: Trim Sender
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 48 - Opt: Switch Panel
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 49 - Opt: Trim Switch
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 50 - Opt: Tiller Handle
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 55 - Opt: Remocon Attachment
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 56 - Opt: Remocon Parts Set
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 57 - Opt: Gasket Set
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 8 - Carburetor
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 21 - Shift Rod
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 41 - Fuel Tank
  S/N 02501F-251001 to 02501F-25XXXX
• Fig. 58 - Optional
  S/N 02501F-151001 to 02501F-15XXXX
