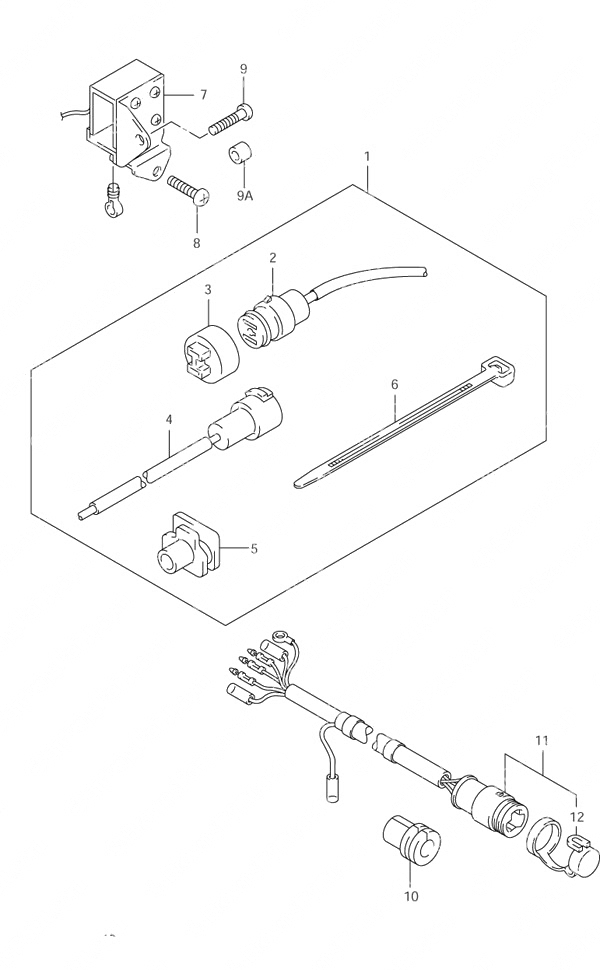

Fig. 46 - Opt: Receptacle Set для Suzuki DF 15 - 2002 года выпуска
-
№АртикулНазвание
-
139600-93910-000 Receptacle Set (NLA)Receptacle Set (NLA)
-
239601-95D00-000 • Lighting Receptacle Assembly• Lighting Receptacle Assembly
-
336634-93910-000 •• Connector Cap•• Connector Cap
-
439602-93900-000 • Lamp Cord Plug Assembly• Lamp Cord Plug Assembly
-
539603-94400-000 • Receptacle Grommet (NLA)• Receptacle Grommet (NLA)
-
6-109407-14403-000 • Clamp (L:125)• Clamp (L:125)
-
6-209407-25402-000 • Clamp (L:248)• Clamp (L:248)
-
738610-93E00-000 Choke Solenoid Assembly
w/Remote Control STDChoke Solenoid Assembly
w/Remote Control STD -
802112-36167-000 Screw
w/Remote Control STDScrew
w/Remote Control STD -
902112-36257-000 Screw
w/Remote Control STDScrew
w/Remote Control STD -
9A09180-06300-000 Spacer
w/Remote Control STDSpacer
w/Remote Control STD -
1036612-92D00-000 Remote Wire Harness Grommet (NLA)
w/Remote Control STDRemote Wire Harness Grommet (NLA)
w/Remote Control STD -
1136630-89E02-000 Remote Control Wire Harness
w/Remote Control STDRemote Control Wire Harness
w/Remote Control STD -
1236631-94300-000 • Cap
w/Remote Control STD• Cap
w/Remote Control STD
