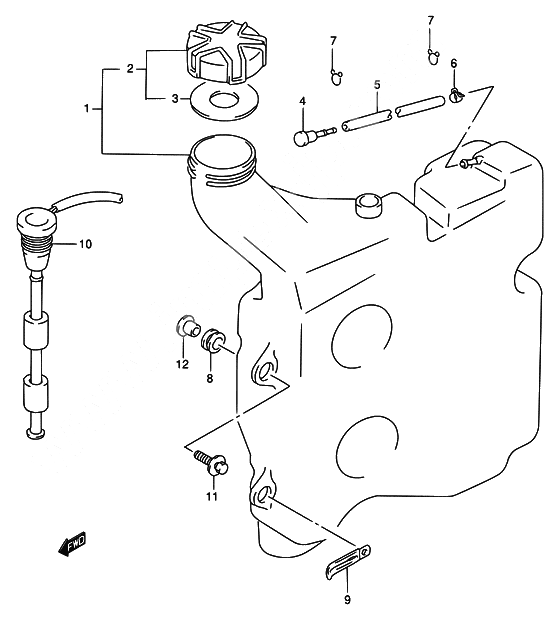

Oil tank для Suzuki DT90TC Y - 2000 года выпуска
-
№АртикулНазвание
-
169100-87E02-000 Комплект бака масляногоКомплект бака масляного
-
269200-87D05-000 Крышка фильтра масляного бака
Cap assy, oil tank fillerКрышка фильтра масляного бака
Cap assy, oil tank filler -
369241-87D20-000 Прокладка бака масляногоПрокладка бака масляного
-
469221-94700-000 Бак масляной для воздушного вентилятора
Air-vent, oil tankБак масляной для воздушного вентилятора
Air-vent, oil tank -
509352-50903-600 Шланг 5X9X600
L:600->50Шланг 5X9X600
L:600->50 -
609401-08411-000 ClipClip
-
709401-08410-000 Clip
MODEL:95~00Clip
MODEL:95~00 -
809320-12027-000 CushionCushion
-
909404-06432-000 Clamp (l:80)
Clamp (l:80)Clamp (l:80)
Clamp (l:80) -
1034860-87E11-000 Сенсор масла
Sensor assy, oil levelСенсор масла
Sensor assy, oil level -
1109116-08101-000 Bolt
Bolt (8x30)Bolt
Bolt (8x30) -
1209169-08042-000 Шайба (8.5X22X2)
Washer (8.5x22x2)Шайба (8.5X22X2)
Washer (8.5x22x2)
