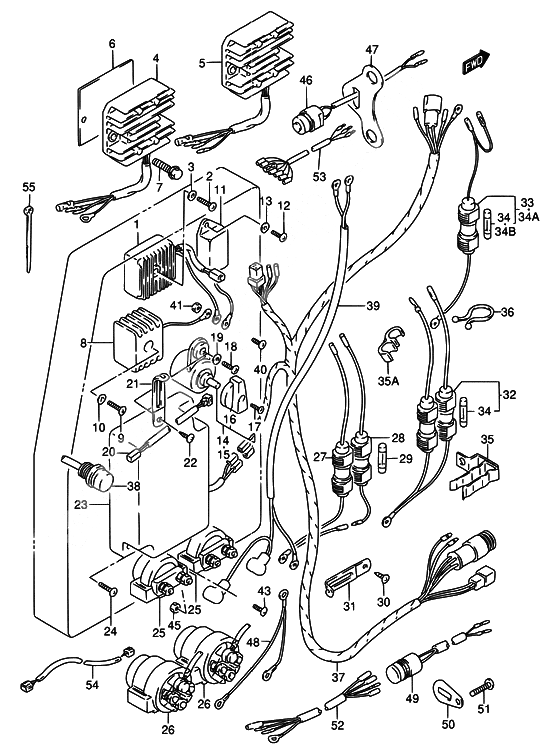

Equipo electrico для Suzuki DT140T Y - 2000 года выпуска
-
№АртикулНазвание
-
132800-94601-000 Регулятор напряжения
Rect & regulator assyMODEL:86~88,Регулятор напряжения
Rect & regulator assyMODEL:86~88, -
203212-05303-000 БолтБолт
-
308322-01057-000 Шайба
Washer, front hook holderШайба
Washer, front hook holder -
432800-87E00-000 Регулятор напряжения
Rect & regulatorMODEL:89,90Регулятор напряжения
Rect & regulatorMODEL:89,90 -
532800-94610-000 Регулятор напряжения
Rect & regulator assyMODEL:91~94Регулятор напряжения
Rect & regulator assyMODEL:91~94 -
532800-94620-000 Регулятор напряженияРегулятор напряжения
-
632805-94600-000 Плата
Plate assy, rect & regulatorMODEL:90,91Плата
Plate assy, rect & regulatorMODEL:90,91 -
701550-06257-000 Bolt
MODEL:89,90Bolt
MODEL:89,90 -
701550-06207-000 Bolt (chrome)
MODEL:91~00Bolt (chrome)
MODEL:91~00 -
832800-95D01-000 Rectifier assy
MODEL:86~88,Rectifier assy
MODEL:86~88, -
903212-05253-000 Tapping screwTapping screw
-
903212-0525B-000 Tapping screwTapping screw
-
1008322-01057-000 Шайба
Washer, front hook holderШайба
Washer, front hook holder -
1137875-94630-000 Блок масляный
Unit, lower oilDT115:608699~711082 DT140:608911~710784Блок масляный
Unit, lower oilDT115:608699~711082 DT140:608911~710784 -
1137875-94641-000 Блок сигнализации по маслу
Unit, lower oilDT115:811083~ DT140:810785~Блок сигнализации по маслу
Unit, lower oilDT115:811083~ DT140:810785~ -
1137875-94611-000 Блок сигнализации по маслу
Unit, lower oilE09,E13,E40Блок сигнализации по маслу
Unit, lower oilE09,E13,E40 -
1203212-05163-000 БолтБолт
-
1203212-0516B-000 БолтБолт
-
1308322-01057-000 Шайба
Washer, front hook holderШайба
Washer, front hook holder -
1437920-87D00-000 Замок зажигания
Switch assy, ignition timingMODEL:86~88,Замок зажигания
Switch assy, ignition timingMODEL:86~88, -
1537920-94621-000 Замок зажигания
Switch assy, ignition timingMODEL:89,90Замок зажигания
Switch assy, ignition timingMODEL:89,90 -
1637922-94610-000 KnobKnob
-
1702112-04087-000 Винт 4X8Винт 4X8
-
1803212-05123-000 БолтБолт
-
1803212-0512B-000 БолтБолт
-
1909160-05024-000 ШайбаШайба
-
2037940-94701-000 Резистор зажигания
Resistor, ign timingMODEL:91~94Резистор зажигания
Resistor, ign timingMODEL:91~94 -
2109404-06432-000 Clamp (l:80)
Clamp (l:80)MODEL:91~94Clamp (l:80)
Clamp (l:80)MODEL:91~94 -
2203242-05103-000 Болт
MODEL:91~94Болт
MODEL:91~94 -
2203242-0510B-000 БолтБолт
-
2332900-94602-000 Блок конденсаторного зажигания
MODEL:86~88,Блок конденсаторного зажигания
MODEL:86~88, -
2332900-94640-000 Коммутатор
Cdi unitMODEL:89~00Коммутатор
Cdi unitMODEL:89~00 -
2403242-05253-000 Болт
Screw, ignitionБолт
Screw, ignition -
2403241-0525A-000 БолтБолт
-
2538410-94540-000 Реле
Trim relay assyMODEL:86~89,Реле
Trim relay assyMODEL:86~89, -
2638410-94551-000 Реле
Relay, pttMODEL:90~00,Реле
Relay, pttMODEL:90~00, -
2638410-94552-000 РелеРеле
-
2736740-87D00-000 Корпус предохранителя
Case assy, fuse rectifierMODEL:86~88Корпус предохранителя
Case assy, fuse rectifierMODEL:86~88 -
2836740-94720-000 Корпус предохранителя аккумулятора
MODEL:86~88Корпус предохранителя аккумулятора
MODEL:86~88 -
2909481-20001-000 Предохранитель
MODEL:86~88Предохранитель
MODEL:86~88 -
3003212-05123-000 БолтБолт
-
3003212-0512B-000 БолтБолт
-
3109404-08205-000 Clamp (l:62)
Clamp (l:62)Clamp (l:62)
Clamp (l:62) -
3109404-06432-000 Clamp (l:80)
Clamp (l:80)Clamp (l:80)
Clamp (l:80) -
3109404-08206-000 Clamp
ClampClamp
Clamp -
3236740-95600-000 Корпус предохранителя
MODEL:89 ->6740-94771Корпус предохранителя
MODEL:89 ->6740-94771 -
3236740-94771-000 Корпус предохранителяКорпус предохранителя
-
3409481-25001-000 Fuse
Fuse, 25aFuse
Fuse, 25a -
34A36740-94620-000 Крышка предохранителя
Case assy, fuseDT115S/DT140EPIКрышка предохранителя
Case assy, fuseDT115S/DT140EPI -
34B09481-10001-000 Предохранитель
DT115S/DT140EPIПредохранитель
DT115S/DT140EPI -
3536791-87E00-000 Держатель предохранителя
Holder, fuse caseMODEL:89~93Держатель предохранителя
Holder, fuse caseMODEL:89~93 -
35A09408-00043-000 Clamp
Holder, fuse caseMODEL:94~00Clamp
Holder, fuse caseMODEL:94~00 -
3609408-00021-000 Clamp
Clip, oil warning reset swMODEL:89~92Clamp
Clip, oil warning reset swMODEL:89~92 -
3736610-94600-000 Проводка
Harness assy, wiringDT115:~608590 DT140:~608910Проводка
Harness assy, wiringDT115:~608590 DT140:~608910 -
3736610-94631-000 Проводка
Harness assy, wiringDT115:608591~ DT140:608911~Проводка
Harness assy, wiringDT115:608591~ DT140:608911~ -
3736610-94640-000 Проводка
Harness assy, wiringDT115/140,MODEL:89~92Проводка
Harness assy, wiringDT115/140,MODEL:89~92 -
3736610-94650-000 Кабель электрический
MODEL:89~00/E13,E40Кабель электрический
MODEL:89~00/E13,E40 -
3736610-94661-000 Кабель электрический
E38,Кабель электрический
E38, -
3736610-94670-000 Проводка
Harness assy, wiringDT115 MODEL:93~00 DT140TC ~MODEL:96Проводка
Harness assy, wiringDT115 MODEL:93~00 DT140TC ~MODEL:96 -
3736610-94680-000 Проводка
Harness assy, wiringDT115S/DT140EPIПроводка
Harness assy, wiringDT115S/DT140EPI -
3837930-94706-000 Переключатель
Switch assy, oil warning resetMODEL:68~88,Переключатель
Switch assy, oil warning resetMODEL:68~88, -
3933831-94630-000 Кабель
Cable assy, trim relayКабель
Cable assy, trim relay -
4002112-36207-000 Болт
FOR RECT EARTHБолт
FOR RECT EARTH -
4108310-00067-000 Гайка
FOR RECT EARTHГайка
FOR RECT EARTH -
4302112-36207-000 Болт
FOR PTT RELAY EARTHБолт
FOR PTT RELAY EARTH -
4508310-00067-000 Гайка
FOR PTT RELAY EARTHГайка
FOR PTT RELAY EARTH -
4634820-94600-000 Сенсор температуры двигателя
Sensor, engine tempDT115:~011278 DT140:~011168Сенсор температуры двигателя
Sensor, engine tempDT115:~011278 DT140:~011168 -
4734853-94600-000 Крепёж
Suport, engine temp sensorDT115:~011278 DT140:~011168Крепёж
Suport, engine temp sensorDT115:~011278 DT140:~011168 -
4833832-94601-000 Кабель
Cable, trim relay groundКабель
Cable, trim relay ground -
4934850-94600-000 Сенсор
Sensor, heatMODEL:92~00Сенсор
Sensor, heatMODEL:92~00 -
4934850-94610-000 СенсорСенсор
-
5034853-94700-000 Крепёж
Suporter, engine tempMODEL:92~00Крепёж
Suporter, engine tempMODEL:92~00 -
5109125-06069-000 Винт 6X12 (SUS)
MODEL:92~00Винт 6X12 (SUS)
MODEL:92~00 -
5236810-94601-000 Провод
Lead assy, rectifierПровод
Lead assy, rectifier -
5236810-94610-000 Провод
Lead, rectifier extDT115S/DT140EPIПровод
Lead, rectifier extDT115S/DT140EPI -
5336630-92E00-000 Проводка
Wire assy, instrumentMODEL:93~00Проводка
Wire assy, instrumentMODEL:93~00 -
5436682-92E00-000 Проводка
Wire, trim gauge extMODEL:93~00Проводка
Wire, trim gauge extMODEL:93~00 -
5509407-14403-000 Clamp
Clamp, spark plug capClamp
Clamp, spark plug cap -
5509407-08401-000 Струбцина
FOR FUSE LEADСтрубцина
FOR FUSE LEAD
