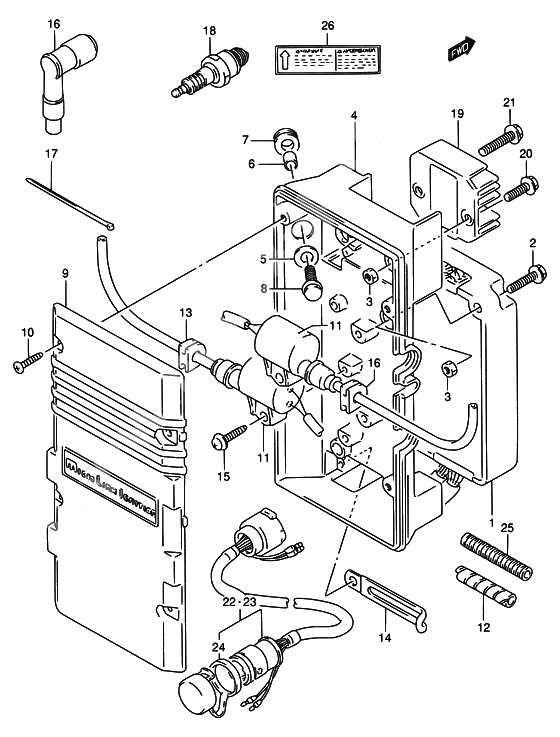

Ignition coil для Suzuki DT100TC Y - 2000 года выпуска
-
№АртикулНазвание
-
132900-87E00-000 Блок CDI
MODEL:89Блок CDI
MODEL:89 -
132900-87E22-000 Коммутатор
DT90 MODEL:90~00 DT100 MODEL:90~98Коммутатор
DT90 MODEL:90~00 DT100 MODEL:90~98 -
132900-87E30-000 Блок CDI
100S,MODEL:90Блок CDI
100S,MODEL:90 -
132900-87E40-000 Коммутатор
DT100 MODEL:99,00Коммутатор
DT100 MODEL:99,00 -
201550-06253-000 Bolt (6x25)Bolt (6x25)
-
201550-0625B-000 Bolt (6x25)Bolt (6x25)
-
201550-0625A-000 Bolt (6x25)Bolt (6x25)
-
308310-00063-000 ГайкаГайка
-
308310-0006B-000 ГайкаГайка
-
308310-0006A-000 ГайкаГайка
-
432950-87E00-000 Коробка электрическая
Holder, electric partsКоробка электрическая
Holder, electric parts -
509160-06052-000 Шайба
Washer (6.5x16x1.2)Шайба
Washer (6.5x16x1.2) -
609180-06248-000 Кольцо/шайбаКольцо/шайба
-
709320-08001-000 Валик
CushionВалик
Cushion -
809128-06069-000 Болт 6X25Болт 6X25
-
932951-87E00-000 Крышка электрической коробкиКрышка электрической коробки
-
932951-87E01-000 Крышка электрической коробкиКрышка электрической коробки
-
1003212-05203-000 БолтБолт
-
1003211-0520A-000 БолтБолт
-
1133410-87D70-000 Катушка зажигания
Coil, ignition no.1Катушка зажигания
Coil, ignition no.1 -
1238423-95510-000 Tube,150
L:150->0 ~MODEL:94Tube,150
L:150->0 ~MODEL:94 -
1233833-91J00-000 Tube,150Tube,150
-
1309309-06007-000 GrommetGrommet
-
1409404-08206-000 Clamp
ClampClamp
Clamp -
1503242-05253-000 Болт
Screw, ignitionБолт
Screw, ignition -
1503241-0525A-000 БолтБолт
-
1633510-87D20-000 Свечной колпачек
MODEL:94~00Свечной колпачек
MODEL:94~00 -
1633510-98601-000 Свечной колпачек
MODEL:89~93Свечной колпачек
MODEL:89~93 -
1709407-14403-000 Clamp
Clamp, spark plug capClamp
Clamp, spark plug cap -
1809482-00370-000 Свеча зажигания BR8H
MODEL:96~00Свеча зажигания BR8H
MODEL:96~00 -
1809482-00464-000 Свеча зажигания BR8H
Plug, spark (br8hcs)~MODEL:95Свеча зажигания BR8H
Plug, spark (br8hcs)~MODEL:95 -
1932800-87D00-000 Rectifier assy
Rectifier & regulator assyRectifier assy
Rectifier & regulator assy -
1932800-94610-000 Регулятор напряжения
Rect & regulator assyMODEL:94~00Регулятор напряжения
Rect & regulator assyMODEL:94~00 -
1932800-94620-000 Регулятор напряженияРегулятор напряжения
-
2001550-06207-000 Bolt (chrome)Bolt (chrome)
-
2101550-06307-000 Bolt (chrome)Bolt (chrome)
-
2236620-92E00-000 Проводка дистанционного упраления
Wiring harness 9 wiresMODEL:93~00Проводка дистанционного упраления
Wiring harness 9 wiresMODEL:93~00 -
2336620-87D20-000 Проводка
Wiring harness, extensionOPT,L:5000Проводка
Wiring harness, extensionOPT,L:5000 -
2336620-95302-000 Проводка удляняющая
Wiring harness, extensionOPT,L:2000Проводка удляняющая
Wiring harness, extensionOPT,L:2000 -
2436631-94300-000 Крышка
OPTКрышка
OPT -
2533446-98E20-000 Протектор
Tube, high tension cordL:500->0 MODEL:95~00Протектор
Tube, high tension cordL:500->0 MODEL:95~00 -
2632803-87E01-000 Наклейка
Label, regulator warningНаклейка
Label, regulator warning
