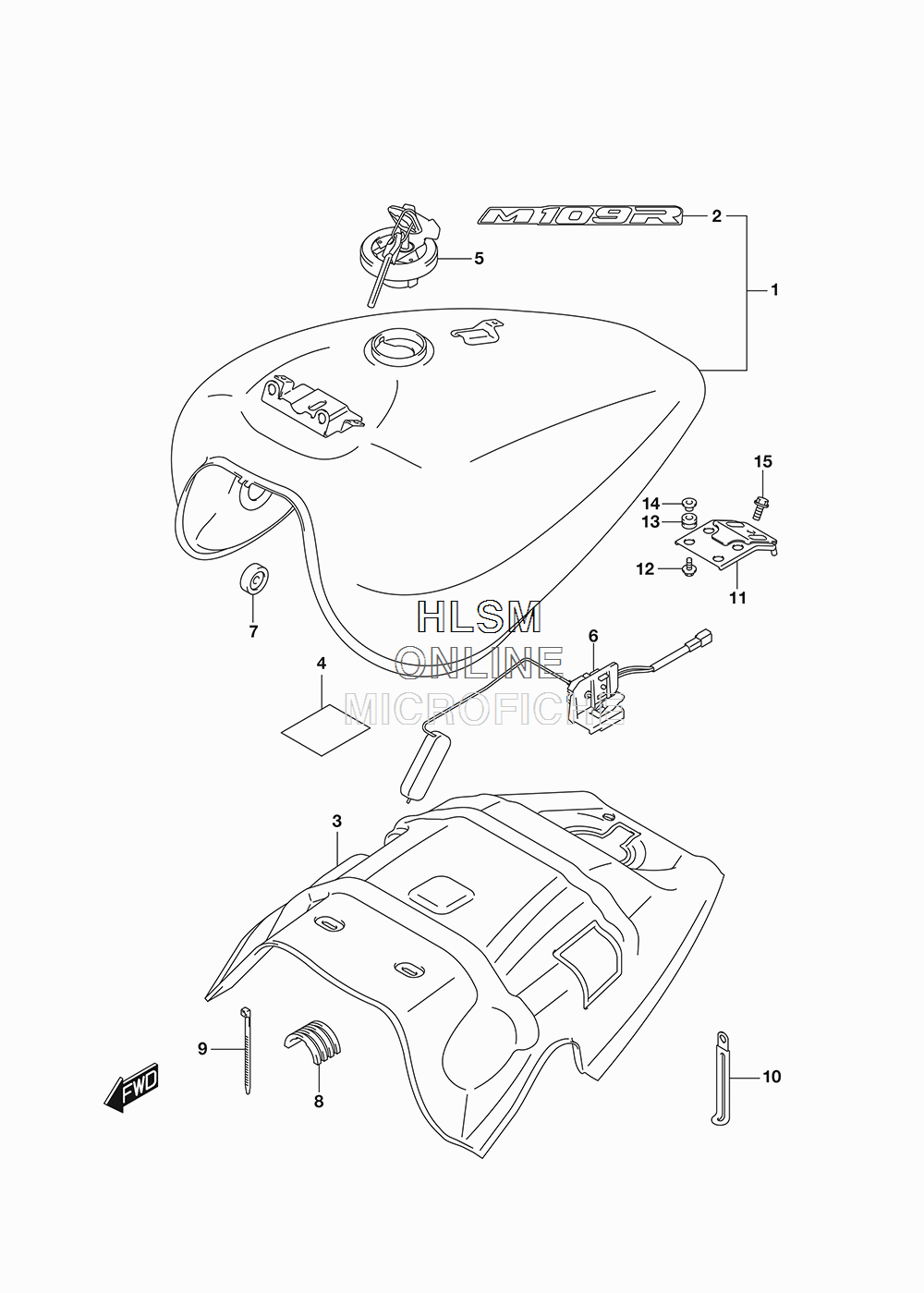

FUEL TANK (CANADA) для Suzuki VZR1800BZ M109R - 2018 года выпуска
-
№АртикулНазвание
-
1-149100-48G80-YVB TANK ASSY, FUEL (YVB - BLACK FOR JBA - BLACK/ORANGE)TANK ASSY, FUEL (YVB - BLACK FOR JBA - BLACK/ORANGE)
-
1-249100-48G90-JRU TANK ASSY, FUEL (JRU - SILVER/BLACK FOR JRU - SILVER/BLACK)TANK ASSY, FUEL (JRU - SILVER/BLACK FOR JRU - SILVER/BLACK)
-
2-168111-48G60-YME ...EMBLEM, "M109R" (YME - ORANGE FOR TANK YVB FOR BIKE JBA - BLACK/ORANGE)...EMBLEM, "M109R" (YME - ORANGE FOR TANK YVB FOR BIKE JBA - BLACK/ORANGE)
-
2-268111-48G60-YLF ...EMBLEM, "M109R" (YLF - GRAY FOR TANK JRU FOR BIKE JRU - SILVER/BLACK)...EMBLEM, "M109R" (YLF - GRAY FOR TANK JRU FOR BIKE JRU - SILVER/BLACK)
-
344191-48G10 SHIELD, TANK HEATSHIELD, TANK HEAT
-
444192-48G00 TAPETAPE
-
544200-39860 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
634810-48G00 GAUGE ASSY, FUEL LEVEL SENDERGAUGE ASSY, FUEL LEVEL SENDER
-
709329-10007 CUSHION (FRONT)CUSHION (FRONT)
-
844541-13E10 CUSHION, SIDECUSHION, SIDE
-
909407-30402 CLAMP (L:300)CLAMP (L:300)
-
1009404-06434 CLAMP (L:80 T:1.0) (SHIELD)CLAMP (L:80 T:1.0) (SHIELD)
-
1144530-48G10 BRACKET, REARBRACKET, REAR
-
1209116-06192 BOLT (6X20)BOLT (6X20)
-
1309320-08001 CUSHIONCUSHION
-
1409169-06062 WASHERWASHER
-
1501550-0816A BOLT (REAR)BOLT (REAR)
