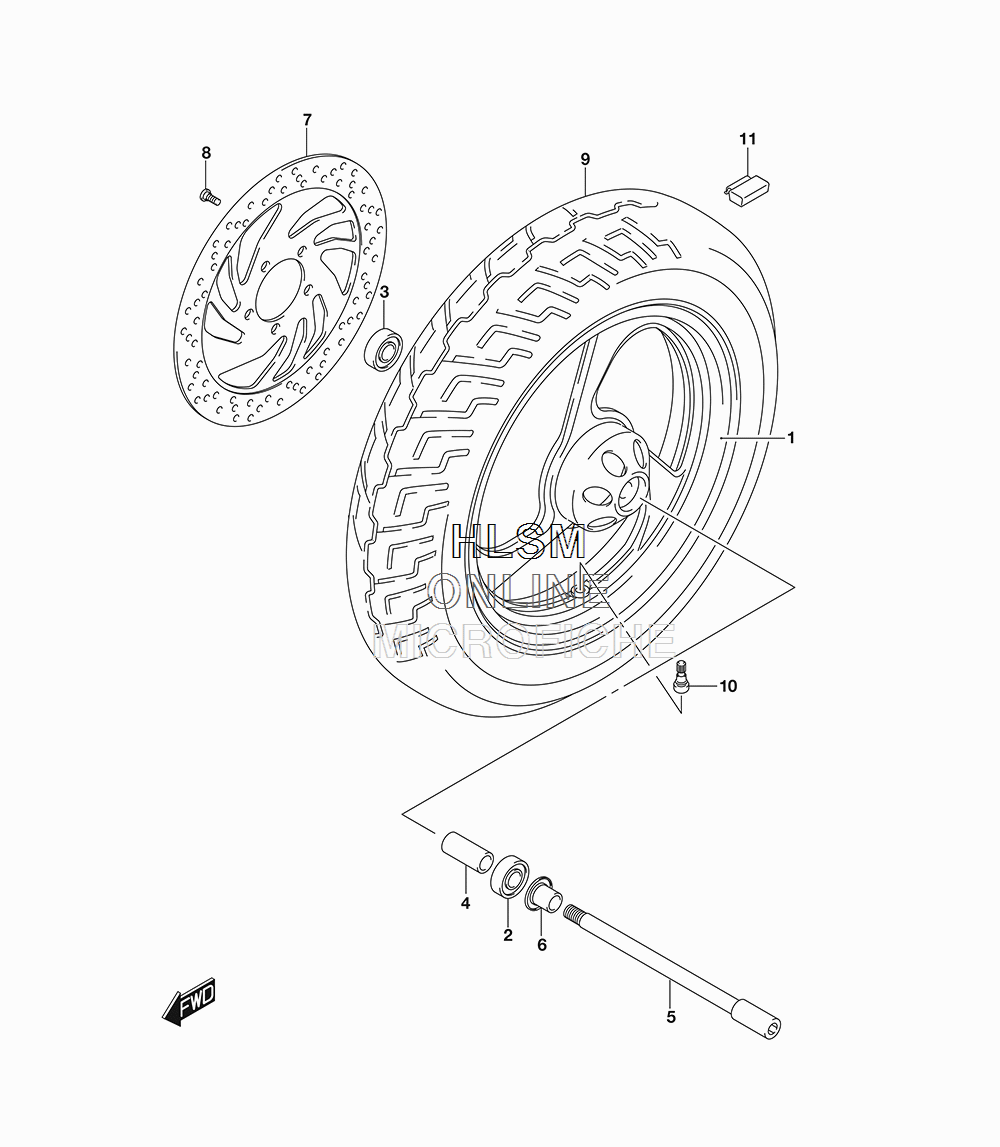

WHEEL - FRONT для Suzuki VZ800 M50 - 2018 года выпуска`
-
№АртикулНазвание
-
154111-39G00-019 WHEEL, FRONT (16M/CXMT3.00) (019 - BLACK)WHEEL, FRONT (16M/CXMT3.00) (019 - BLACK)
-
208133-62037 BEARING (LH)BEARING (LH)
-
308143-62037 BEARING (RH)BEARING (RH)
-
409180-17092 SPACER (17.5X25X113)SPACER (17.5X25X113)
-
554711-41F00 AXLE, FRONTAXLE, FRONT
-
654740-32C00 SPACER, AXLE (LH)SPACER, AXLE (LH)
-
759211-39G00 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
809106-08160 BOLT (8X21)BOLT (8X21)
-
955110-41F10 TIRE, FRONT (130/90-16M/C 67H (GS-23F A/TL IRC)TIRE, FRONT (130/90-16M/C 67H (GS-23F A/TL IRC)
-
1043130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
11-155411-22H00 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
11-255412-22H00 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
11-355413-22H00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
