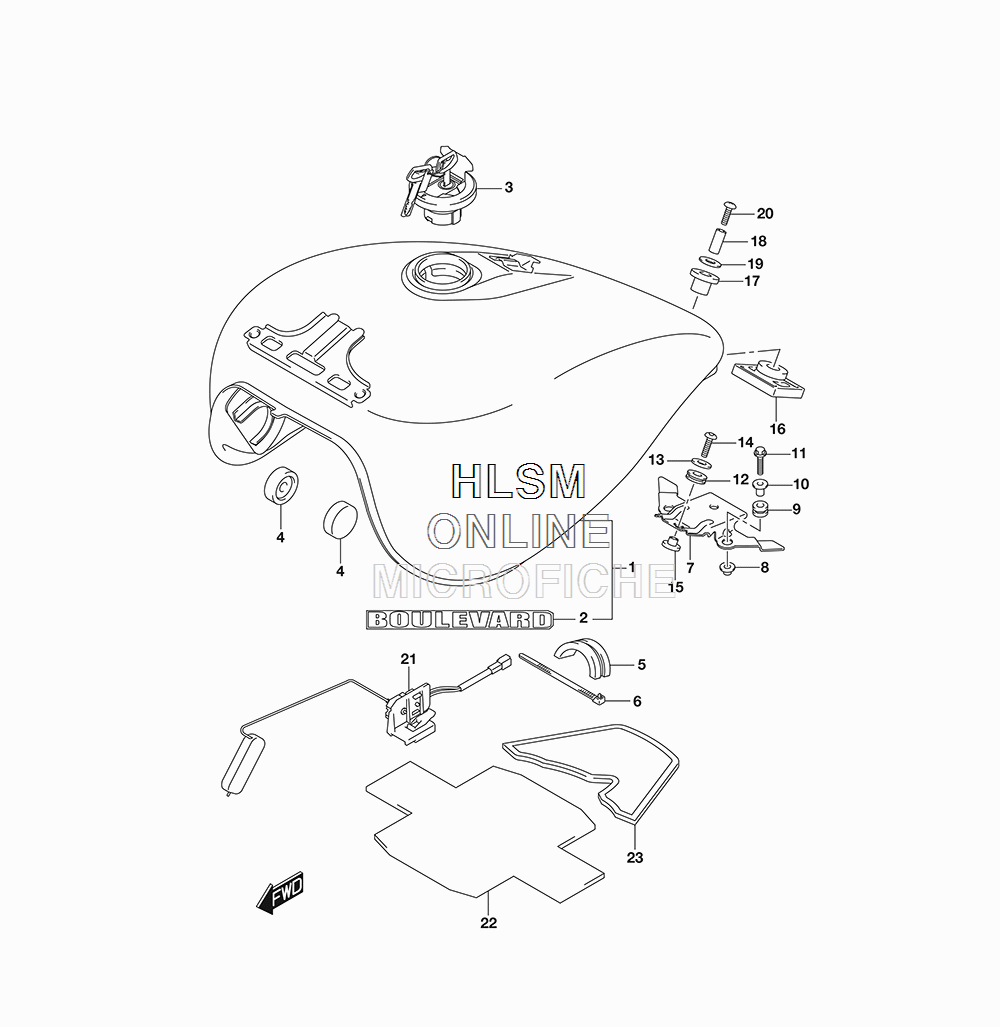

FUEL TANK (CALIF.) для Suzuki VZ800 M50 - 2018 года выпуска`
-
№АртикулНазвание
-
144100-39GQ0-6UX TANK ASSY, FUEL (6UX - BLACK)TANK ASSY, FUEL (6UX - BLACK)
-
268111-48G20-YHF ...EMBLEM (YHF - GRAY)...EMBLEM (YHF - GRAY)
-
344200-39870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
409329-10007 CUSHIONCUSHION
-
544541-14F10 CUSHION, SIDECUSHION, SIDE
-
609407-25402 CLAMP (L:250)CLAMP (L:250)
-
744530-39G20 BRACKET, REARBRACKET, REAR
-
809169-06076 WASHERWASHER
-
909320-08001 CUSHIONCUSHION
-
1009169-06070 WASHERWASHER
-
1102162-0625B SCREWSCREW
-
1209320-12011 CUSHIONCUSHION
-
1309160-08151 WASHER (8.5X26X1.6)WASHER (8.5X26X1.6)
-
1409106-08150 BOLT (8X23)BOLT (8X23)
-
1544512-39G00 WASHERWASHER
-
1644542-41F00 CUSHION, REAR LOWERCUSHION, REAR LOWER
-
1744541-41F01 CUSHION, REAR UPPERCUSHION, REAR UPPER
-
1809180-08057 SPACER (8.2X12.5X23.5)SPACER (8.2X12.5X23.5)
-
1909160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
2001550-0835A BOLTBOLT
-
2134810-39G00 GAUGE ASSY, FUEL LEVELGAUGE ASSY, FUEL LEVEL
-
2244192-39G00 SHIELD, TANK HEATSHIELD, TANK HEAT
-
2344193-39G00 SHIELD, TANK HEAT NO.2SHIELD, TANK HEAT NO.2
