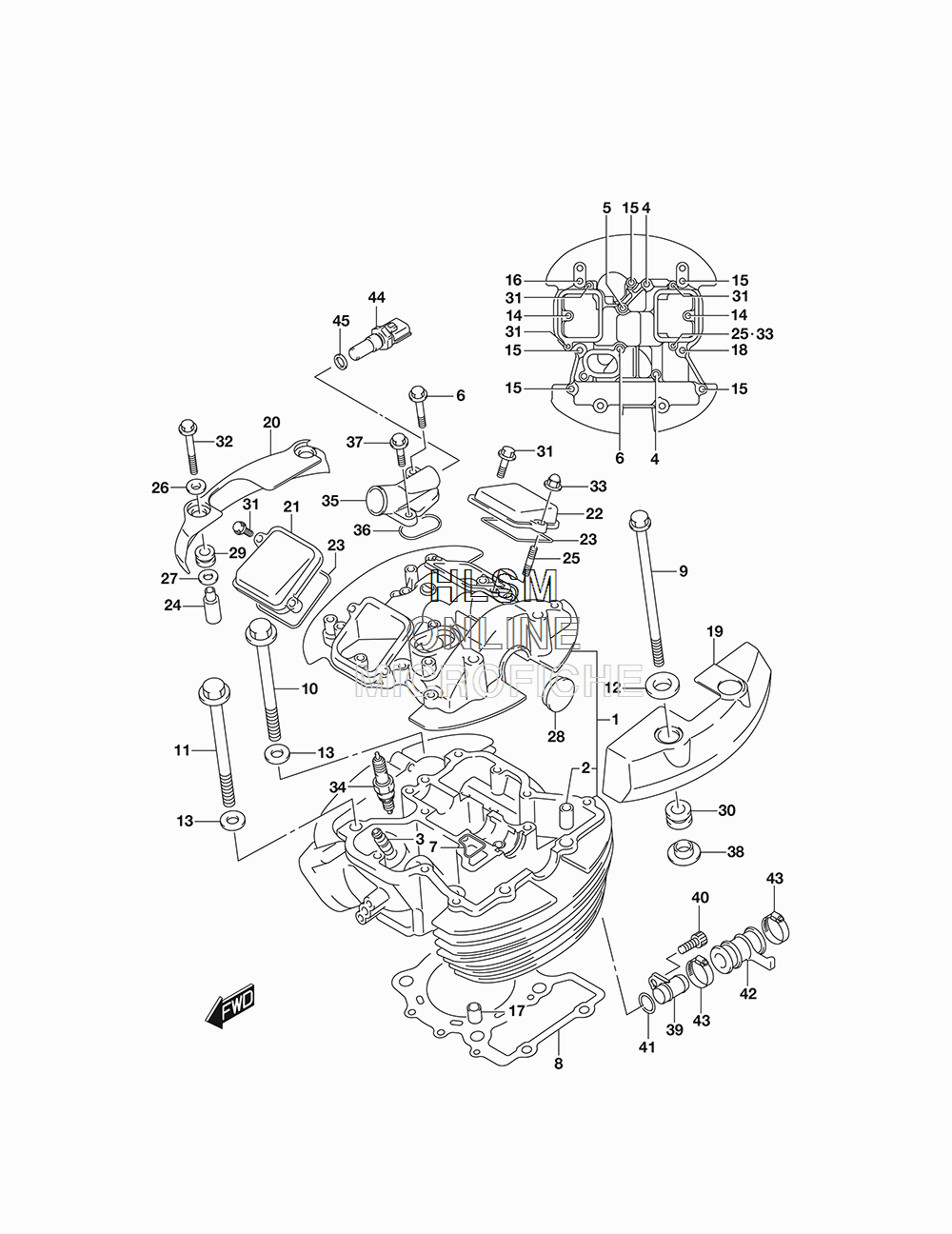

CYLINDER HEAD (FRONT) (CALIF.) для Suzuki VL800 C50 - 2018 года выпуска`
-
№АртикулНазвание
-
111101-39G50 HEAD ASSY, CYLINDER FRONTHEAD ASSY, CYLINDER FRONT
-
209206-11011 ...PIN (11X14)...PIN (11X14)
-
311115-41F70 GUIDE, VALVE (OS 0.3) (OPT)GUIDE, VALVE (OS 0.3) (OPT)
-
409103-06304 BOLT (6X50)BOLT (6X50)
-
509103-06305 BOLT (6X55)BOLT (6X55)
-
607130-0680B BOLTBOLT
-
711123-38A00 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
811141-41F00 GASKET, CYLINDER HEAD FRONTGASKET, CYLINDER HEAD FRONT
-
909103-08370 BOLT (8X250)BOLT (8X250)
-
1009103-10133 BOLT (10X155)BOLT (10X155)
-
1109103-10134 BOLT (10X165)BOLT (10X165)
-
1209160-08130 WASHER (8.5X24X1.6)WASHER (8.5X24X1.6)
-
1309160-10039 WASHER (10.5X22X2.3)WASHER (10.5X22X2.3)
-
1401547-0625A BOLTBOLT
-
1501547-0630A BOLTBOLT
-
1601547-0640A BOLTBOLT
-
1704211-13189 KNOCK PINKNOCK PIN
-
1807120-0630A BOLTBOLT
-
1911171-41FA0 CAP, CYLINDER HEAD COVER FLCAP, CYLINDER HEAD COVER FL
-
2011172-41F00 CAP, CYLINDER HEAD COVER FRCAP, CYLINDER HEAD COVER FR
-
2111175-38A11 CAP, INSPECTION INTAKECAP, INSPECTION INTAKE
-
2211176-38A11 CAP, INSPECTION EXHAUSTCAP, INSPECTION EXHAUST
-
2311177-38A00 GASKET, INSPECTION CAPGASKET, INSPECTION CAP
-
2411179-10F10 SPACER, HEAD COVER CAPSPACER, HEAD COVER CAP
-
2509108-06102 STUD BOLTSTUD BOLT
-
2609160-06084 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
2709160-09016 WASHER (9.5X20X1)WASHER (9.5X20X1)
-
2809241-30004 PLUG (OD:30)PLUG (OD:30)
-
2909320-09016 CUSHIONCUSHION
-
3009320-13015 CUSHIONCUSHION
-
3101547-0620A BOLTBOLT
-
3201547-06557 BOLTBOLT
-
3309159-06093 NUTNUT
-
34-109482-00398 SPARK PLUG (DR7EA) (NGK)SPARK PLUG (DR7EA) (NGK)
-
34-209482-00222 SPARK PLUG (X22ESR-U) (DENSO)SPARK PLUG (X22ESR-U) (DENSO)
-
34-309482-00223 SPARK PLUG (X24ESR-U) (DENSO) (OPT)SPARK PLUG (X24ESR-U) (DENSO) (OPT)
-
34-409482-00224 SPARK PLUG (X27ESR-U) (DENSO) (OPT)SPARK PLUG (X27ESR-U) (DENSO) (OPT)
-
34-509482-00399 SPARK PLUG (DR8EA) (NGK) (OPT)SPARK PLUG (DR8EA) (NGK) (OPT)
-
34-609482-00400 SPARK PLUG (DR9EA) (NGK) (OPT)SPARK PLUG (DR9EA) (NGK) (OPT)
-
3511181-41F00 UNION, CYLINDER HEAD OUTLETUNION, CYLINDER HEAD OUTLET
-
3611182-38A00 O RING, OUTLET UNIONO RING, OUTLET UNION
-
3707130-0620A BOLTBOLT
-
3809301-08007 BUSHBUSH
-
3917891-41F10 UNION, CYLINDER HEAD JOINTUNION, CYLINDER HEAD JOINT
-
4007130-0612A BOLTBOLT
-
4109280-16005 O RING (D:2.4,ID:15.8)O RING (D:2.4,ID:15.8)
-
4217854-41F01 HOSE, HEAD JOINTHOSE, HEAD JOINT
-
4309402-28513 CLAMPCLAMP
-
4413650-57F00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
4509168-12017 GASKET (12X17X1)GASKET (12X17X1)
