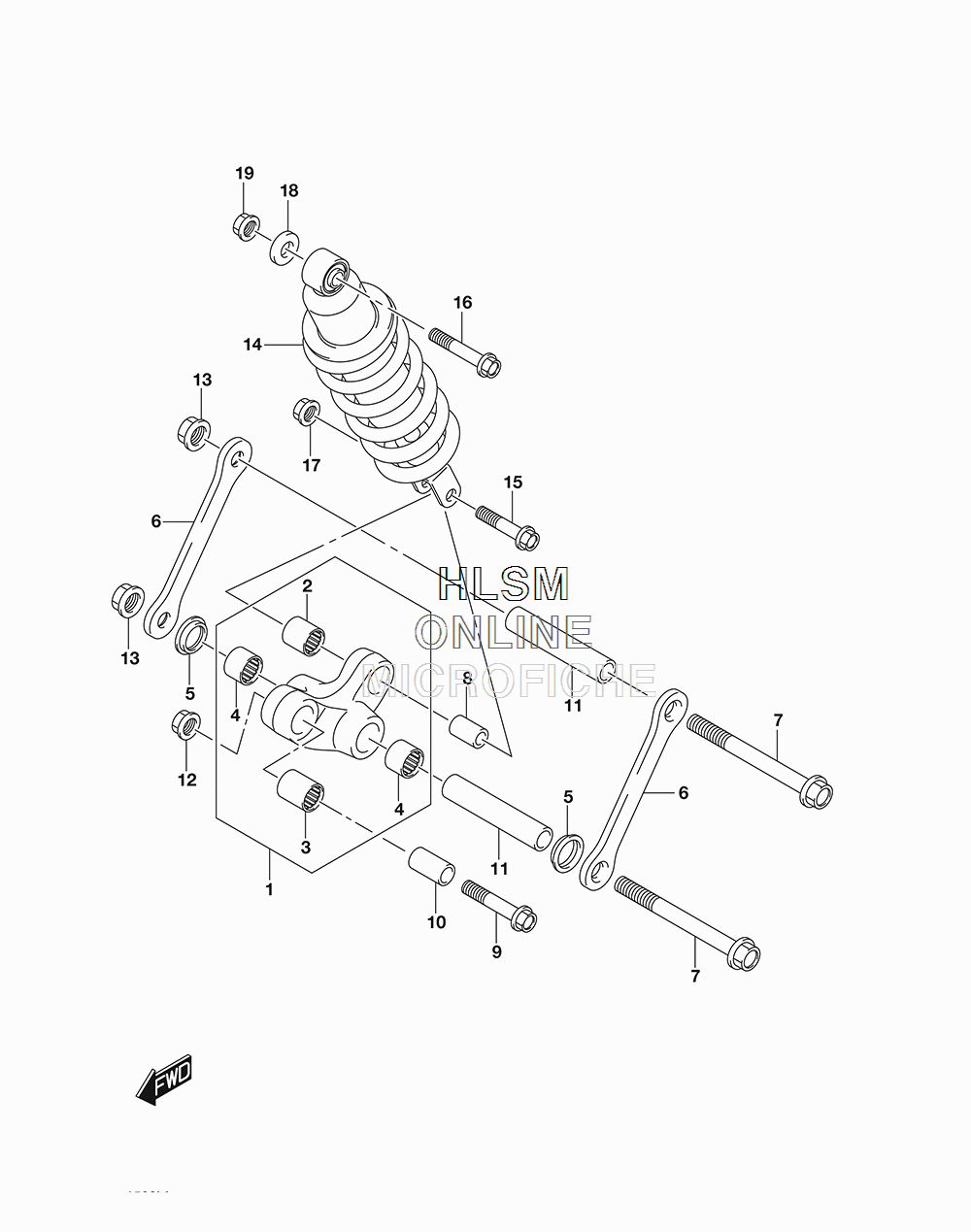

SUSPENSION - REAR CUSHION LEVER (CANADA) для Suzuki VL1500B C90 - 2018 года выпуска
-
№АртикулНазвание
-
162600-06880 LEVER, REAR CUSHIONLEVER, REAR CUSHION
-
209263-20064 ...BEARING (20X27X26)...BEARING (20X27X26)
-
309263-20074 ...BEARING (20X27X32)...BEARING (20X27X32)
-
409263-22062 ...BEARING (22X28X20)...BEARING (22X28X20)
-
562624-37E00 SEAL, CUSHION LEVER CENTERSEAL, CUSHION LEVER CENTER
-
662641-06J00 ROD, REAR CUSHIONROD, REAR CUSHION
-
762658-44G10 BOLT, REAR CUSHION RODBOLT, REAR CUSHION ROD
-
862684-01D00 SPACER, CUSHION LEVER REARSPACER, CUSHION LEVER REAR
-
909103-14016 BOLT (14X66)BOLT (14X66)
-
1009180-14014 SPACER (14X20X34)SPACER (14X20X34)
-
1109180-16049 SPACER (16X22X105)SPACER (16X22X105)
-
1208319-3114A NUTNUT
-
1308319-3116A NUTNUT
-
1462100-06JB0-019 ABSORBER ASSY, REAR SHOCK (019 - BLACK)ABSORBER ASSY, REAR SHOCK (019 - BLACK)
-
1562668-42A02 BOLT, LOWERBOLT, LOWER
-
1662658-27C10 BOLT, UPPERBOLT, UPPER
-
1708319-3112A NUT (LOWER)NUT (LOWER)
-
1809180-12157 SPACER (12.1X25X14.5)SPACER (12.1X25X14.5)
-
1909159-12056 NUT (UPPER)NUT (UPPER)
