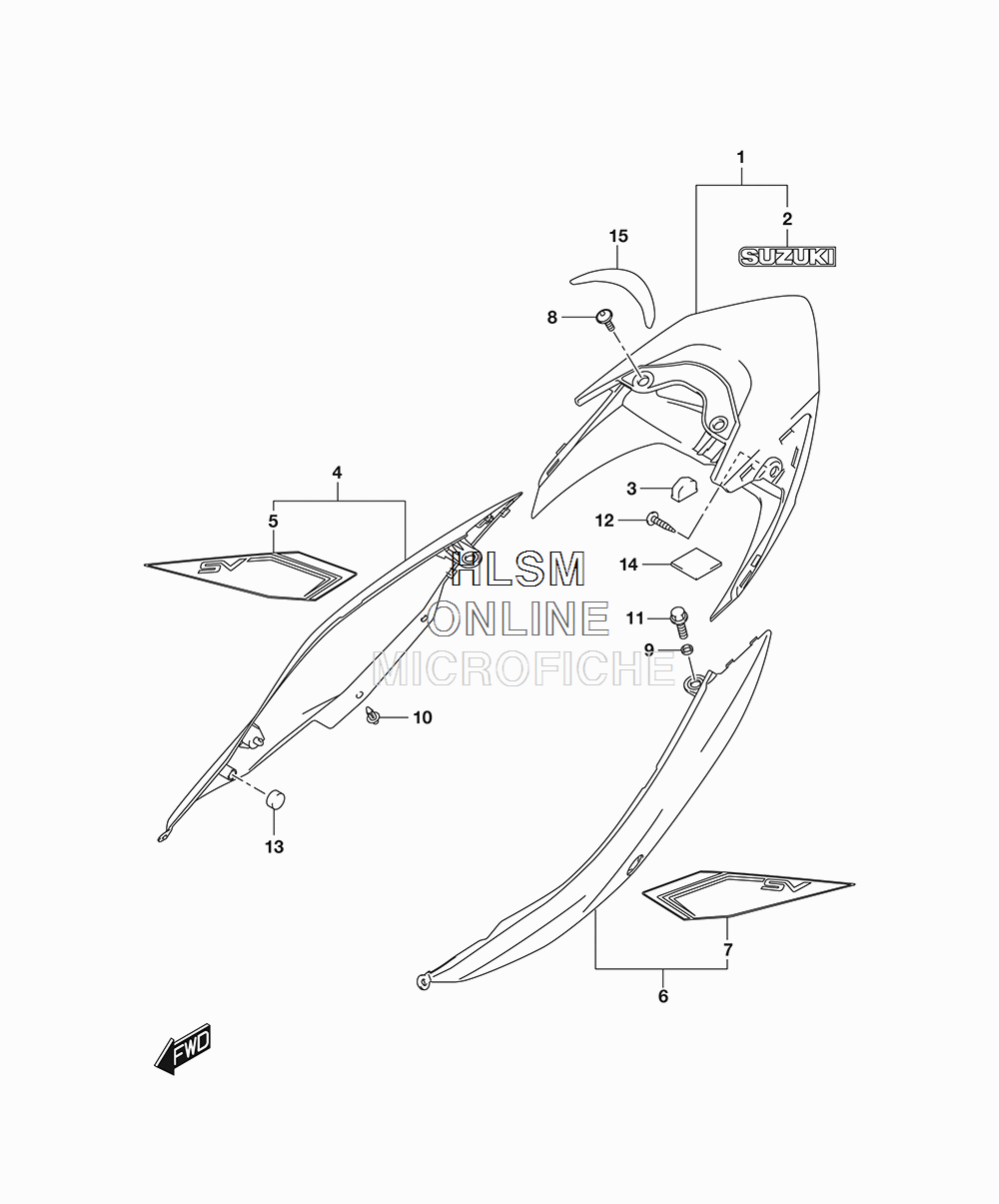

FRAME COVER (CALIF.) (BLUE/WHITE) для Suzuki SV650 - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    47310-18K00-YSF COVER, FRAME REAR CENTER (YSF - BLUE FOR AGQ - BLUE/WHITE)
    COVER, FRAME REAR CENTER (YSF - BLUE FOR AGQ - BLUE/WHITE)
  • 2
    68171-28H10-BPD ...EMBLEM, "SUZUKI" (BPD - SILVER/BLUE FOR COVER YSF FOR BIKE AGQ - BLUE/WHITE))
    ...EMBLEM, "SUZUKI" (BPD - SILVER/BLUE FOR COVER YSF FOR BIKE AGQ - BLUE/WHITE))
  • 3
    47315-18K00 CUSHION, FRAME COVER CENTER
    CUSHION, FRAME COVER CENTER
  • 4
    47410-18K10-YWW COVER, FRAME REAR (RH) (YWW - WHITE FOR AGQ - BLUE/WHITE)
    COVER, FRAME REAR (RH) (YWW - WHITE FOR AGQ - BLUE/WHITE)
  • 5
    68135-18K00-BPC ...TAPE SET, FRAME COVER (RH) (BPC - BLACK/BLUE/WHITE/SILVER FOR YWW FOR BIKE AGQ - BLUE/WHITE)
    ...TAPE SET, FRAME COVER (RH) (BPC - BLACK/BLUE/WHITE/SILVER FOR YWW FOR BIKE AGQ - BLUE/WHITE)
  • 6
    47510-18K10-YWW COVER, FRAME REAR (LH) (YWW - WHITE FOR AGQ - BLUE/WHITE)
    COVER, FRAME REAR (LH) (YWW - WHITE FOR AGQ - BLUE/WHITE)
  • 7
    68145-18K00-BPC ...TAPE SET, FRAME COVER (LH) (BPC - BLACK/BLUE/WHITE/SILVER FOR YWW FOR BIKE AGQ - BLUE/WHITE)
    ...TAPE SET, FRAME COVER (LH) (BPC - BLACK/BLUE/WHITE/SILVER FOR YWW FOR BIKE AGQ - BLUE/WHITE)
  • 8
    09139-05074 BOLT (5X13)
    BOLT (5X13)
  • 9
    09180-08052 SPACER (8.5X12X2.5)
    SPACER (8.5X12X2.5)
  • 10
    09409-06314 CLIP
    CLIP
  • 11
    01550-0812A BOLT
    BOLT
  • 12
    03541-0510A SCREW
    SCREW
  • 13
    09329-14002 CUSHION
    CUSHION
  • 14
    33652-20C00 CUSHION (CUT AS REQUIRED)
    CUSHION (CUT AS REQUIRED)
  • 15
    47312-18K00 TAPE, FRAME COVER REAR CENTER
    TAPE, FRAME COVER REAR CENTER
