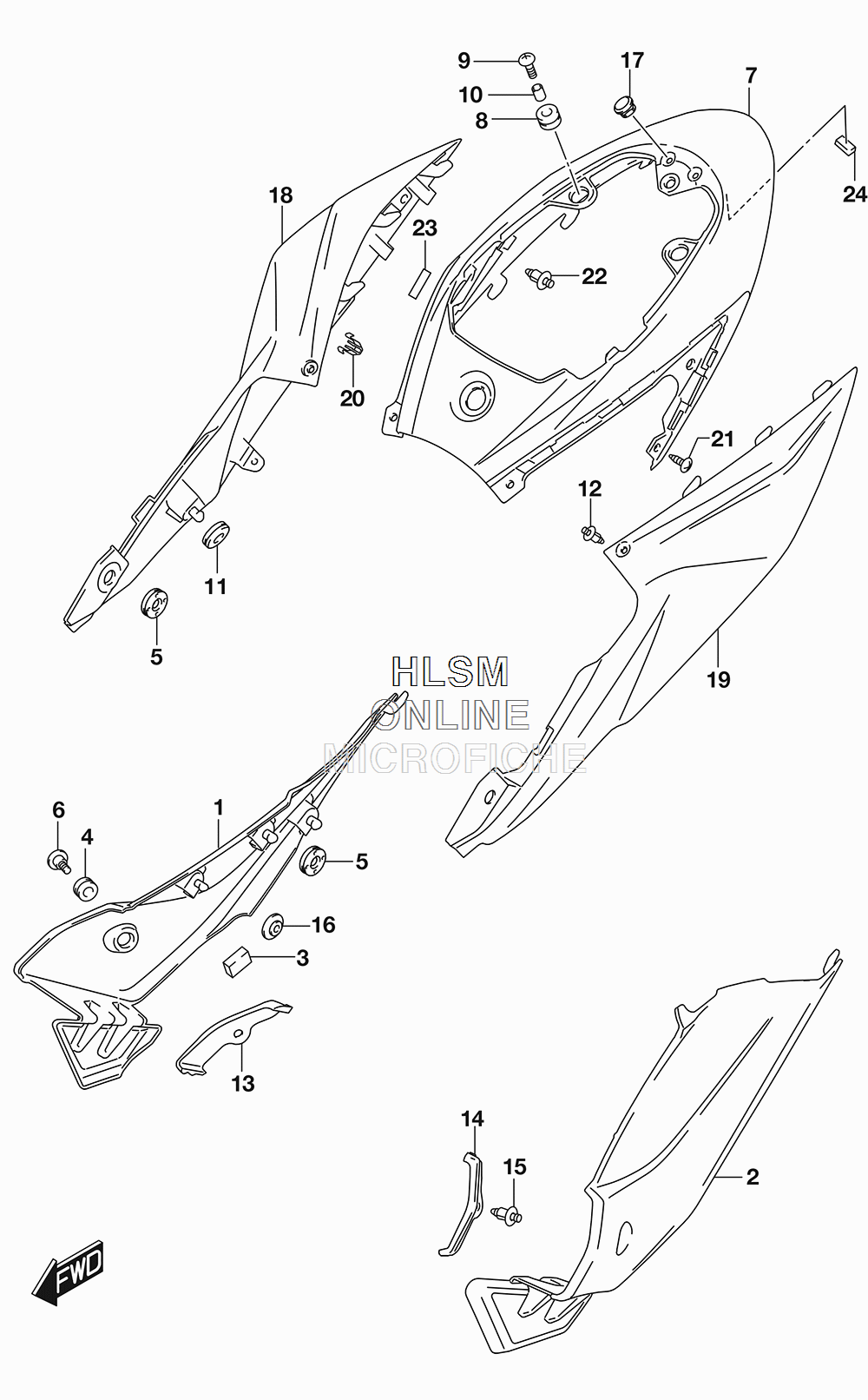

FRAME COVER (RED) для Suzuki GSX-S750Z - 2018 года выпуска`
-
№АртикулНазвание
-
147511-13K00 COVER, FRAME FRONT (RH)COVER, FRAME FRONT (RH)
-
247611-13K00 COVER, FRAME FRONT (LH)COVER, FRAME FRONT (LH)
-
394422-06G00 CUSHIONCUSHION
-
409320-09016 CUSHIONCUSHION
-
509320-08028 CUSHIONCUSHION
-
647118-08J00 SCREW, FRAME COVER FRONTSCREW, FRAME COVER FRONT
-
747311-13K00-YKV COVER, FRAME CENTER (YKV - BLACK)COVER, FRAME CENTER (YKV - BLACK)
-
847312-37H00 CUSHIONCUSHION
-
909136-06105 SCREW (6X20)SCREW (6X20)
-
1009180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1109320-08018 CUSHIONCUSHION
-
1209409-06314-5PK CLIP (5PK - BLACK)CLIP (5PK - BLACK)
-
1347711-08J00 COVER, FRAME TOP (RH)COVER, FRAME TOP (RH)
-
1447811-08J00 COVER, FRAME TOP (LH)COVER, FRAME TOP (LH)
-
1509409-07333 CLIPCLIP
-
1609320-06026 CUSHIONCUSHION
-
1745148-27J00 CUSHION, SEAT MOUNTCUSHION, SEAT MOUNT
-
1847110-13K00-YVZ COVER, FRAME (RH) (YVZ - RED)COVER, FRAME (RH) (YVZ - RED)
-
1947210-13K00-YVZ COVER, FRAME (LH) (YVZ - RED)COVER, FRAME (LH) (YVZ - RED)
-
2009409-08326 CLIPCLIP
-
2103541-0512B SCREWSCREW
-
2209409-07333 CLIPCLIP
-
2344894-24A00 CUSHION, FRAME COVER CTR NO.2CUSHION, FRAME COVER CTR NO.2
-
2463211-26G00 CUSHION, FRAME COVER CTR NO.3CUSHION, FRAME COVER CTR NO.3
