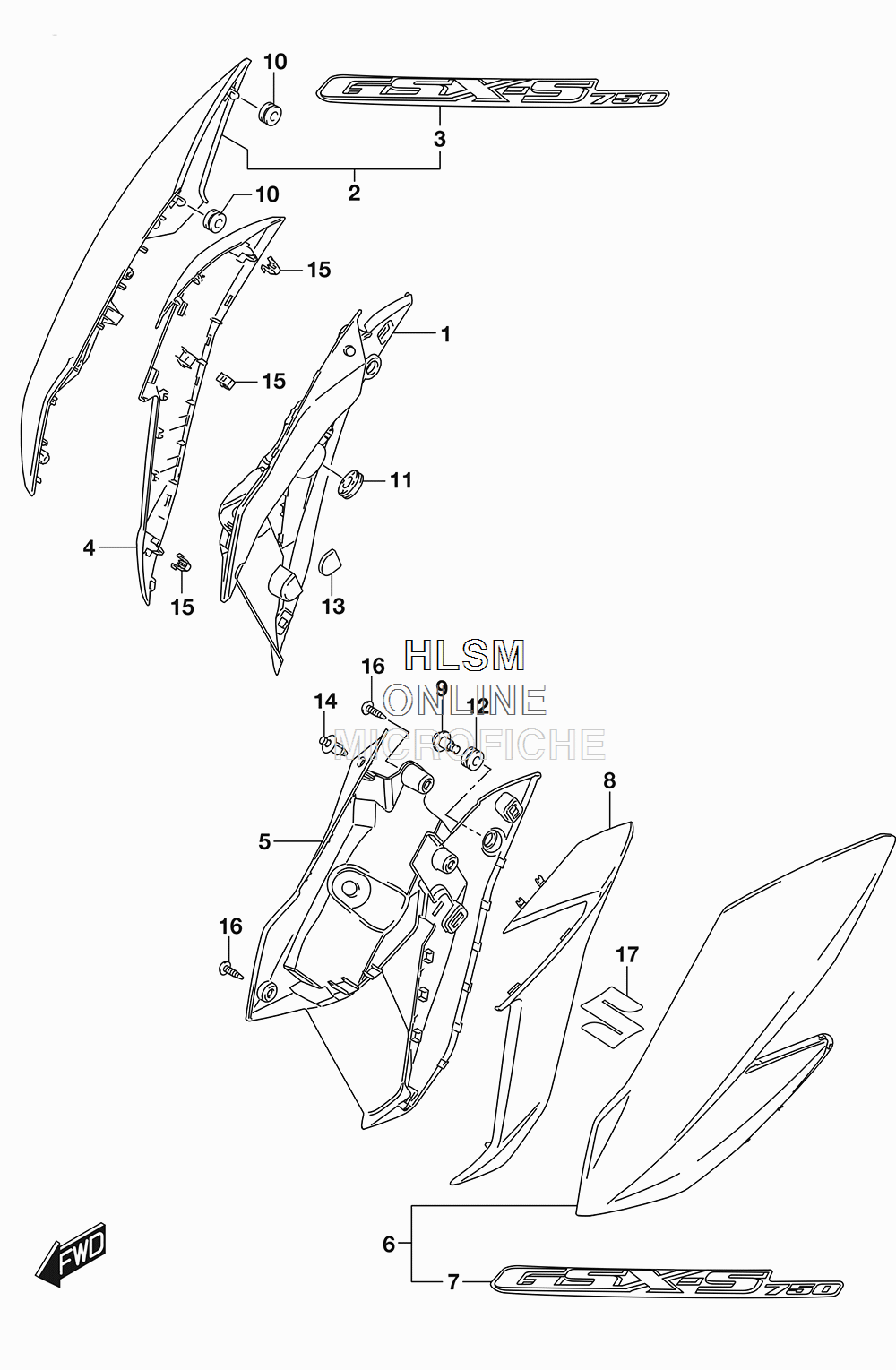

FRAME BODY COVER (RED/BLUE/BLACK) для Suzuki GSX-S750 - 2018 года выпуска
-
№АртикулНазвание
-
147531-13K00 COVER, FRAME BODY INNER (RH)COVER, FRAME BODY INNER (RH)
-
2-147530-13K00-YVZ COVER, FRAME BODY UPPER (RH) (YVZ - RED FOR YVZ - RED)COVER, FRAME BODY UPPER (RH) (YVZ - RED FOR YVZ - RED)
-
2-247530-13K00-YVB COVER, FRAME BODY UPPER (RH) (YVB - BLACK FOR KEL - BLUE/BLACK)COVER, FRAME BODY UPPER (RH) (YVB - BLACK FOR KEL - BLUE/BLACK)
-
368131-13K00-BGN ...EMBLEM, FRAME BODY COVER (RH) (BGN - SILVER/RED/BLACK)...EMBLEM, FRAME BODY COVER (RH) (BGN - SILVER/RED/BLACK)
-
4-147533-13K00-YKV COVER, FRAME BODY LOWER (RH) (YKV - BLACK FOR YVZ - RED)COVER, FRAME BODY LOWER (RH) (YKV - BLACK FOR YVZ - RED)
-
4-247533-13K00-YSF COVER, FRAME BODY LOWER (RH) (YSF - BLUE FOR KEL - BLUE BLACK)COVER, FRAME BODY LOWER (RH) (YSF - BLUE FOR KEL - BLUE BLACK)
-
547541-13K00 COVER, FRAME BODY INNER (LH)COVER, FRAME BODY INNER (LH)
-
6-147540-13K00-YVZ COVER, FRAME BODY UPPER (LH) (YVZ - RED FOR YVZ - RED)COVER, FRAME BODY UPPER (LH) (YVZ - RED FOR YVZ - RED)
-
6-247540-13K00-YVB COVER, FRAME BODY UPPER (LH) (YVB - BLACK FOR KEL - BLUE/BLACK)COVER, FRAME BODY UPPER (LH) (YVB - BLACK FOR KEL - BLUE/BLACK)
-
768141-13K00-BGN ...EMBLEM, FRAME BODY COVER (LH) (BGN - SILVER/RED/BLACK)...EMBLEM, FRAME BODY COVER (LH) (BGN - SILVER/RED/BLACK)
-
8-147543-13K00-YKV COVER, FRAME BODY LOWER (LH) (YKV - BLACK FOR YVZ - RED)COVER, FRAME BODY LOWER (LH) (YKV - BLACK FOR YVZ - RED)
-
8-247543-13K00-YSF COVER, FRAME BODY LOWER (LH) (YSF - BLUE FOR KEL - BLUE/BLACK)COVER, FRAME BODY LOWER (LH) (YSF - BLUE FOR KEL - BLUE/BLACK)
-
909139-06190 BOLT (6X20)BOLT (6X20)
-
1009320-06504 CUSHIONCUSHION
-
1109320-08028 CUSHIONCUSHION
-
1209320-09016 CUSHIONCUSHION
-
1309329-18001 CUSHIONCUSHION
-
1409409-06314-5PK SCREW (5PK - BLACK)SCREW (5PK - BLACK)
-
1509409-08326 CLIPCLIP
-
1603541-0512A SCREWSCREW
-
1768111-47HA0 EMBLEM,SEMBLEM,S
