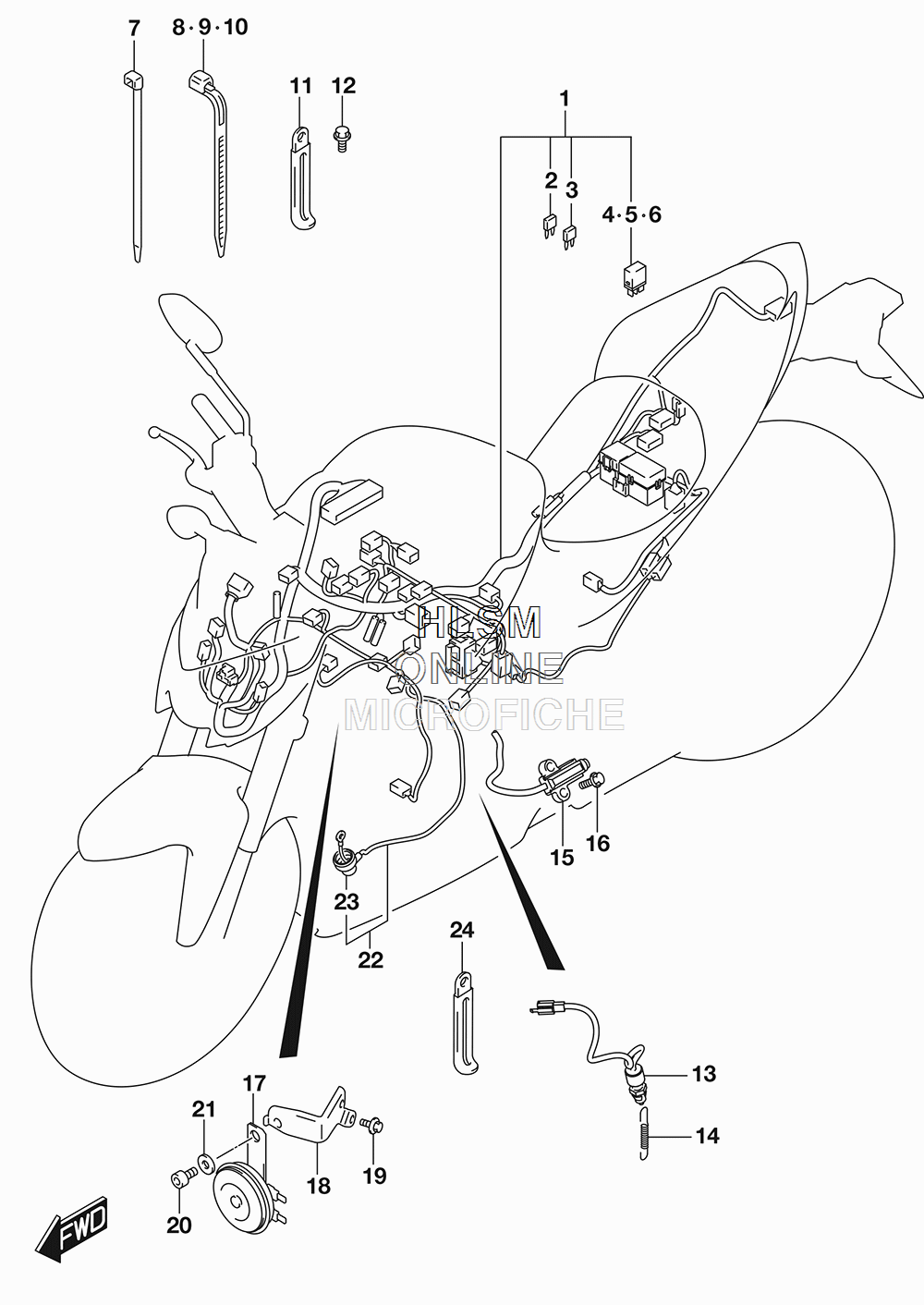

ELECTRICAL - WIRING HARNESS (CALIF.) для Suzuki GSX-S1000Z - 2018 года выпуска`
-
№АртикулНазвание
-
136610-38K00 HARNESS, WIRINGHARNESS, WIRING
-
209481-10504 ...FUSE (10A)...FUSE (10A)
-
309481-15504 ...FUSE (15A)...FUSE (15A)
-
438860-76F01 ...RELAY ASSY (FOR FUEL PUMP)...RELAY ASSY (FOR FUEL PUMP)
-
538860-76F01 ...RELAY ASSY (FOR FAN MOTOR)...RELAY ASSY (FOR FAN MOTOR)
-
638860-76F01 ...RELAY ASSY (FOR SIDE STAND)...RELAY ASSY (FOR SIDE STAND)
-
709407-14407 CLAMP (L:145)CLAMP (L:145)
-
809407-18402 CLAMP (L:165)CLAMP (L:165)
-
909407-19401 CLAMP (L:190)CLAMP (L:190)
-
1009407-14403 CLAMP (L:125)CLAMP (L:125)
-
1109404-06433 CLAMP (L:80)CLAMP (L:80)
-
1209139-06062 SCREW (6X12)SCREW (6X12)
-
1337740-31D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1409443-06054 SPRINGSPRING
-
1537840-35F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1601550-0620A BOLTBOLT
-
1738500-48G20 HORN ASSYHORN ASSY
-
1838590-04K10 PLATE, HORNPLATE, HORN
-
1909116-06006 BOLT (6X16)BOLT (6X16)
-
2007130-0812A BOLTBOLT
-
2109160-08127 WASHER (8.5X22X2)WASHER (8.5X22X2)
-
2236851-44G01 WIRE, OIL PRESSURE SWITCH LEAWIRE, OIL PRESSURE SWITCH LEA
-
2336618-31J00 ...CAP, OIL PRESSURE SWITCH...CAP, OIL PRESSURE SWITCH
-
2309404-06429 CLAMP (L:45)CLAMP (L:45)
