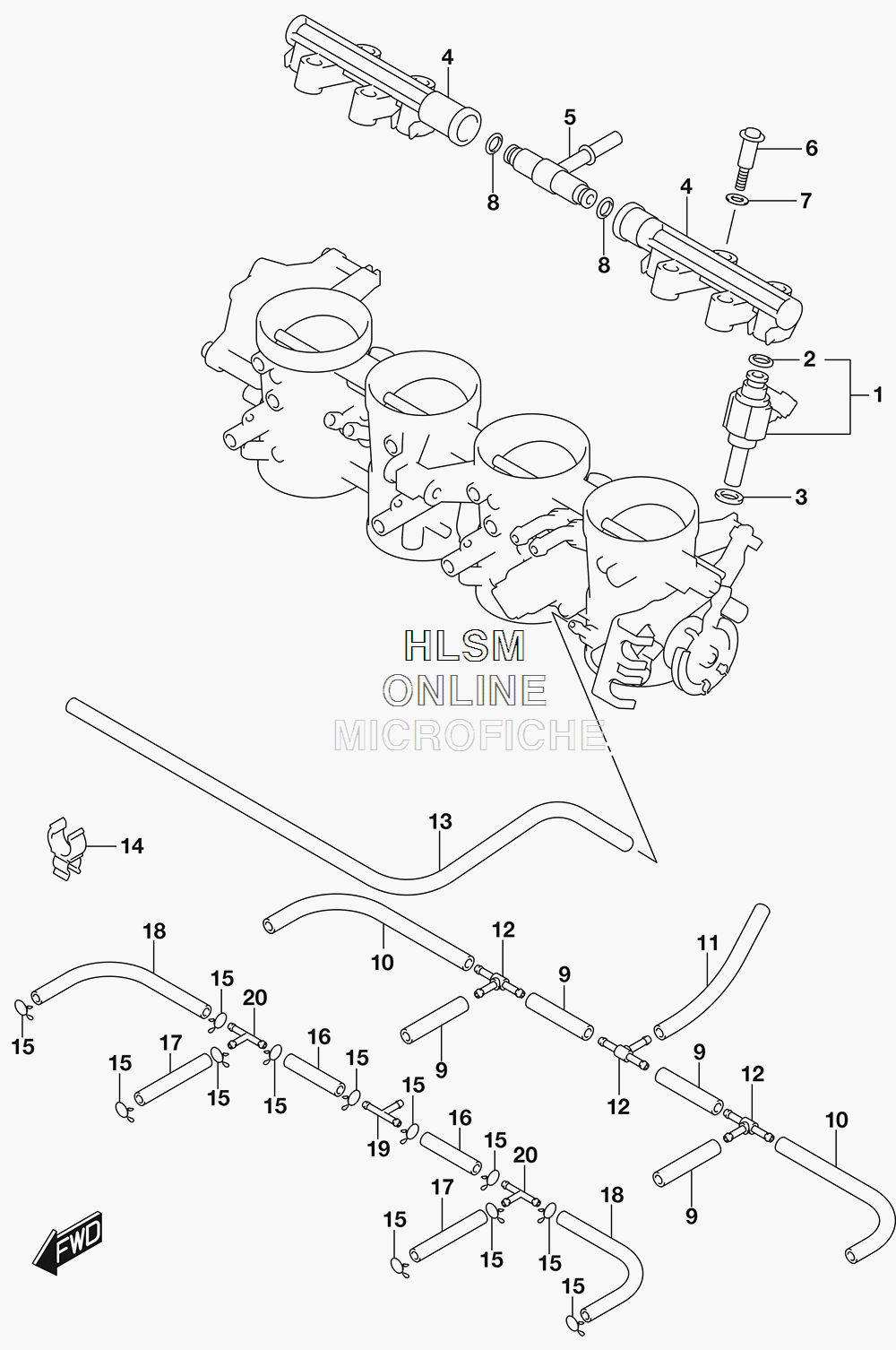

CARBURETOR - THROTTLE BODY HOSE/JOINT (CALIF.) для Suzuki GSX-S1000AZ - 2018 года выпуска
-
№АртикулНазвание
-
115710-04K00 INJECTOR ASSYINJECTOR ASSY
-
215717-58B00 ...O RING...O RING
-
315722-14J00 RING, SEALRING, SEAL
-
413473-08J00 PIPE, DELIVERYPIPE, DELIVERY
-
513473-04K00 NIPPLE ASSYNIPPLE ASSY
-
613601-29G00 SCREWSCREW
-
713602-29G00 PACKINGPACKING
-
815721-08J00 O RINGO RING
-
913681-39F00-035 HOSE (7.4X3.2X35)HOSE (7.4X3.2X35)
-
1013681-39F00-100 HOSE (7.4X3.2X100)HOSE (7.4X3.2X100)
-
1109355-30705-600 HOSE (3X7X600) (L:600->135)HOSE (3X7X600) (L:600->135)
-
1213685-02FA0 NIPPLENIPPLE
-
1313683-04K00 HOSE (7.4X3.2X350)HOSE (7.4X3.2X350)
-
1409408-00309 CLAMPCLAMP
-
1509401-06101 CLIPCLIP
-
1613683-04K60 HOSEHOSE
-
1713683-04K50 HOSE (7.5X3.5X55)HOSE (7.5X3.5X55)
-
1813683-04K40 HOSE (7.5X3.5X115)HOSE (7.5X3.5X115)
-
1913685-04F10 NIPPLENIPPLE
-
2013685-02FA0 NIPPLENIPPLE
