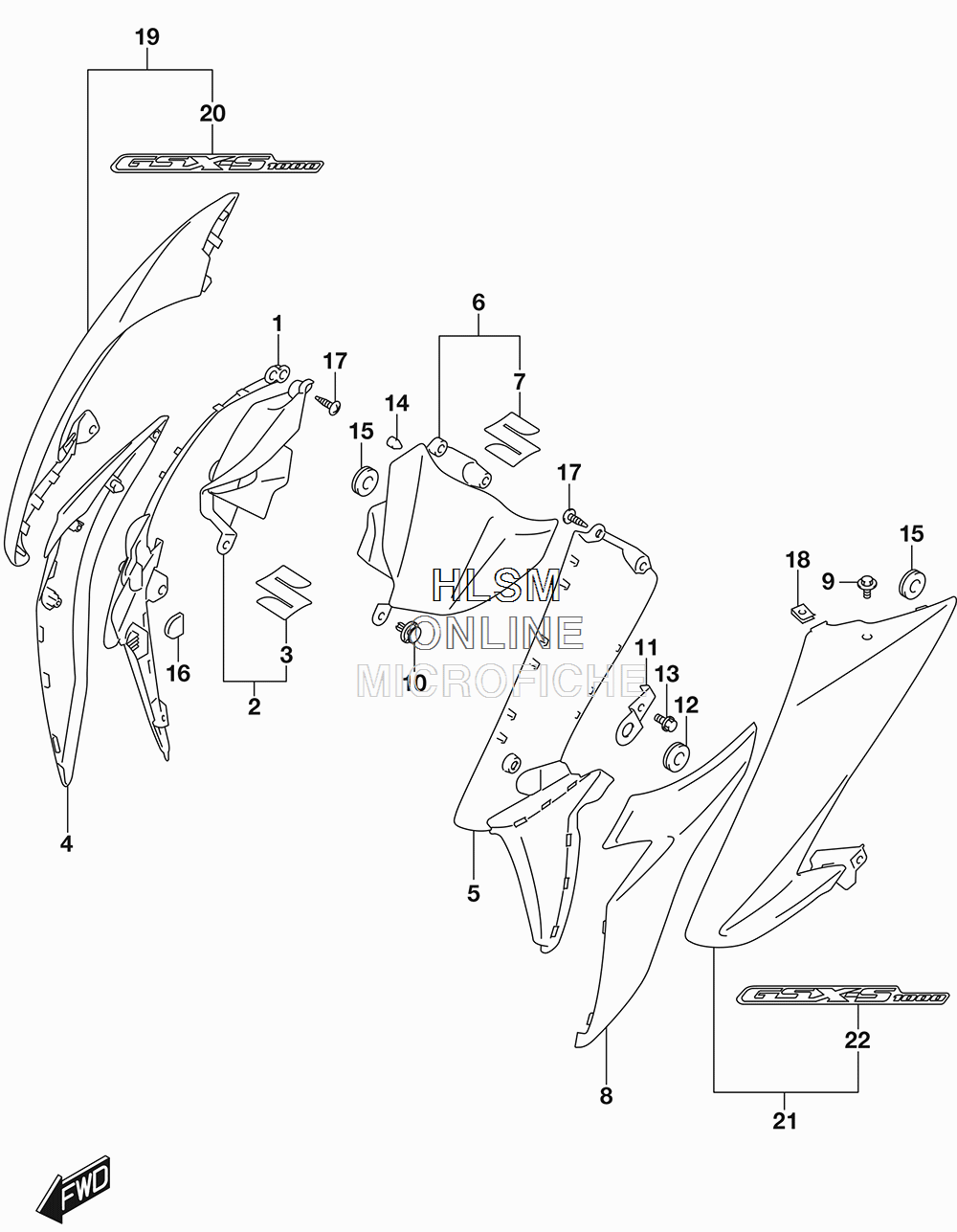

FRAME BODY COVER (CALIF.) для Suzuki GSX-S1000A ABS - 2018 года выпуска`
-
№АртикулНазвание
-
147531-04K00 COVER, FRAME BODY INNER (RH)COVER, FRAME BODY INNER (RH)
-
247570-04K00 COVER ASSY, INTAKE (RH)COVER ASSY, INTAKE (RH)
-
368111-47HA0 ...EMBLEM,S...EMBLEM,S
-
4-147533-04K00-YSF COVER, FRAME BODY LOWER (RH) (YSF - BLUE FOR KEL - BLUE/BLACK)COVER, FRAME BODY LOWER (RH) (YSF - BLUE FOR KEL - BLUE/BLACK)
-
4-247533-04K00-YYG COVER, FRAME BODY LOWER (RH) (YYG - RED FOR AV4 - RED/BLACK)COVER, FRAME BODY LOWER (RH) (YYG - RED FOR AV4 - RED/BLACK)
-
547541-04K00 COVER, FRAME BODY INNER (LH)COVER, FRAME BODY INNER (LH)
-
647580-04K00 COVER ASSY, INTAKE (LH)COVER ASSY, INTAKE (LH)
-
768111-47HA0 ...EMBLEM,S...EMBLEM,S
-
8-147543-04K00-YSF COVER, FRAME BODY LOWER (LH) (YSF - BLUE FOR KEL - BLUE/BLACK)COVER, FRAME BODY LOWER (LH) (YSF - BLUE FOR KEL - BLUE/BLACK)
-
8-247543-04K00-YYG COVER, FRAME BODY LOWER (LH) (YYG - RED FOR AV4 - RED/BLACK)COVER, FRAME BODY LOWER (LH) (YYG - RED FOR AV4 - RED/BLACK)
-
909139-05064 SCREW (5X13)SCREW (5X13)
-
1094479-35F00 CLIPCLIP
-
1147539-04K00 BRACKET, FRAME BODY COVERBRACKET, FRAME BODY COVER
-
1209320-08018 CUSHIONCUSHION
-
1301547-0612B BOLTBOLT
-
1409321-06013 CUSHIONCUSHION
-
1509320-06504 CUSHIONCUSHION
-
1609329-18001 CUSHIONCUSHION
-
1703541-0516A SCREWSCREW
-
1809148-05052 NUTNUT
-
1947510-04K00-YVB COVER, FRAME BODY (RH) (YVB - BLACK)COVER, FRAME BODY (RH) (YVB - BLACK)
-
2068131-04K00-A77 ...EMBLEM, FRAME BODY COVER (A77 - SILVER/RED/BLACK/BLACK)...EMBLEM, FRAME BODY COVER (A77 - SILVER/RED/BLACK/BLACK)
-
2147520-04K00-YVB COVER, FRAME BODY (LH) (YVB - BLACK)COVER, FRAME BODY (LH) (YVB - BLACK)
-
2268131-04K00-A77 ...EMBLEM, FRAME BODY COVER (A77 - SILVER/RED/BLACK/BLACK)...EMBLEM, FRAME BODY COVER (A77 - SILVER/RED/BLACK/BLACK)
