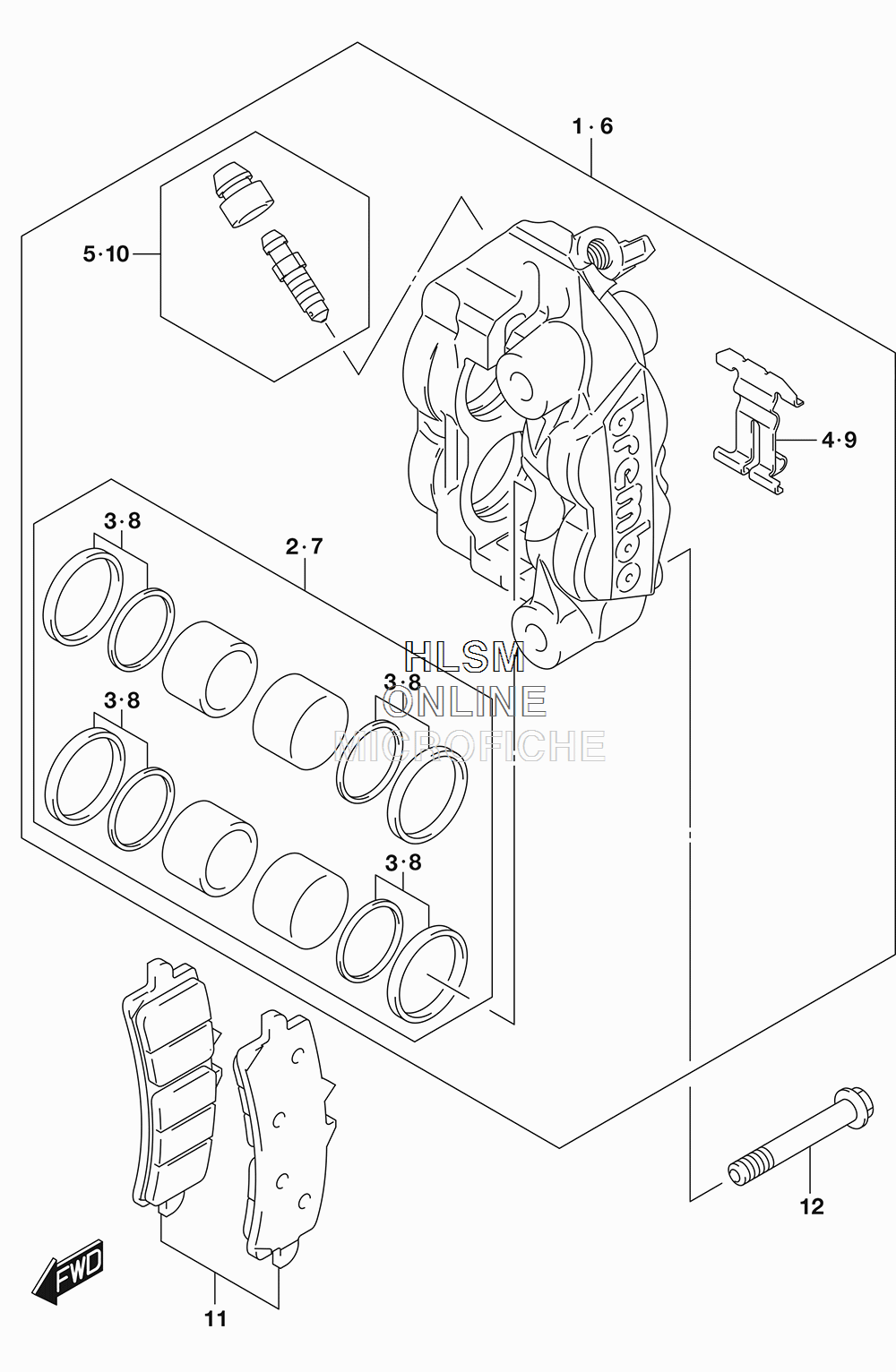

BRAKE - FRONT CALIPER для Suzuki GSX-S1000 - 2018 года выпуска

  • №
    Артикул
    Название
  • 1-1
    59100-14J40-999 CALIPER ASSY, FRONT (RH)
    CALIPER ASSY, FRONT (RH)
  • 1-2
    59110-14JB0 CALIPER ASSY, FRONT (RH) (OPT:BLUE)
    CALIPER ASSY, FRONT (RH) (OPT:BLUE)
  • 1-3
    59110-14JC0 CALIPER ASSY, FRONT (RH) (OPT:YELLOW)
    CALIPER ASSY, FRONT (RH) (OPT:YELLOW)
  • 1-4
    59110-14JD0 CALIPER ASSY, FRONT (RH) (OPT:RED)
    CALIPER ASSY, FRONT (RH) (OPT:RED)
  • 2
    59100-14810 ...PISTON SET
    ...PISTON SET
  • 3
    59100-14820 ......SEAL SET, PISTON
    ......SEAL SET, PISTON
  • 4
    59151-14J00 ...SPRING, PAD
    ...SPRING, PAD
  • 5
    59100-14840 ...BLEEDER SET
    ...BLEEDER SET
  • 6-1
    59300-14J40-999 CALIPER ASSY, FRONT (LH)
    CALIPER ASSY, FRONT (LH)
  • 6-2
    59310-14JB0 CALIPER ASSY, FRONT (LH) (OPT:BLUE)
    CALIPER ASSY, FRONT (LH) (OPT:BLUE)
  • 6-3
    59310-14JC0 CALIPER ASSY, FRONT (LH) (OPT:YELLOW)
    CALIPER ASSY, FRONT (LH) (OPT:YELLOW)
  • 6-4
    59310-14JD0 CALIPER ASSY, FRONT (LH) (OPT:RED)
    CALIPER ASSY, FRONT (LH) (OPT:RED)
  • 7
    59100-14810 ...PISTON SET
    ...PISTON SET
  • 8
    59100-14820 ......SEAL SET, PISTON
    ......SEAL SET, PISTON
  • 9
    59151-14J00 ...SPRING, PAD
    ...SPRING, PAD
  • 10
    59100-14840 ...BLEEDER SET
    ...BLEEDER SET
  • 11
    59100-14850 PAD & SHIM SET
    PAD & SHIM SET
  • 12
    09103-10450 BOLT (10X70)
    BOLT (10X70)
