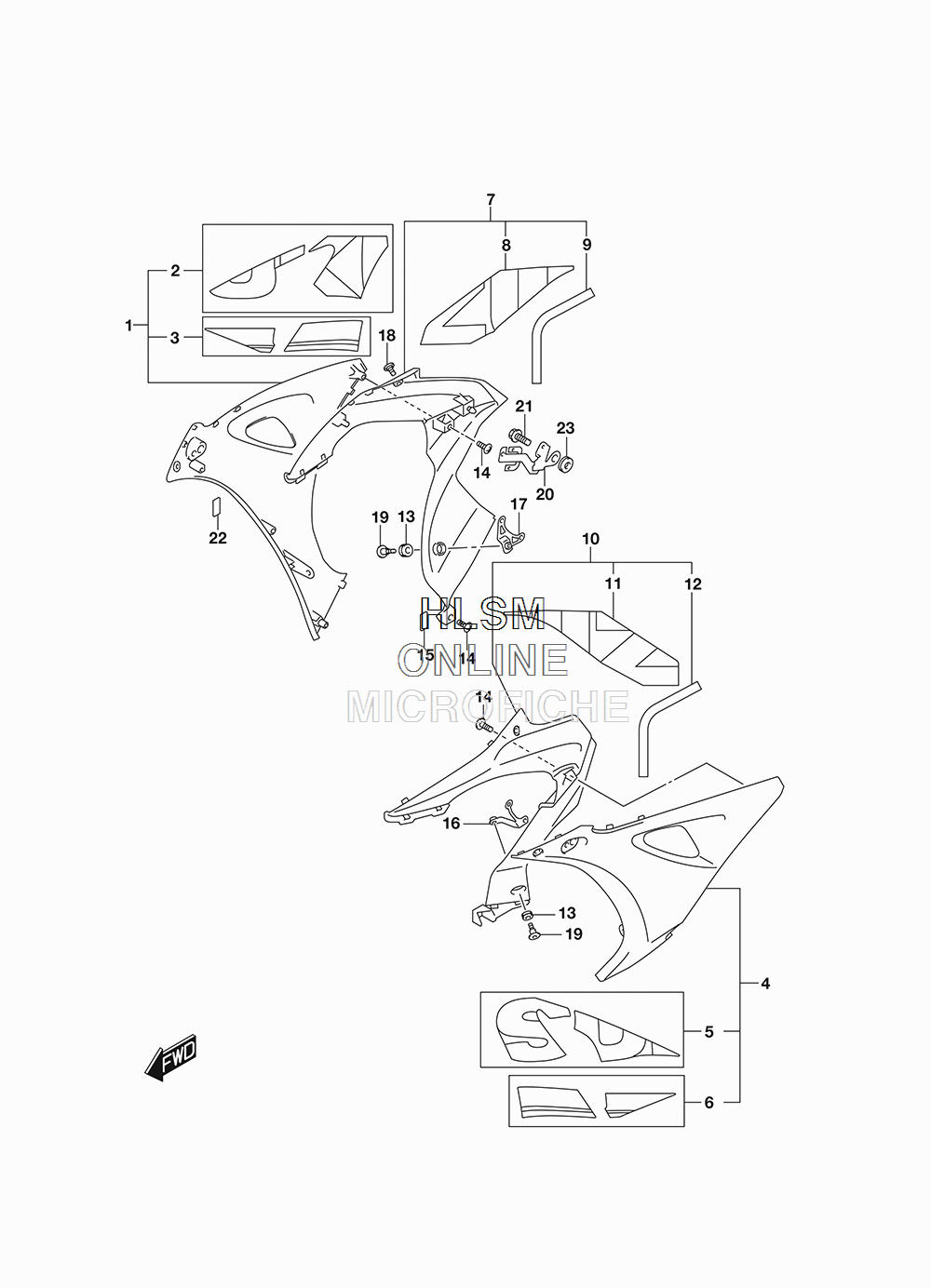

COWLING - SIDE (CANADA) для Suzuki GSX-R1000RZ - 2018 года выпуска
-
№АртикулНазвание
-
1-194470-17K10-YVB COWLING, SIDE (RH) (YVB - BLACK)COWLING, SIDE (RH) (YVB - BLACK)
-
1-294470-17K10-YWW COWLING, SIDE (RH) (YWW - WHITE)COWLING, SIDE (RH) (YWW - WHITE)
-
2-168685-17K10-KGL ...TAPE, SIDE COWLING UPPER (RH) (KGL - BLACK/BLACK FOR YVB - BLACK)...TAPE, SIDE COWLING UPPER (RH) (KGL - BLACK/BLACK FOR YVB - BLACK)
-
2-268685-17K10-BQS ...TAPE, SIDE COWLING UPPER (RH) (BQS - WHITE/GRAY FOR YWW - WHITE)...TAPE, SIDE COWLING UPPER (RH) (BQS - WHITE/GRAY FOR YWW - WHITE)
-
3-168685-17K20-BQM ...TAPE, SIDE COWLING LOWER (RH) (BQM - BLACK/WHITE/GRAY FOR YVB - BLACK)...TAPE, SIDE COWLING LOWER (RH) (BQM - BLACK/WHITE/GRAY FOR YVB - BLACK)
-
3-268685-17K20-BQL ...TAPE, SIDE COWLING LOWER (RH) (BQL - WHITE/GRAY/BLUE FOR YWW - WHITE)...TAPE, SIDE COWLING LOWER (RH) (BQL - WHITE/GRAY/BLUE FOR YWW - WHITE)
-
4-194480-17K10-YVB COWLING, SIDE (LH) (YVB - BLACK)COWLING, SIDE (LH) (YVB - BLACK)
-
4-294480-17K10-YWW COWLING, SIDE (LH) (YWW - WHITE)COWLING, SIDE (LH) (YWW - WHITE)
-
5-168695-17K10-KGL ...TAPE, SIDE COWLING UPPER (LH) (KGL - BLACK/BLACK FOR YVB - BLACK)...TAPE, SIDE COWLING UPPER (LH) (KGL - BLACK/BLACK FOR YVB - BLACK)
-
5-268695-17K10-BQS ...TAPE, SIDE COWLING UPPER (LH) (BQS - WHITE/GRAY FOR YWW - WHITE)...TAPE, SIDE COWLING UPPER (LH) (BQS - WHITE/GRAY FOR YWW - WHITE)
-
6-168695-17K20-BQM ...TAPE, SIDE COWLING LOWER (LH) (BQM - BLACK/WHITE/GRAY FOR YVB - BLACK)...TAPE, SIDE COWLING LOWER (LH) (BQM - BLACK/WHITE/GRAY FOR YVB - BLACK)
-
6-268695-17K20-BQL ...TAPE, SIDE COWLING LOWER (LH) (BQL - WHITE/GRAY/BLUE FOR YWW - WHITE)...TAPE, SIDE COWLING LOWER (LH) (BQL - WHITE/GRAY/BLUE FOR YWW - WHITE)
-
7-194450-17K10-YVB COWLING, SIDE REAR (RH) (YVB - BLACK)COWLING, SIDE REAR (RH) (YVB - BLACK)
-
7-294450-17K10-YWW COWLING, SIDE REAR (RH) (YWW - WHITE)COWLING, SIDE REAR (RH) (YWW - WHITE)
-
8-168680-17K00-KGL ...TAPE, SIDE COWLING REAR (RH) (KGL - BLACK/BLACK FOR YVB - BLACK)...TAPE, SIDE COWLING REAR (RH) (KGL - BLACK/BLACK FOR YVB - BLACK)
-
8-268680-17K00-BQS ...TAPE, SIDE COWLING REAR (RH) (BQS - WHITE/GRAY FOR YWW - WHITE)...TAPE, SIDE COWLING REAR (RH) (BQS - WHITE/GRAY FOR YWW - WHITE)
-
994477-17K00 ...CUSHION...CUSHION
-
10-194460-17K10-YVB COWLING, SIDE REAR (LH) (YVB - BLACK)COWLING, SIDE REAR (LH) (YVB - BLACK)
-
10-294460-17K10-YWW COWLING, SIDE REAR (LH) (YWW - WHITE)COWLING, SIDE REAR (LH) (YWW - WHITE)
-
11-168690-17K00-KGL ...TAPE, SIDE COWLING REAR (LH) (KGL - BLACK/BLACK FOR YVB - BLACK)...TAPE, SIDE COWLING REAR (LH) (KGL - BLACK/BLACK FOR YVB - BLACK)
-
11-268690-17K00-BQS ...TAPE, SIDE COWLING REAR (LH) (BQS - WHITE/GRAY FOR YWW - WHITE)...TAPE, SIDE COWLING REAR (LH) (BQS - WHITE/GRAY FOR YWW - WHITE)
-
1294487-17K00 ...CUSHION...CUSHION
-
1309320-09016 CUSHIONCUSHION
-
1403541-0516A SCREWSCREW
-
1594477-17K20 CUSHION, SIDE REAR (RH) NO.3CUSHION, SIDE REAR (RH) NO.3
-
1694520-17K00 BRACKET, UNDER COWL (LH)BRACKET, UNDER COWL (LH)
-
1794540-17K00 BRACKET, UNDER COWL (RH)BRACKET, UNDER COWL (RH)
-
1809139-05091 SCREWSCREW
-
1909139-06206 SCREWSCREW
-
2094530-17K00 BRACKET, SIDE COWL (RH)BRACKET, SIDE COWL (RH)
-
2101550-0625A BOLTBOLT
-
2236930-60A10 CUSHION, SIDE FRONTCUSHION, SIDE FRONT
-
2394478-14J00 CUSHION, UNDER COWLINGCUSHION, UNDER COWLING
