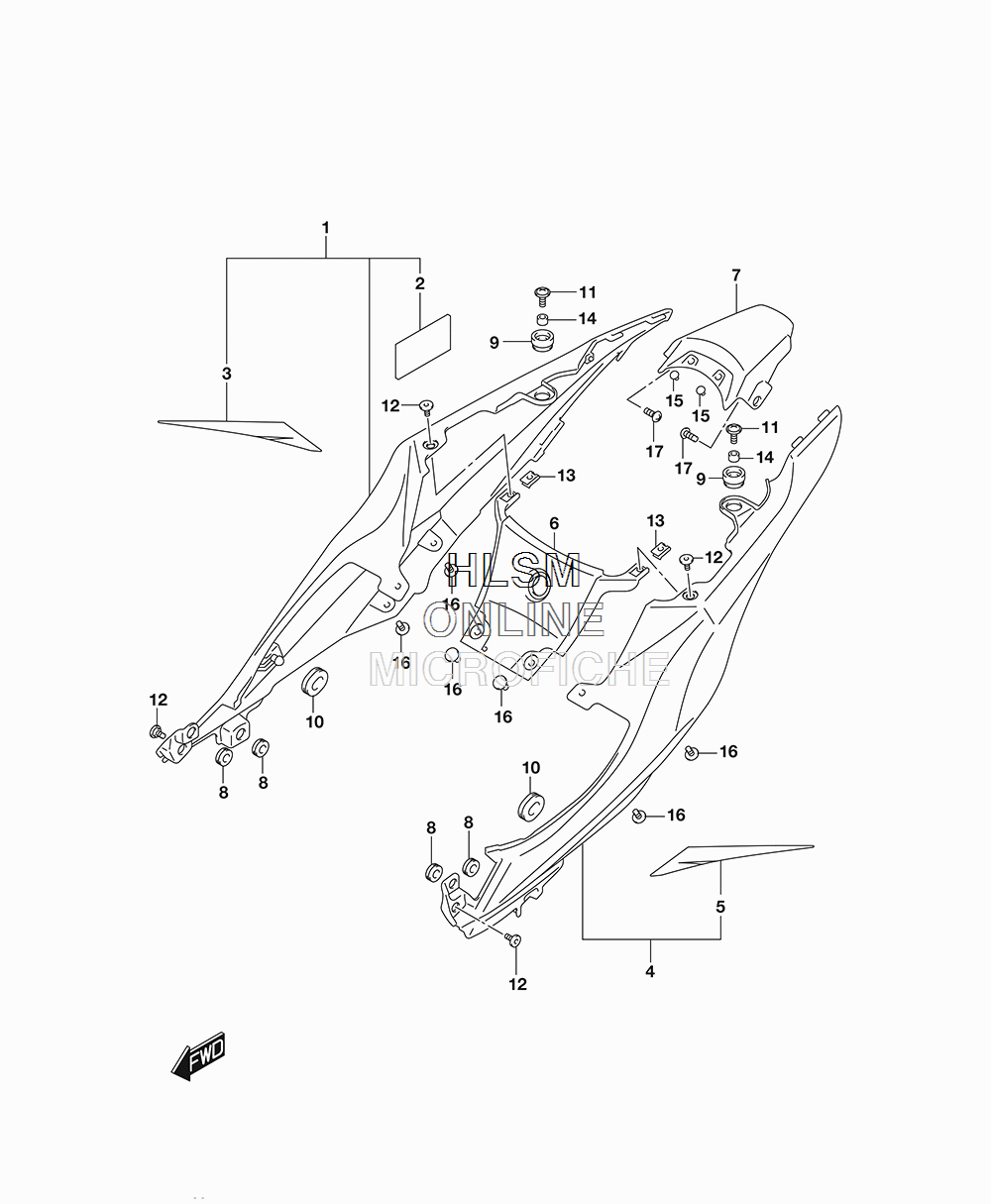

FRAME COVER (CALIF.) для Suzuki GSX-R1000 - 2018 года выпуска
-
№АртикулНазвание
-
1-147110-17K00-4UX COVER, FRAME (RH) (4UX - BLACK FOR YKV - BLACK)COVER, FRAME (RH) (4UX - BLACK FOR YKV - BLACK)
-
1-247110-17K10-YWW COVER, FRAME (RH) (YWW - WHITE FOR YWW - WHITE)COVER, FRAME (RH) (YWW - WHITE FOR YWW - WHITE)
-
233652-17K10 ...CUSHION...CUSHION
-
3-168135-17K00-FNF ...TAPE, FRAME COVER (RH) (FNF - BLUE/BLACK FOR COVER 4UX FOR BIKE YKV - BLACK)...TAPE, FRAME COVER (RH) (FNF - BLUE/BLACK FOR COVER 4UX FOR BIKE YKV - BLACK)
-
3-268135-17K10-BQL ...TAPE, FRAME COVER (RH) (BQL - WHITE/GRAY/BLUE FOR COVER YWW FOR BIKE KWW - WHITE)...TAPE, FRAME COVER (RH) (BQL - WHITE/GRAY/BLUE FOR COVER YWW FOR BIKE KWW - WHITE)
-
4-147210-17K00-4UX COVER, FRAME (LH) (4UX - BLACK FOR YKV - BLACK)COVER, FRAME (LH) (4UX - BLACK FOR YKV - BLACK)
-
4-247210-17K10-YWW COVER, FRAME (LH) (YWW - WHITE FOR YWW - WHITE)COVER, FRAME (LH) (YWW - WHITE FOR YWW - WHITE)
-
5-168145-17K00-FNF ...TAPE, FRAME COVER (RH) (FNF - BLUE/BLACK FOR COVER 4UX FOR BIKE YKV - BLACK)...TAPE, FRAME COVER (RH) (FNF - BLUE/BLACK FOR COVER 4UX FOR BIKE YKV - BLACK)
-
5-268145-17K10-BQL ...TAPE, FRAME COVER (RH) (BQL - WHITE/GRAY/BLUE FOR COVER YWW FOR BIKE KWW - WHITE)...TAPE, FRAME COVER (RH) (BQL - WHITE/GRAY/BLUE FOR COVER YWW FOR BIKE KWW - WHITE)
-
647311-17K00 COVER, FRAME CENTER FRONTCOVER, FRAME CENTER FRONT
-
7-147411-17K00-YKV COVER, FRAME CENTER REAR (YKV - BLACK)COVER, FRAME CENTER REAR (YKV - BLACK)
-
7-247411-17K00-YWW COVER, FRAME CENTER REAR (YWW - WHITE)COVER, FRAME CENTER REAR (YWW - WHITE)
-
844173-14J00 CUSHIONCUSHION
-
947312-37H00 CUSHION, FRAME COVER RRCUSHION, FRAME COVER RR
-
1094478-14J00 CUSHION, FRAME COVERCUSHION, FRAME COVER
-
1109139-06139 SCREW (6X16)SCREW (6X16)
-
1209139-05092 SCREWSCREW
-
1309148-05052 NUTNUT
-
1409180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1509250-06012 PLUG (OD:10)PLUG (OD:10)
-
1609409-06328 CLIPCLIP
-
1703541-0516A SCREWSCREW
