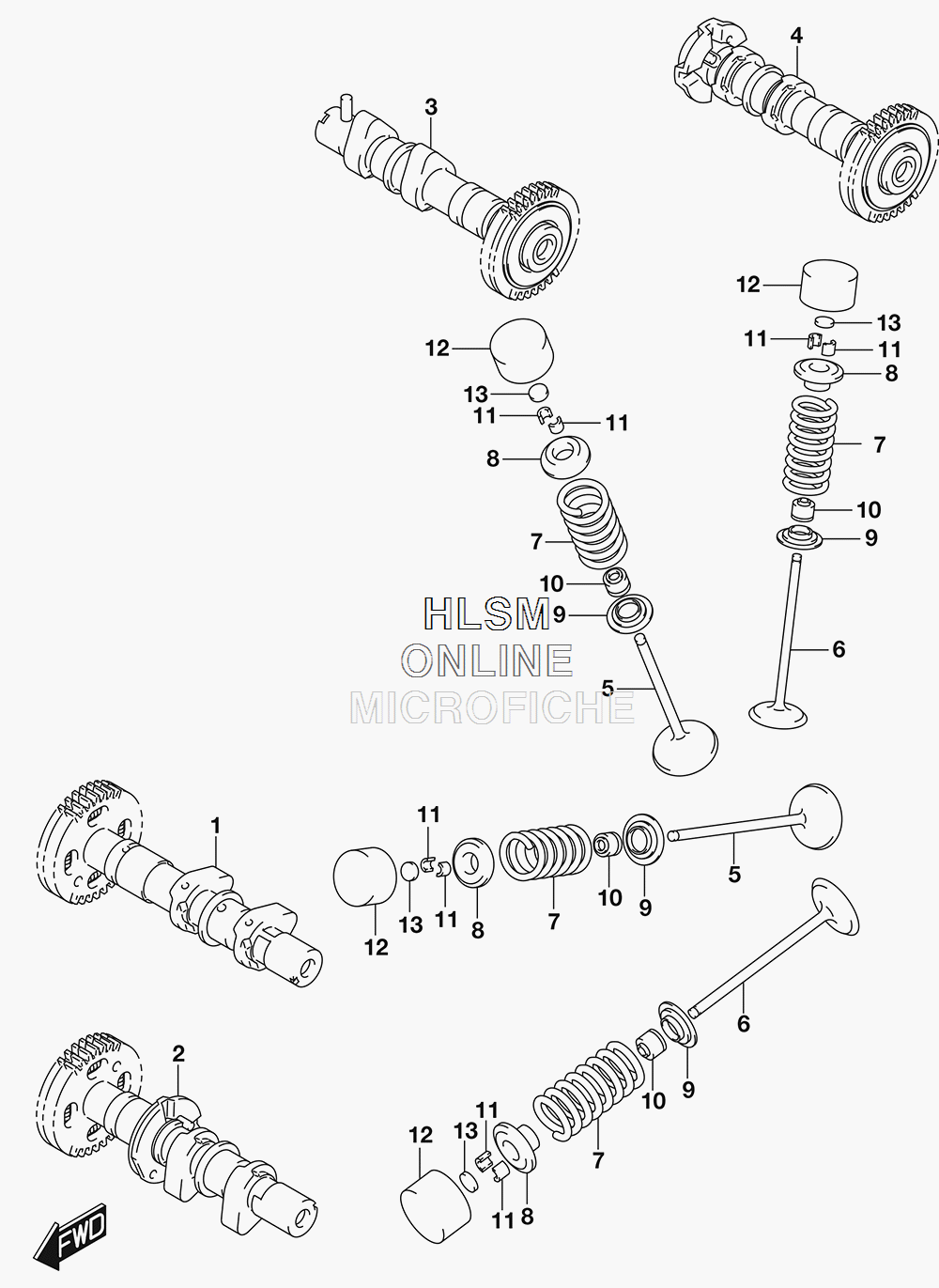

CAMSHAFT W/ VALVES для Suzuki DL1000A V-STORM 1000 - 2018 года выпуска`
-
№АртикулНазвание
-
112701-06G00 CAMSHAFT ASSY, INTAKE FRONTCAMSHAFT ASSY, INTAKE FRONT
-
212702-06G00 CAMSHAFT ASSY, EXHAUST FRONTCAMSHAFT ASSY, EXHAUST FRONT
-
312703-06G00 CAMSHAFT ASSY, INTAKE REARCAMSHAFT ASSY, INTAKE REAR
-
412704-06G00 CAMSHAFT ASSY, EXHAUST REARCAMSHAFT ASSY, EXHAUST REAR
-
512911-16G00 VALVE, INTAKEVALVE, INTAKE
-
612912-02F10 VALVE, EXHAUSTVALVE, EXHAUST
-
712921-06G00 SPRING VALVESPRING VALVE
-
812931-06G00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
912933-06G00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
1009289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
-
1112932-24400 COTTER, VALVECOTTER, VALVE
-
1212891-02F00 TAPPETTAPPET
-
13-112892-41C00-230 SHIM, TAPPET (T:2.30)SHIM, TAPPET (T:2.30)
-
13-212892-41C00-235 SHIM, TAPPET (T:2.35)SHIM, TAPPET (T:2.35)
-
13-312892-41C00-240 SHIM, TAPPET (T:2.40)SHIM, TAPPET (T:2.40)
-
13-412892-41C00-245 SHIM, TAPPET (T:2.45)SHIM, TAPPET (T:2.45)
-
13-512892-41C00-250 SHIM, TAPPET (T:2.50)SHIM, TAPPET (T:2.50)
-
13-612892-41C00-255 SHIM, TAPPET (T:2.55)SHIM, TAPPET (T:2.55)
-
13-712892-41C00-260 SHIM, TAPPET (T:2.60)SHIM, TAPPET (T:2.60)
-
13-812892-41C00-265 SHIM, TAPPET (T:2.65)SHIM, TAPPET (T:2.65)
-
13-912892-41C00-270 SHIM, TAPPET (T:2.70)SHIM, TAPPET (T:2.70)
-
13-1012892-41C00-275 SHIM, TAPPET (T:2.75)SHIM, TAPPET (T:2.75)
-
13-1112892-41C00-280 SHIM, TAPPET (T:2.80)SHIM, TAPPET (T:2.80)
-
13-1212892-41C00-285 SHIM, TAPPET (T:2.85)SHIM, TAPPET (T:2.85)
-
13-1312892-41C00-290 SHIM, TAPPET (T:2.90)SHIM, TAPPET (T:2.90)
-
13-1412892-41C00-295 SHIM, TAPPET (T:2.95)SHIM, TAPPET (T:2.95)
-
13-1512892-41C00-300 SHIM, TAPPET (T:3.00)SHIM, TAPPET (T:3.00)
-
13-1612892-41C00-305 SHIM, TAPPET (T:3.05)SHIM, TAPPET (T:3.05)
-
13-1712892-41C00-310 SHIM, TAPPET (T:3.10)SHIM, TAPPET (T:3.10)
-
13-1812892-41C00-315 SHIM, TAPPET (T:3.15)SHIM, TAPPET (T:3.15)
-
13-1912892-41C00-320 SHIM, TAPPET (T:3.20)SHIM, TAPPET (T:3.20)
-
13-2012892-41C00-325 SHIM, TAPPET (T:3.25)SHIM, TAPPET (T:3.25)
-
13-2112892-41C00-330 SHIM, TAPPET (T:3.30)SHIM, TAPPET (T:3.30)
-
13-2212892-41C00-335 SHIM, TAPPET (T:3.35)SHIM, TAPPET (T:3.35)
-
13-2312892-41C00-340 SHIM, TAPPET (T:3.40)SHIM, TAPPET (T:3.40)
-
13-2412892-41C00-345 SHIM, TAPPET (T:3.45)SHIM, TAPPET (T:3.45)
-
13-2512892-41C00-350 SHIM, TAPPET (T:3.50)SHIM, TAPPET (T:3.50)
-
1412800-41810 SHIM SET, TAPPET T:2.50, 2.55...3.45, 3.50 (5PCS.EACH) & CASE (OPT) (NOT ILLUSTRATED)SHIM SET, TAPPET T:2.50, 2.55...3.45, 3.50 (5PCS.EACH) & CASE (OPT) (NOT ILLUSTRATED)
-
1599000-69471 ...CASE, TAPPET SHIM (OPT) (NOT ILLUSTRATED)...CASE, TAPPET SHIM (OPT) (NOT ILLUSTRATED)
