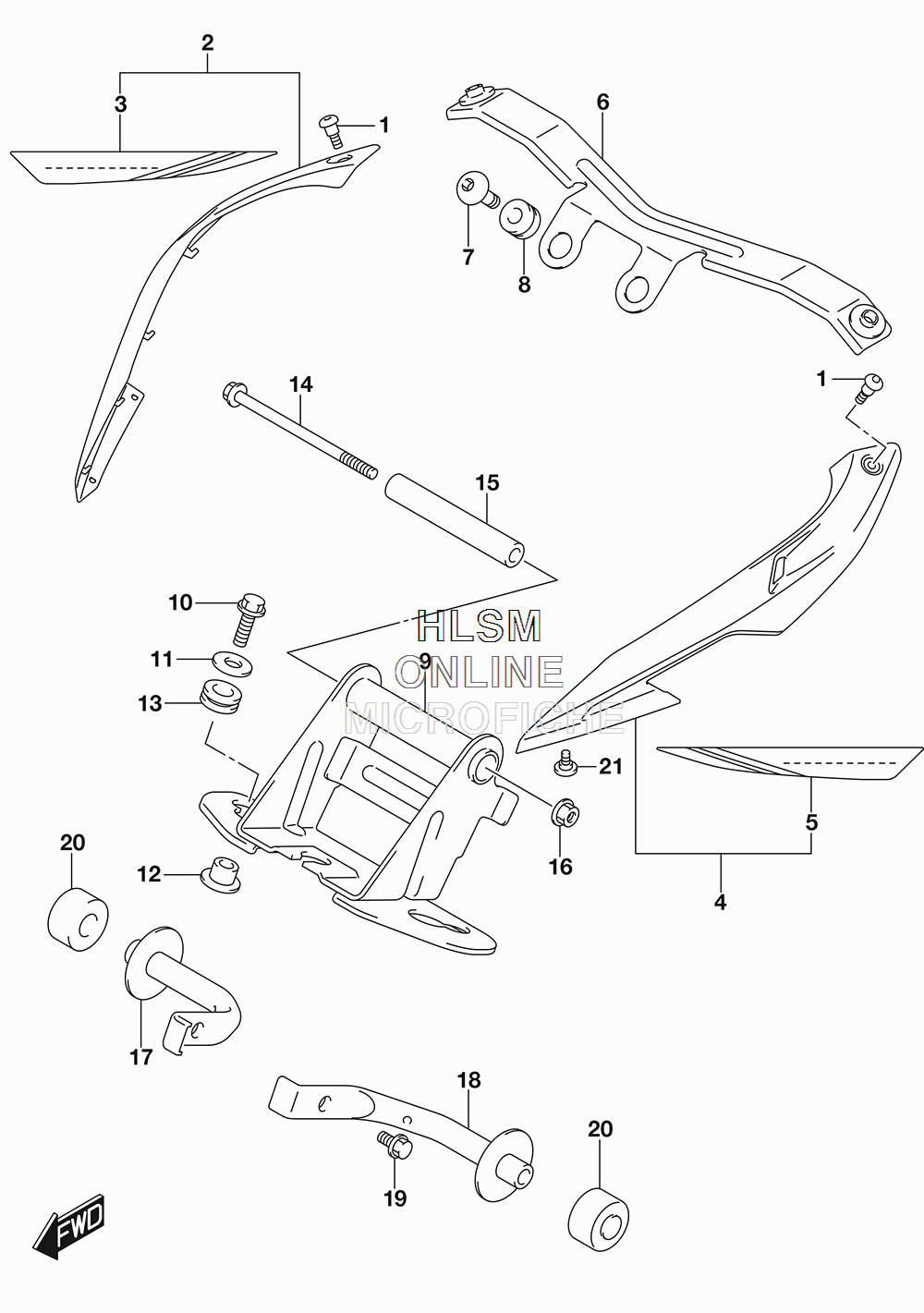

BRACKET SET - SIDE CASE (CALIF.) (YELLOW) для Suzuki DL1000A V-STORM 1000 - 2018 года выпуска`
-
№АртикулНазвание
-
144193-31J00 SCREWSCREW
-
294420-31J20-YMD COVER, SIDE REAR (RH) (YMD - SILVER)COVER, SIDE REAR (RH) (YMD - SILVER)
-
368275-31J00-BG5 ...TAPE, COVER SIDE (RH) (BG5 - WHITE/GRAY/GRAY/YELLOW)...TAPE, COVER SIDE (RH) (BG5 - WHITE/GRAY/GRAY/YELLOW)
-
494430-31J20-YMD COVER, SIDE REAR (LH) (YMD - SILVER)COVER, SIDE REAR (LH) (YMD - SILVER)
-
568285-31J00-BG5 ...TAPE, COVER SIDE (LH) (BG5 - WHITE/GRAY/GRAY/YELLOW)...TAPE, COVER SIDE (LH) (BG5 - WHITE/GRAY/GRAY/YELLOW)
-
644160-31J00 BRACKET, COVERBRACKET, COVER
-
709139-06190 BOLT (6X20)BOLT (6X20)
-
844164-31J00 CUSHION, COVERCUSHION, COVER
-
944520-31J01 BRACKET, FRONTBRACKET, FRONT
-
1009139-06192 SCREW (6X25)SCREW (6X25)
-
1109160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1244512-16G00 SPACER, FUEL TANK FRSPACER, FUEL TANK FR
-
1344511-16G00 CUSHIONCUSHION
-
1401550-0695A BOLTBOLT
-
1544561-35F00 SPACERSPACER
-
1608319-3106B NUTNUT
-
1744560-31J00 BRACKET, SIDE (RH)BRACKET, SIDE (RH)
-
1844560-31J00 BRACKET, SIDE (LH)BRACKET, SIDE (LH)
-
1901550-0612A BOLTBOLT
-
2044543-31J00 CUSHION, FRONT SIDE BRACKETCUSHION, FRONT SIDE BRACKET
-
2109139-05091 SCREWSCREW
