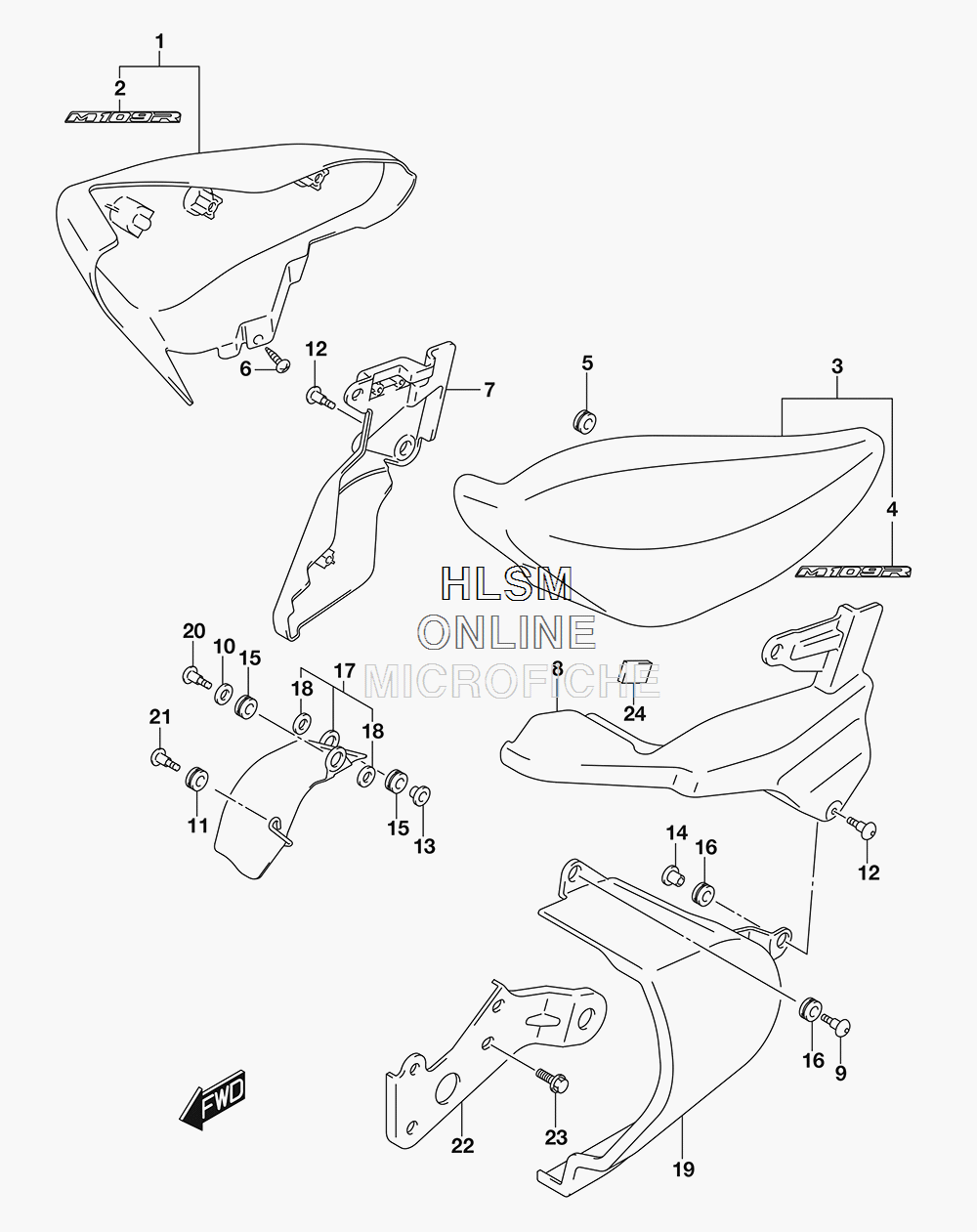

SIDE COVER (CANADA) для Suzuki VZR 1800BZ M109R B.O.S.S. - 2017 года выпуска`
-
№АртикулНазвание
-
1-147110-48GA0-PGZ COVER, FRAME (RH) (FOR PGZ - GRAY)COVER, FRAME (RH) (FOR PGZ - GRAY)
-
1-247110-48GB0-YKY COVER, FRAME (RH) (YKY - BLUE FOR BBD - BLUE/BLACK)COVER, FRAME (RH) (YKY - BLUE FOR BBD - BLUE/BLACK)
-
2-168131-48GA0-AHW ...EMBLEM "M109R" (AHW - GRAY/BLACK FOR REF 1-1 PGZ - GRAY)...EMBLEM "M109R" (AHW - GRAY/BLACK FOR REF 1-1 PGZ - GRAY)
-
2-268131-48GA0-BBJ ...EMBLEM "M109R" (BBJ - BLUE/GRAY FOR REF 1-2 YKY - BLUE)...EMBLEM "M109R" (BBJ - BLUE/GRAY FOR REF 1-2 YKY - BLUE)
-
3-147210-48GA0-PGZ COVER, FRAME (LH) (FOR PGZ - GRAY)COVER, FRAME (LH) (FOR PGZ - GRAY)
-
3-247210-48GB0-YKY COVER, FRAME (LH) (YKY - BLUE FOR BBD - BLUE/BLACK)COVER, FRAME (LH) (YKY - BLUE FOR BBD - BLUE/BLACK)
-
4-168131-48GA0-AHW ...EMBLEM "M109R" (AHW - GRAY/BLACK FOR REF 3-1 PGZ - GRAY)...EMBLEM "M109R" (AHW - GRAY/BLACK FOR REF 3-1 PGZ - GRAY)
-
4-268131-48GA0-BBJ ...EMBLEM "M109R" (BBJ - BLUE/GRAY FOR REF 3-2 YKY - BLUE)...EMBLEM "M109R" (BBJ - BLUE/GRAY FOR REF 3-2 YKY - BLUE)
-
509320-08018 CUSHIONCUSHION
-
603541-0516A SCREWSCREW
-
747121-48G00 COVER, SIDE LOWER (RH)COVER, SIDE LOWER (RH)
-
847221-48G00 COVER, SIDE LOWER (LH)COVER, SIDE LOWER (LH)
-
909139-06126 SCREW (6X20) (LH)SCREW (6X20) (LH)
-
1009160-10123 WASHER (10.5X20X2.3) (RH)WASHER (10.5X20X2.3) (RH)
-
1109320-09501 CUSHION (RH)CUSHION (RH)
-
1209139-06029 SCREW (6X25)SCREW (6X25)
-
1309180-06319 SPACER (6.5X10X11.6) (RH)SPACER (6.5X10X11.6) (RH)
-
1409169-06075 WASHER (LH)WASHER (LH)
-
1509320-08021 CUSHION (RH)CUSHION (RH)
-
1609320-08070 CUSHION (LH)CUSHION (LH)
-
1747130-48G50 COVER, LOWER (RH)COVER, LOWER (RH)
-
1847523-41F00 ...WASHER, FRAME COVER...WASHER, FRAME COVER
-
1947231-48G50 COVER, LOWER (LH)COVER, LOWER (LH)
-
2009139-06126 SCREW (6X20) (RH)SCREW (6X20) (RH)
-
2109139-06126 SCREW (6X20) (RH)SCREW (6X20) (RH)
-
2247250-48G00 BRACKET, LOWER COVER (LH)BRACKET, LOWER COVER (LH)
-
2301550-0612A BOLTBOLT
-
2447161-19C00 CUSHION, SIDE COVER (LH)CUSHION, SIDE COVER (LH)
