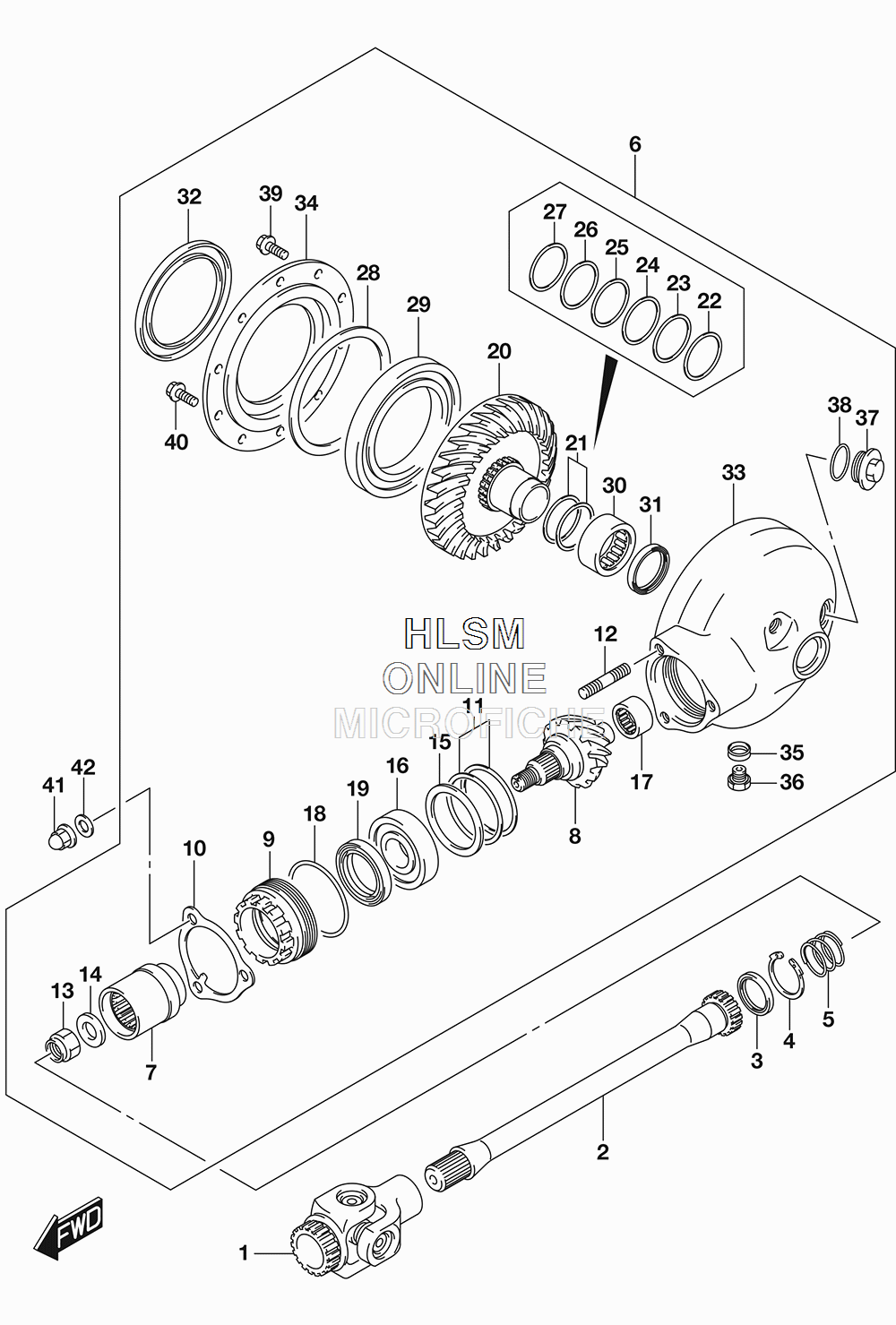

PROPELLER SHAFT/FINAL DRIVE GEAR (EXCEPT CALIF.) для Suzuki VL1500B C90 B.O.S.S. - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    27100-48G20 YOKE, UNIVERSAL JOINT
    YOKE, UNIVERSAL JOINT
  • 2
    27151-40H00 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 3
    09283-30026 OIL SEAL (30X40.5X5.5)
    OIL SEAL (30X40.5X5.5)
  • 4
    09381-40003 CIRCLIP
    CIRCLIP
  • 5
    09440-30008 SPRING
    SPRING
  • 6
    27300-48860-291 GEAR & CASE SET, FINAL BEVEL (291 - BLACK)
    GEAR & CASE SET, FINAL BEVEL (291 - BLACK)
  • 7
    27172-24A00 ...COUPLING, FINAL DRIVE GEAR
    ...COUPLING, FINAL DRIVE GEAR
  • 8
    27311-24A10 ...GEAR, FINAL DRIVE BEVEL (NT:12)
    ...GEAR, FINAL DRIVE BEVEL (NT:12)
  • 9
    27312-24A02 ...STOPPER, FINAL DRIVE BEARING
    ...STOPPER, FINAL DRIVE BEARING
  • 10-1
    27313-38B00 ...PLATE, BEARING STOPPER
    ...PLATE, BEARING STOPPER
  • 10-2
    27313-38B10 ...PLATE, BEARING STOPPER
    ...PLATE, BEARING STOPPER
  • 11
    27445-24810 ...SHIM SET, FINAL DRIVE GEAR (T:0.30/0.35/0.40/0.50/0.60)
    ...SHIM SET, FINAL DRIVE GEAR (T:0.30/0.35/0.40/0.50/0.60)
  • 12
    09108-10106 ...STUD BOLT
    ...STUD BOLT
  • 13
    09159-16003 ...NUT
    ...NUT
  • 14
    09160-16029 ...WASHER (16X29X4)
    ...WASHER (16X29X4)
  • 15
    09160-54001 ...WASHER (54X68X1.5)
    ...WASHER (54X68X1.5)
  • 16
    09262-28023 ...BEARING (28X68X18)
    ...BEARING (28X68X18)
  • 17
    09263-20062 ...BEARING (20X34X18)
    ...BEARING (20X34X18)
  • 18
    09280-64003 ...O RING (D:3.1,ID:63.9)
    ...O RING (D:3.1,ID:63.9)
  • 19
    09283-47002 ...OIL SEAL (45.5X58X7)
    ...OIL SEAL (45.5X58X7)
  • 20
    27320-48G00 ...GEAR, FINAL DRIVEN BEVEL (NT:32)
    ...GEAR, FINAL DRIVEN BEVEL (NT:32)
  • 21
    27326-48811 ...SHIM SET, FINAL DRIVEN (LH)
    ...SHIM SET, FINAL DRIVEN (LH)
  • 22
    09181-40011 ......SHIM (40X46.8X0.95)
    ......SHIM (40X46.8X0.95)
  • 23
    09181-40013 ......SHIM (40X46.8X1.05)
    ......SHIM (40X46.8X1.05)
  • 24
    09181-40014 ......SHIM (40X46.8X1.1)
    ......SHIM (40X46.8X1.1)
  • 25
    09181-40176 ......SHIM (40X50X1.2)
    ......SHIM (40X50X1.2)
  • 26
    09181-40182 ......SHIM (40X50X1.4)
    ......SHIM (40X50X1.4)
  • 27
    09181-40212 ......SHIM (40X50X1.5)
    ......SHIM (40X50X1.5)
  • 28
    27327-38810 ...SHIM SET, FINAL DRIVE (RH) (T:0.35/0.40/0.50/0.60)
    ...SHIM SET, FINAL DRIVE (RH) (T:0.35/0.40/0.50/0.60)
  • 29
    09262-85001 ...BEARING (85X130X14) (RH)
    ...BEARING (85X130X14) (RH)
  • 30
    09263-40016 ...BEARING (40X50X20) (LH)
    ...BEARING (40X50X20) (LH)
  • 31
    09283-38026 ...OIL SEAL (38X46X6) (LH)
    ...OIL SEAL (38X46X6) (LH)
  • 32
    09289-85001 ...OIL SEAL (85X110X11) (RH)
    ...OIL SEAL (85X110X11) (RH)
  • 33
    27450-48G70-291 ...CASE, FINAL GEAR (291 - BLACK)
    ...CASE, FINAL GEAR (291 - BLACK)
  • 34
    27461-38B00 ...CASE, FINAL GEAR BEARING
    ...CASE, FINAL GEAR BEARING
  • 35
    09168-14002 ...GASKET (13.8X18.8X4.8)
    ...GASKET (13.8X18.8X4.8)
  • 36
    09247-14002 ...PLUG (OIL DRAIN)
    ...PLUG (OIL DRAIN)
  • 37
    09259-30007 ...PLUG (30X9)
    ...PLUG (30X9)
  • 38
    09280-26006 ...O RING (D:3.1,ID:26.4)
    ...O RING (D:3.1,ID:26.4)
  • 39
    01550-0825A ...BOLT
    ...BOLT
  • 40
    01550-1025A ...BOLT
    ...BOLT
  • 41
    09159-10026 NUT
    NUT
  • 42
    09164-10008 WASHER
    WASHER
