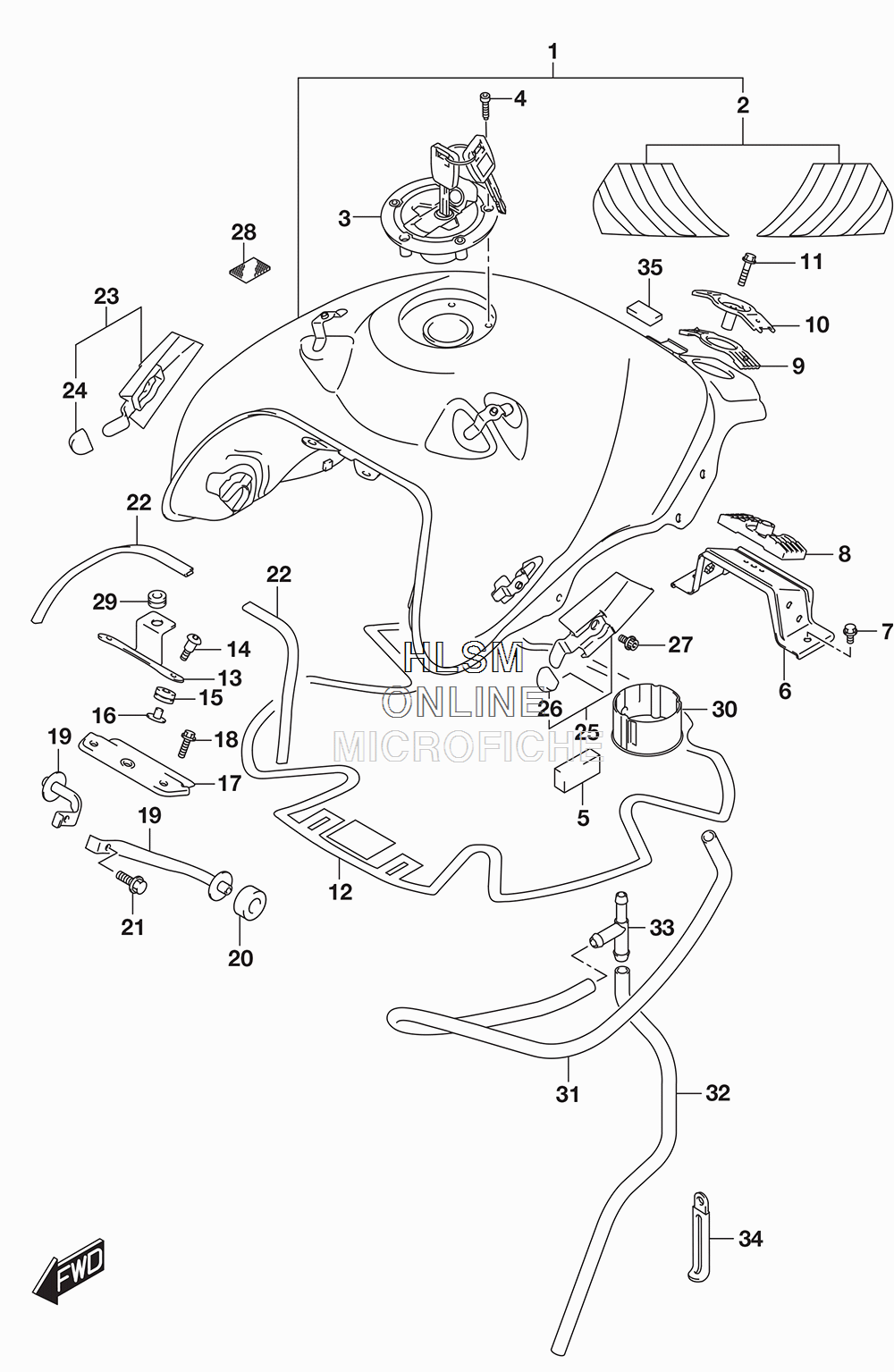

FUEL TANK (CALIF.) для Suzuki V-STORM 650XT [DL650XA] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-28KA0-YU1 TANK ASSY, FUEL (YU1 - YELLOW)
    TANK ASSY, FUEL (YU1 - YELLOW)
  • 1-2
    44100-28KA0-YVB TANK ASSY, FUEL (YVB - BLACK)
    TANK ASSY, FUEL (YVB - BLACK)
  • 1-3
    44100-28KA0-YWW TANK ASSY, FUEL (YWW - WHITE)
    TANK ASSY, FUEL (YWW - WHITE)
  • 2-1
    68110-28K00-AA3 ...TAPE SET, FUEL TANK (AA3 - THUNDER GRAY / GLASS SPARKLE BLACK FOR REF 1-2 YVB - BLACK)
    ...TAPE SET, FUEL TANK (AA3 - THUNDER GRAY / GLASS SPARKLE BLACK FOR REF 1-2 YVB - BLACK)
  • 2-2
    68110-28K00-BGZ ...TAPE SET, FUEL TANK (BGZ - THUNDR GRAY (YLF)/ WHITE (YWW) FOR REF 1-3 YWW - WHITE)
    ...TAPE SET, FUEL TANK (BGZ - THUNDR GRAY (YLF)/ WHITE (YWW) FOR REF 1-3 YWW - WHITE)
  • 2-3
    68110-28K00-GY8 ...TAPE SET, FUEL TANK (GY8 - YELLOW NO. 2/BLACK (019) FOR REF 1-1 YU1 - YELLOW)
    ...TAPE SET, FUEL TANK (GY8 - YELLOW NO. 2/BLACK (019) FOR REF 1-1 YU1 - YELLOW)
  • 3
    44200-17820 CAP SET, FUEL TANK
    CAP SET, FUEL TANK
  • 4
    44244-11J00 BOLT, FUEL TANK FILLER CAP
    BOLT, FUEL TANK FILLER CAP
  • 5
    44541-28K00 CUSHION, FUEL TANK SIDE
    CUSHION, FUEL TANK SIDE
  • 6
    44550-06G10 BRACKET, REAR LOWER
    BRACKET, REAR LOWER
  • 7
    01550-0816A BOLT
    BOLT
  • 8
    44545-06G00 CUSHION, LOWER
    CUSHION, LOWER
  • 9
    44542-06G00 CUSHION, UPPER
    CUSHION, UPPER
  • 10
    44530-06G00 BRACKET, UPPER
    BRACKET, UPPER
  • 11
    01550-0835A BOLT
    BOLT
  • 12
    44194-11J00 SHIELD, TANK CENTER
    SHIELD, TANK CENTER
  • 13
    44154-11J00 BRACKET, FRONT COVER
    BRACKET, FRONT COVER
  • 14
    09139-06192 SCREW (6X25)
    SCREW (6X25)
  • 15
    44511-16G00 CUSHION, FUEL TANK FRONT
    CUSHION, FUEL TANK FRONT
  • 16
    44512-16G00 WASHER, FUEL TANK FRONT
    WASHER, FUEL TANK FRONT
  • 17
    44520-11J00 BRACKET, FUEL TANK FRONT
    BRACKET, FUEL TANK FRONT
  • 18
    01550-0620B BOLT
    BOLT
  • 19
    44560-11J00 BRACKET, FRONT SIDE
    BRACKET, FRONT SIDE
  • 20
    44542-11J00 CUSHION, FRONT SIDE BRACKET
    CUSHION, FRONT SIDE BRACKET
  • 21
    01550-0612A BOLT
    BOLT
  • 22
    68241-11J01 MOLDING, FUEL TANK
    MOLDING, FUEL TANK
  • 23
    44130-28K00 BRACKET, FUEL TANK COVER RIGHT HAND
    BRACKET, FUEL TANK COVER RIGHT HAND
  • 24
    09329-18001 ...CUSHION
    ...CUSHION
  • 25
    44140-28K00 BRACKET, FUEL TANK COVER LEFT HAND
    BRACKET, FUEL TANK COVER LEFT HAND
  • 26
    09329-18001 ...CUSHION
    ...CUSHION
  • 27
    07120-0610A BOLT
    BOLT
  • 28
    44572-37H00 FASTENER, FUEL TANK COVER
    FASTENER, FUEL TANK COVER
  • 29
    09320-06504 CUSHION
    CUSHION
  • 30
    44121-28K00 VESSEL, FUEL TANK INNER
    VESSEL, FUEL TANK INNER
  • 31
    44423-28K00 HOSE, FUEL TANK DRAIN NO.1
    HOSE, FUEL TANK DRAIN NO.1
  • 32
    44423-11J30 HOSE, FUEL TANK DRAIN NO.2
    HOSE, FUEL TANK DRAIN NO.2
  • 33
    09367-08005 3 WAY
    3 WAY
  • 34
    09404-06433 CLAMP (L:80)
    CLAMP (L:80)
  • 35
    45516-01H00 CUSHION
    CUSHION
