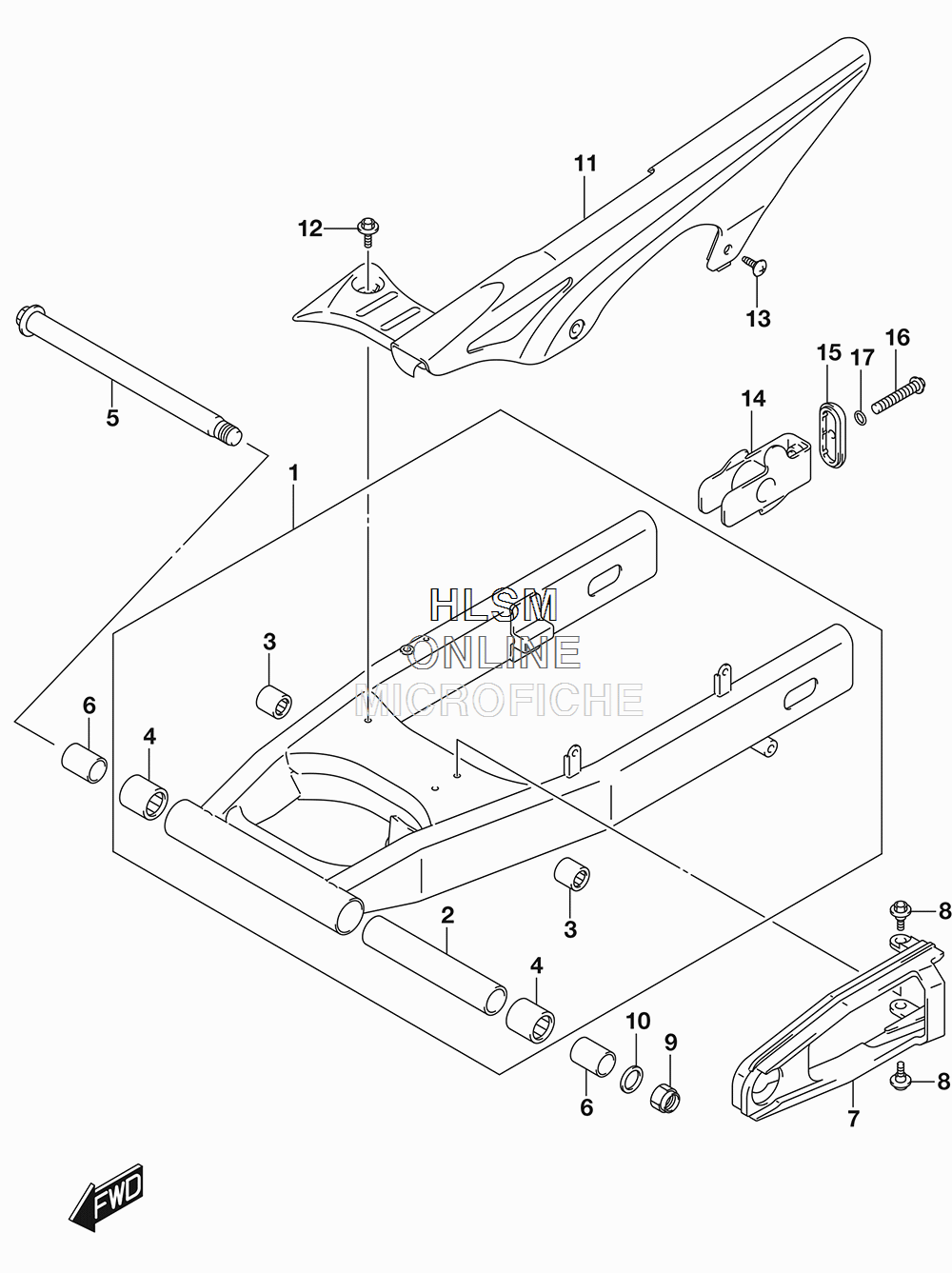

REAR SWINGARM для Suzuki SV650A - 2017 года выпуска
-
№АртикулНазвание
-
161000-44H10-YAP SWINGINGARM ASSY, REAR (YAP - BLACK)SWINGINGARM ASSY, REAR (YAP - BLACK)
-
261282-17C00 ...SPACER, RR SWGARM PIVOT...SPACER, RR SWGARM PIVOT
-
309263-17037 ...BEARING (17X24X25)...BEARING (17X24X25)
-
409263-25059 ...BEARING (25X33X35)...BEARING (25X33X35)
-
561211-31E00 SHAFT, RR SWGARM PIVOTSHAFT, RR SWGARM PIVOT
-
661251-21E00 SPACER, RR SWGARM PIVOTSPACER, RR SWGARM PIVOT
-
761273-44H00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
809111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
909159-18007 NUTNUT
-
1009160-18030 WASHER (18.5X28X2.6)WASHER (18.5X28X2.6)
-
1161310-44H00 CASE, CHAINCASE, CHAIN
-
1209111-06107 BOLT (6X12)BOLT (6X12)
-
1309139-06165 SCREW (6X16)SCREW (6X16)
-
1461410-44H00 ADJUSTER, CHAINADJUSTER, CHAIN
-
1561421-44H00-13L PLATE, ADJUSTER GUIDE (13L - SILVER)PLATE, ADJUSTER GUIDE (13L - SILVER)
-
1609106-08119 BOLT (8X50)BOLT (8X50)
-
1709164-08015 WASHERWASHER
