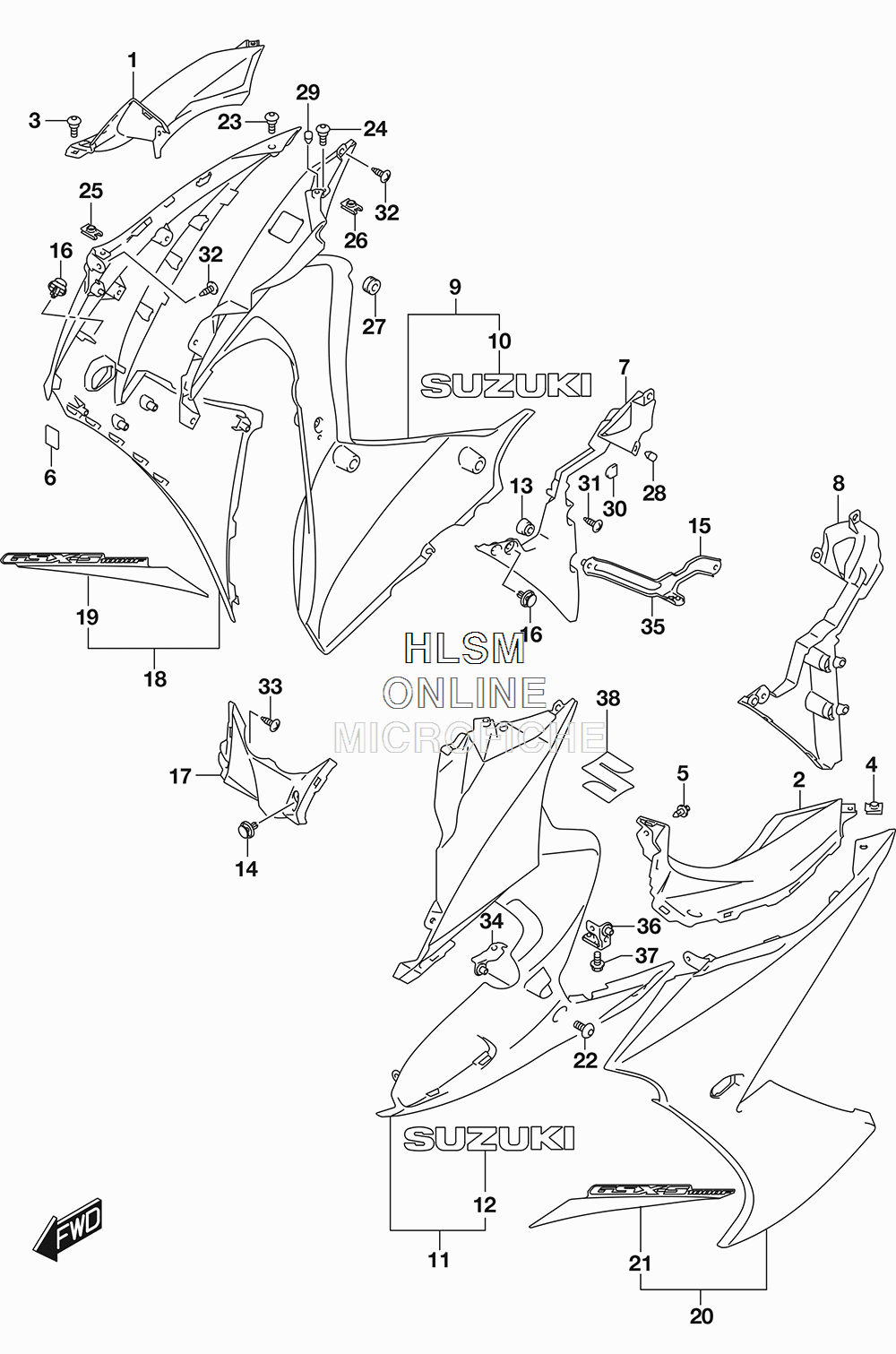

COWLING - SIDE (YSF - BLUE) для Suzuki GSX-S1000FA - 2017 года выпуска`
-
№АртикулНазвание
-
194631-04K00 PANEL, METER (RH)PANEL, METER (RH)
-
294632-04K00 PANEL, METER (LH)PANEL, METER (LH)
-
309139-05074 BOLT (5X13)BOLT (5X13)
-
409148-05052 NUTNUT
-
509409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
644572-37H00 FASTENER, COWLINGFASTENER, COWLING
-
794461-04K00 COWLING, UNDER INNER (RH)COWLING, UNDER INNER (RH)
-
894462-04K00 COWLING, UNDER INNER (LH)COWLING, UNDER INNER (LH)
-
994470-04KA0-YKV COWLING, UNDER (RH) (YKV - BLACK)COWLING, UNDER (RH) (YKV - BLACK)
-
1068181-04KA0-YES ...EMBLEM, "SUZUKI" (YES - SILVER)...EMBLEM, "SUZUKI" (YES - SILVER)
-
1194480-04KA0-YKV COWLING, UNDER (LH) (YKV - BLACK)COWLING, UNDER (LH) (YKV - BLACK)
-
1268181-04KA0-YES ...EMBLEM, "SUZUKI" (YES - SILVER)...EMBLEM, "SUZUKI" (YES - SILVER)
-
1394479-15H00 CUSHION, UNDER LOWERCUSHION, UNDER LOWER
-
1494479-35F00 CLIP, UNDER CENTERCLIP, UNDER CENTER
-
1594479-35F00 CLIP, UNDER INNERCLIP, UNDER INNER
-
1694479-35F00 CLIP, SIDE FRONTCLIP, SIDE FRONT
-
1794491-04K00 COWLING, UNDER CENTERCOWLING, UNDER CENTER
-
1894670-04K10-YSF COVER, SIDE (RH) (YSF - BLUE)COVER, SIDE (RH) (YSF - BLUE)
-
1968685-04K00-A78 ...TAPE, SIDE COWLING (RH) (A78 - WHITE/BLUE/YELLOW/SILVER/RED/BLACK)...TAPE, SIDE COWLING (RH) (A78 - WHITE/BLUE/YELLOW/SILVER/RED/BLACK)
-
2094680-04K10-YSF COVER, SIDE (LH) (YSF - BLUE)COVER, SIDE (LH) (YSF - BLUE)
-
2168695-04K00-A78 ...TAPE, SIDE COWLING (LH) (A78 - WHITE/BLUE/YELLOW/SILVER/RED/BLACK)...TAPE, SIDE COWLING (LH) (A78 - WHITE/BLUE/YELLOW/SILVER/RED/BLACK)
-
2209106-06117 BOLT (6X12)BOLT (6X12)
-
2309139-05064 SCREW (5X13)SCREW (5X13)
-
2409139-05074 BOLT (5X13)BOLT (5X13)
-
2509148-05052 NUTNUT
-
2609148-05052 NUTNUT
-
2709320-06504 CUSHIONCUSHION
-
2809321-06013 CUSHIONCUSHION
-
2909321-06013 CUSHIONCUSHION
-
3009329-18001 CUSHIONCUSHION
-
3103541-0516B SCREWSCREW
-
3203541-0516B SCREWSCREW
-
3303541-0516B SCREWSCREW
-
3494520-04K00 BRACKET, UNDER COWL FR (LH)BRACKET, UNDER COWL FR (LH)
-
3594530-04K00 BRACKET, UNDER COWL RR (RH)BRACKET, UNDER COWL RR (RH)
-
3694540-04K00 BRACKET, UNDER COWL RR (LH)BRACKET, UNDER COWL RR (LH)
-
3701550-0612A BOLTBOLT
-
3868111-47HA0 EMBLEM, SEMBLEM, S
