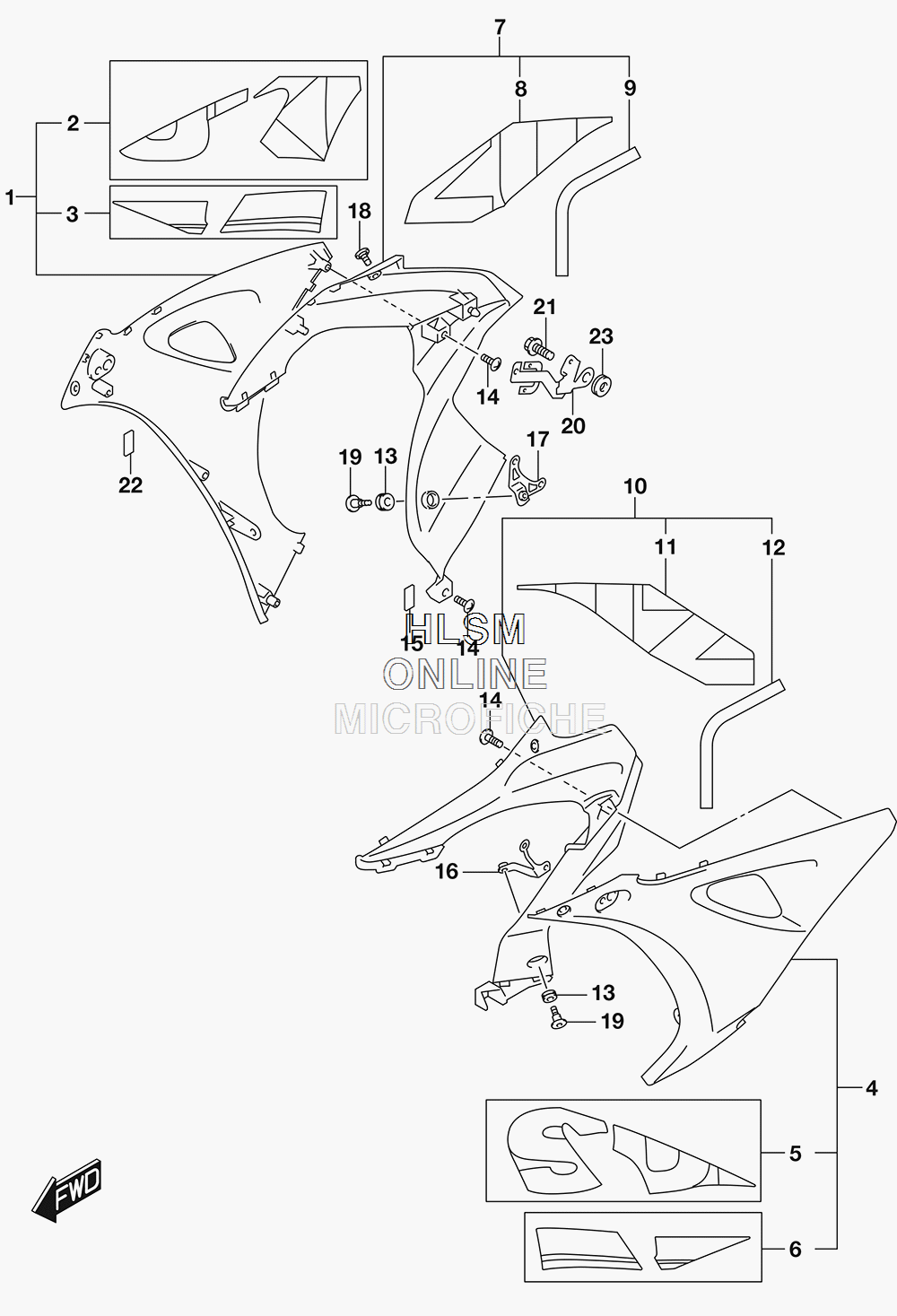

COWLING - SIDE (BLUE) (CANADA) для Suzuki GSX-R1000R - 2017 года выпуска
-
№АртикулНазвание
-
194470-17K10-YSF COWLING, SIDE (RH) (YSF - BLUE)COWLING, SIDE (RH) (YSF - BLUE)
-
268685-17K10-AGQ ...TAPE, SIDE COWLING UPPER (RH) (AGQ - BLUE/WHITE)...TAPE, SIDE COWLING UPPER (RH) (AGQ - BLUE/WHITE)
-
368685-17K20-BDH ...TAPE, SIDE COWLING LOWER (RH) (BDH - BLUE/WHITE/YELLOW/GRAY)...TAPE, SIDE COWLING LOWER (RH) (BDH - BLUE/WHITE/YELLOW/GRAY)
-
494480-17K10-YSF COWLING, SIDE (LH) (YSF - BLUE)COWLING, SIDE (LH) (YSF - BLUE)
-
568695-17K10-AGQ ...TAPE, SIDE COWLING UPPER (LH) (AGQ - BLUE/WHITE)...TAPE, SIDE COWLING UPPER (LH) (AGQ - BLUE/WHITE)
-
668695-17K20-BDH ...TAPE, SIDE COWLING LOWER (LH) (BDH - BLUE/WHITE/YELLOW/GRAY)...TAPE, SIDE COWLING LOWER (LH) (BDH - BLUE/WHITE/YELLOW/GRAY)
-
794450-17K10-YSF COWLING, SIDE REAR (RH) (YSF - BLUE)COWLING, SIDE REAR (RH) (YSF - BLUE)
-
868680-17K00-AGQ ...TAPE, SIDE COWLING REAR (RH) (AGQ - BLUE/WHITE)...TAPE, SIDE COWLING REAR (RH) (AGQ - BLUE/WHITE)
-
994477-17K00 ...CUSHION...CUSHION
-
1094460-17K10-YSF COWLING, SIDE REAR (LH) (YSF - BLUE)COWLING, SIDE REAR (LH) (YSF - BLUE)
-
1168690-17K00-AGQ ...TAPE, SIDE COWLING REAR (LH) (AGQ - BLUE/WHITE)...TAPE, SIDE COWLING REAR (LH) (AGQ - BLUE/WHITE)
-
1294487-17K00 ...CUSHION...CUSHION
-
1309320-09016 CUSHIONCUSHION
-
1403541-0516A SCREWSCREW
-
1594477-17K20 CUSHION, SIDE REAR (RH) NO.3CUSHION, SIDE REAR (RH) NO.3
-
1694520-17K00 BRACKET, UNDER COWL (LH)BRACKET, UNDER COWL (LH)
-
1794540-17K00 BRACKET, UNDER COWL (RH)BRACKET, UNDER COWL (RH)
-
1809139-05091 SCREWSCREW
-
1909139-06206 SCREWSCREW
-
2094530-17K00 BRACKET, SIDE COWL (RH)BRACKET, SIDE COWL (RH)
-
2101550-0625A BOLTBOLT
-
2236930-60A10 CUSHION, SIDE FRONTCUSHION, SIDE FRONT
-
2394478-14J00 CUSHION, UNDER COWLINGCUSHION, UNDER COWLING
