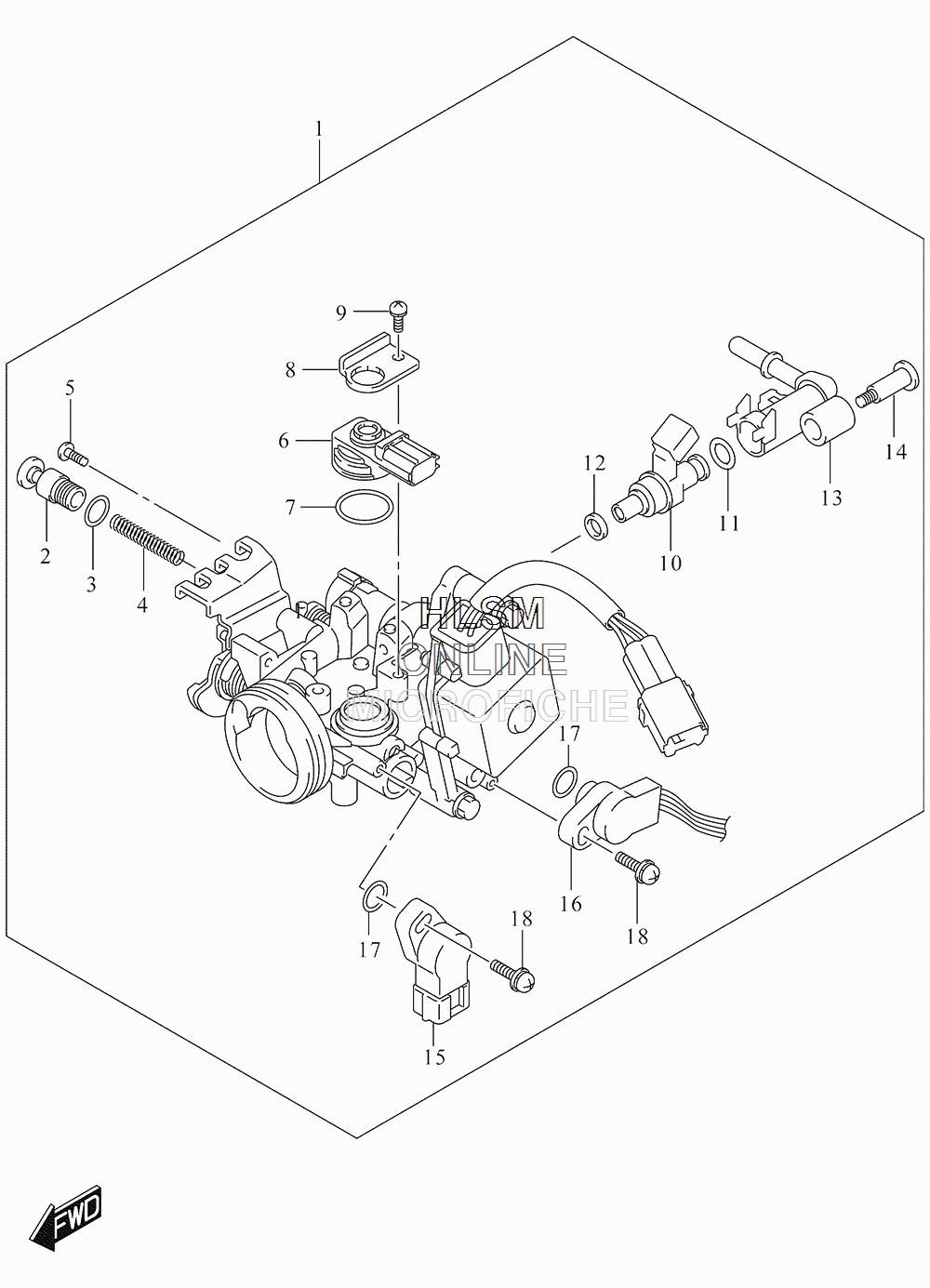

CARBURETOR - THROTTLE BODY для Suzuki TU250X L6 - 2016 года выпуска`
-
№АртикулНазвание
-
113400-26GA3 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
213279-26GA0 ...SCREW...SCREW
-
313295-14G00 ...O RING...O RING
-
413271-26GA0 ...SPRING...SPRING
-
513601-14G00 ...SCREW...SCREW
-
615620-05H00 ...SENSOR, MAP...SENSOR, MAP
-
715621-05H00 ...O RING...O RING
-
815622-33H00 ...PLATE, MAP SENSOR...PLATE, MAP SENSOR
-
902112-14087 ...SCREW...SCREW
-
1015710-26GA0 ...INJECTOR ASSY...INJECTOR ASSY
-
1115721-21H00 ...O RING...O RING
-
1215722-21H00 ...RING, SEAL...RING, SEAL
-
1313471-26GA0 ...PIPE, FUEL...PIPE, FUEL
-
1413601-35F00 ...SCREW...SCREW
-
1513580-33H01 ...SENSOR, THROTTLE...SENSOR, THROTTLE
-
1613580-40F31 ...SENSOR ASSY, THROTTLE NO.1...SENSOR ASSY, THROTTLE NO.1
-
1713575-40F00 ...O RING...O RING
-
1813605-40F00 ...SCREW...SCREW
