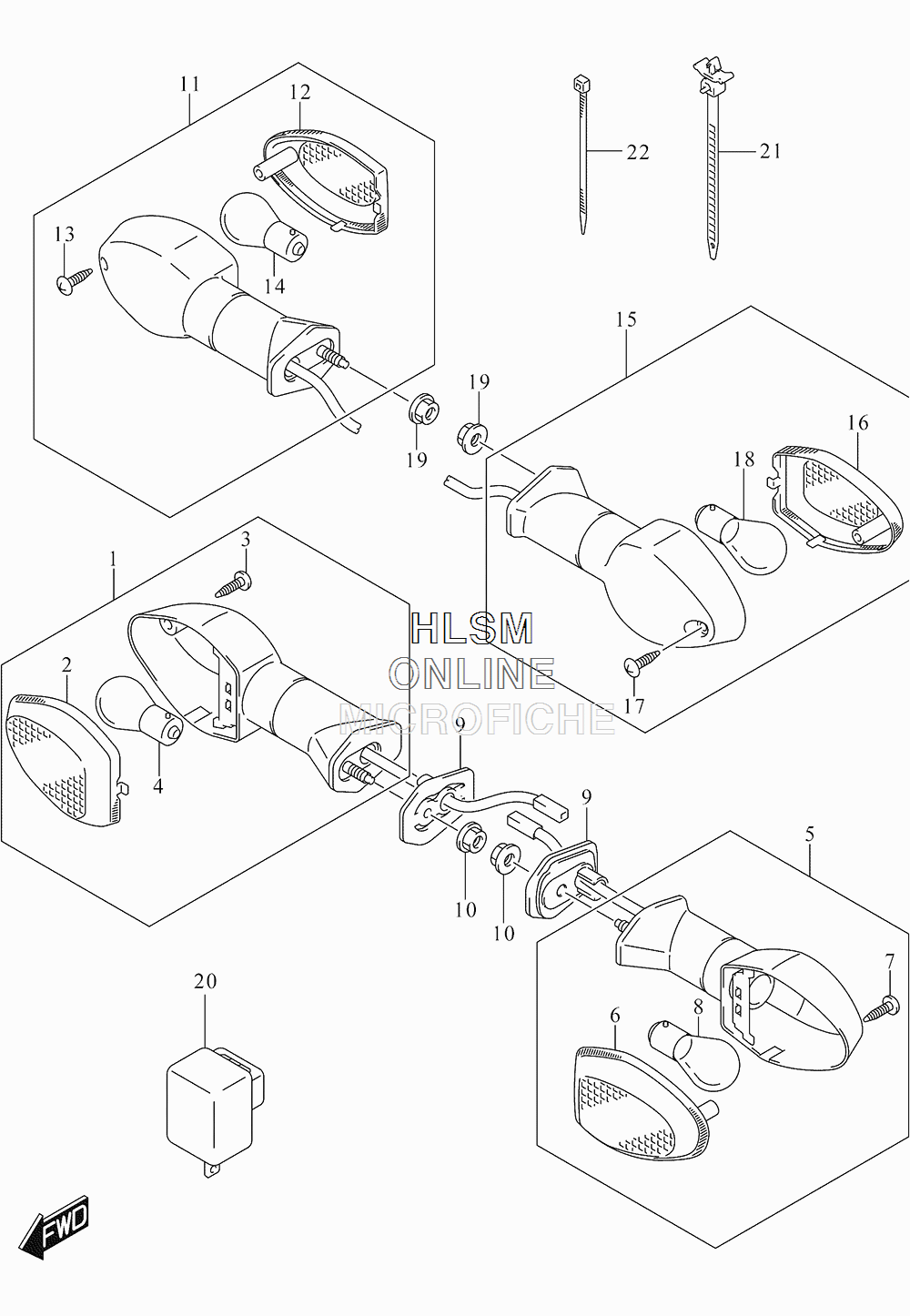

TURN SIGNAL ASSY. для Suzuki GSX-S1000F L6 - 2016 года выпуска`
-
№АртикулНазвание
-
135601-08J01 LAMP ASSY, FRONT TURNSIGNAL RHLAMP ASSY, FRONT TURNSIGNAL RH
-
235612-08J01 LENS, RHLENS, RH
-
303211-0414B SCREWSCREW
-
409471-12045 BULB (12V,21W)BULB (12V,21W)
-
535602-08J01 LAMP ASSY, FRONT TURNSIGNAL LHLAMP ASSY, FRONT TURNSIGNAL LH
-
635632-08J01 LENS, LHLENS, LH
-
703211-0414B SCREWSCREW
-
809471-12045 BULB (12V,21W)BULB (12V,21W)
-
935629-18G00 PLATE, FRONT TURNSIGNALPLATE, FRONT TURNSIGNAL
-
1008316-1005A NUTNUT
-
1135603-08J20 LAMP ASSY, REAR TURNSIGNAL RHLAMP ASSY, REAR TURNSIGNAL RH
-
1235632-08J01 LENS, RHLENS, RH
-
1303211-0414B SCREWSCREW
-
1409471-12045 BULB (12V,21W)BULB (12V,21W)
-
1535604-08J20 LAMP ASSY, REAR TURNSIGNAL LHLAMP ASSY, REAR TURNSIGNAL LH
-
1635612-08J01 LENS, LHLENS, LH
-
1703211-0414B SCREWSCREW
-
1809471-12045 BULB (12V,21W)BULB (12V,21W)
-
1908316-1005A NUTNUT
-
2038610-06F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
-
2109407-14408 CLAMP (L:120)CLAMP (L:120)
-
2209407-10404 CLAMP (L:100)CLAMP (L:100)
