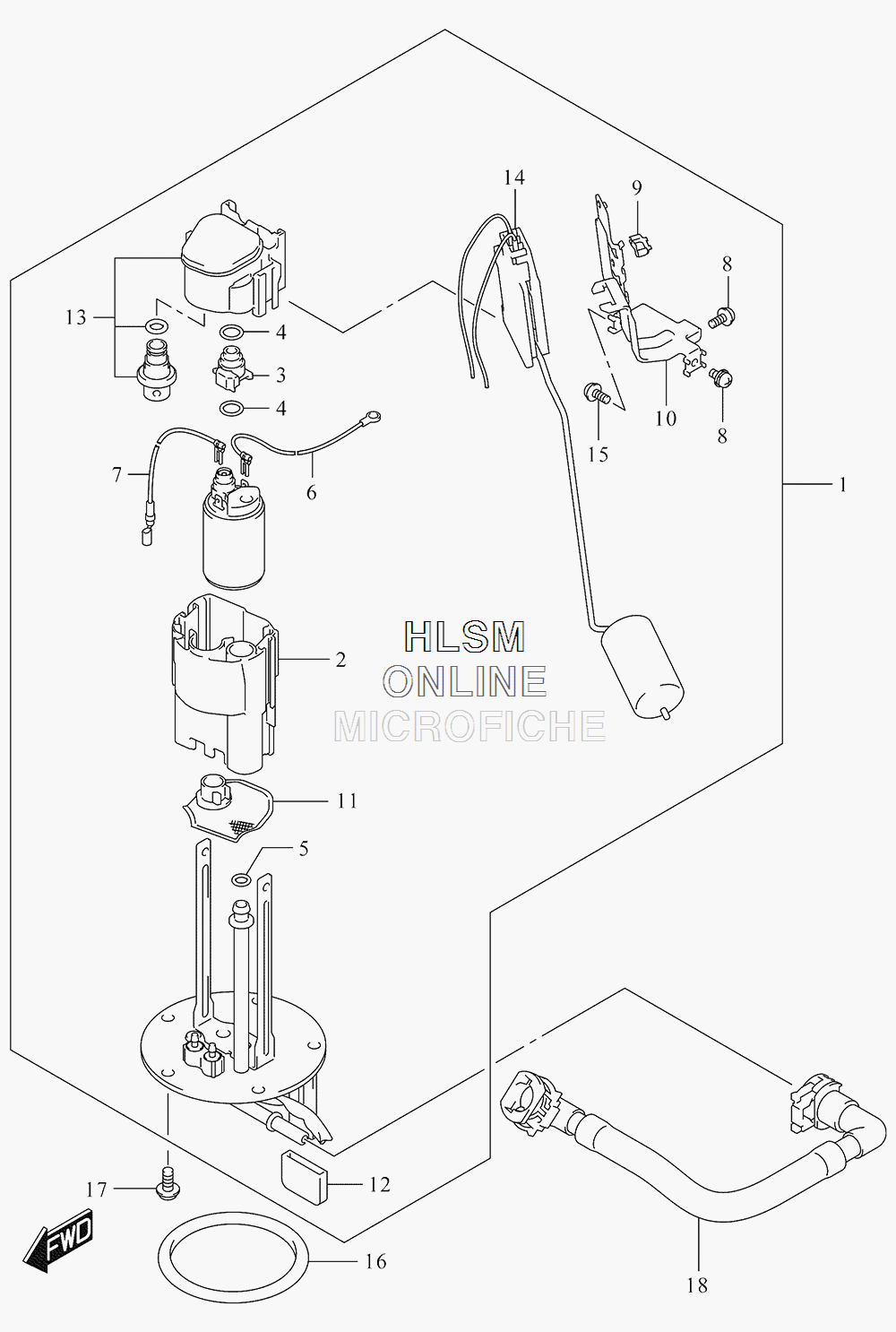

FUEL PUMP для Suzuki GSX-S1000F L6 - 2016 года выпуска`
-
№АртикулНазвание
-
115100-04K00 PUMP ASSY, FUELPUMP ASSY, FUEL
-
215111-27G00 CUP, RESERVOIRCUP, RESERVOIR
-
315112-05H00 JOINTJOINT
-
415113-05H00 O RINGO RING
-
515113-35F00 O RINGO RING
-
615114-14J00 WIRE, EARTHWIRE, EARTH
-
715115-08J00 WIRE, LEADWIRE, LEAD
-
815116-10F00 SCREWSCREW
-
915119-08J00 SADDLE, EDGESADDLE, EDGE
-
1015181-04K00 BRACKET, GAUGEBRACKET, GAUGE
-
1115420-31J00 STRAINERSTRAINER
-
1215583-18H00 CAP, STAYCAP, STAY
-
1315610-14J00 REGULATORREGULATOR
-
1434810-04K00 GAUGE ASSY, FUEL LEVELGAUGE ASSY, FUEL LEVEL
-
1515116-31J00 SCREWSCREW
-
1615201-35F00 O RINGO RING
-
1707120-0612A BOLTBOLT
-
1815810-04K00 HOSE, FUELHOSE, FUEL
