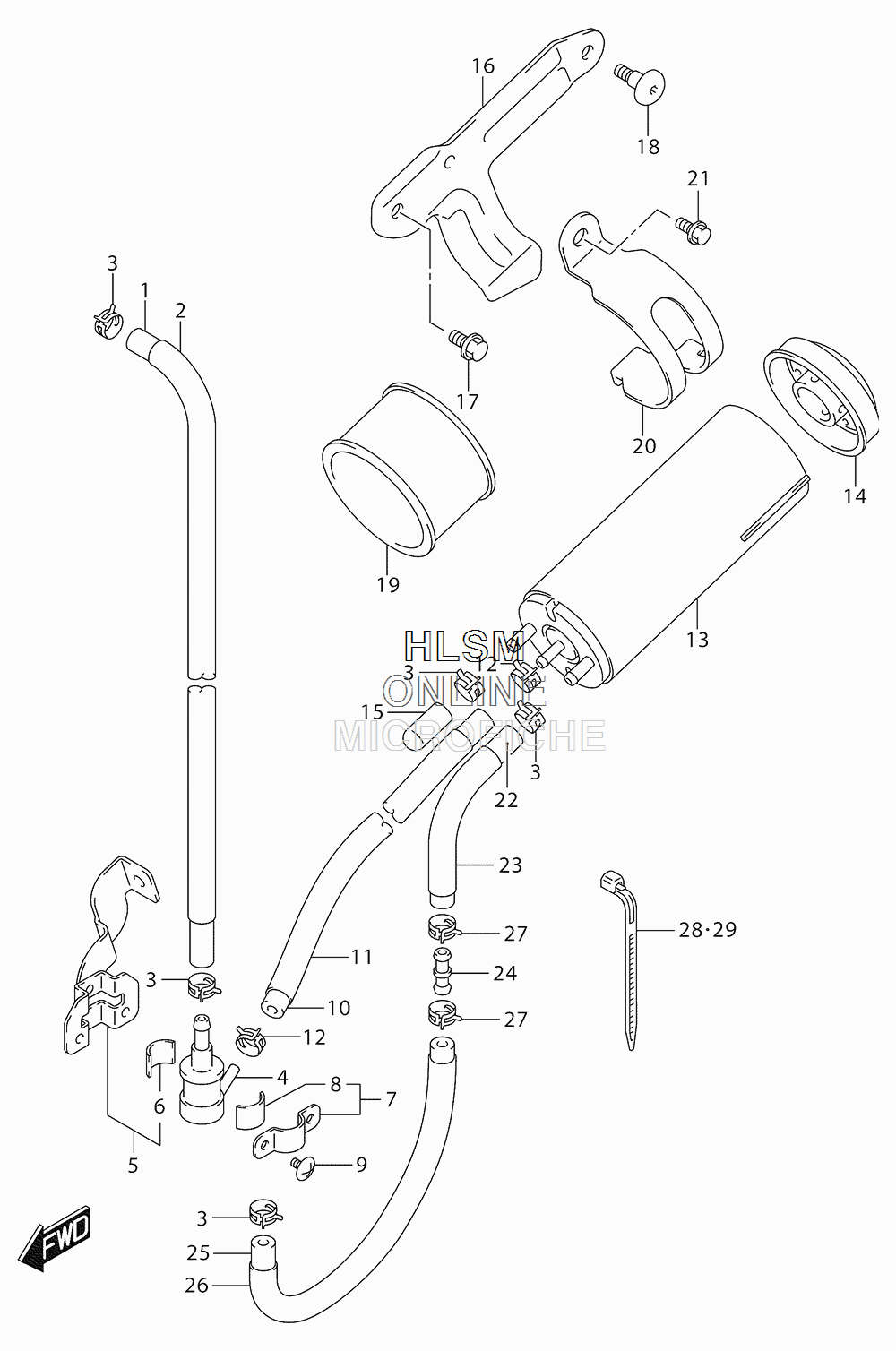

EVAP SYSTEM (CALIF) для Suzuki DR-Z400S L6 - 2016 года выпуска`
-
№АртикулНазвание
-
144434-29F10 HOSE, TANK AND BREATHER VALVEHOSE, TANK AND BREATHER VALVE
-
209351-14152-600 PROTECTOR (14.5X15.5X600) (L:600->340)PROTECTOR (14.5X15.5X600) (L:600->340)
-
309401-11413 CLIPCLIP
-
444240-17C00 VALVE, ROLL OVERVALVE, ROLL OVER
-
544890-29F00 BRACKET, BREATHER VALVEBRACKET, BREATHER VALVE
-
644894-24A00 ...CUSHION, BREATHER VALVE...CUSHION, BREATHER VALVE
-
744892-24A00 PLATE, FUEL TANK BREATHER NO.2PLATE, FUEL TANK BREATHER NO.2
-
844894-24A00 ...CUSHION, ROLL OVER VALVE CLAMP...CUSHION, ROLL OVER VALVE CLAMP
-
902142-0408B SCREWSCREW
-
1044435-29F10 HOSE, BREATHER VALVE AND CANISTERHOSE, BREATHER VALVE AND CANISTER
-
1109351-14152-00B HOSE (L:2000->950)HOSE (L:2000->950)
-
1209401-12404 CLIPCLIP
-
1317210-26E00 CANISTER ASSY, CHARCOALCANISTER ASSY, CHARCOAL
-
1417211-48E00 CAP, CANISTERCAP, CANISTER
-
1509251-07003 CAP (OD:11.5)CAP (OD:11.5)
-
1644881-29F00 BRACKET, CANISTERBRACKET, CANISTER
-
1701550-0816B BOLTBOLT
-
1809116-06165 BOLT (6X16)BOLT (6X16)
-
1944883-26E00 CUSHION, CANISTERCUSHION, CANISTER
-
2044882-29F00 HOLDER, CANISTERHOLDER, CANISTER
-
2101550-0612B BOLTBOLT
-
2244436-29F10 HOSE, CANISTER AND CARB PURGEHOSE, CANISTER AND CARB PURGE
-
2309351-14152-600 PROTECTOR (14.5X15.5X600) (L:600->360)PROTECTOR (14.5X15.5X600) (L:600->360)
-
2409364-06005 UNIONUNION
-
2544437-29F10 HOSE, CANISTER AND CARB PURGE NO.2HOSE, CANISTER AND CARB PURGE NO.2
-
2609351-14152-600 PROTECTOR (14.5X15.5X600) (L:600->570)PROTECTOR (14.5X15.5X600) (L:600->570)
-
2709401-11413 CLIPCLIP
-
2809407-14407 CLAMP (L:145)CLAMP (L:145)
-
2909407-14403 CLAMP (L:125)CLAMP (L:125)
