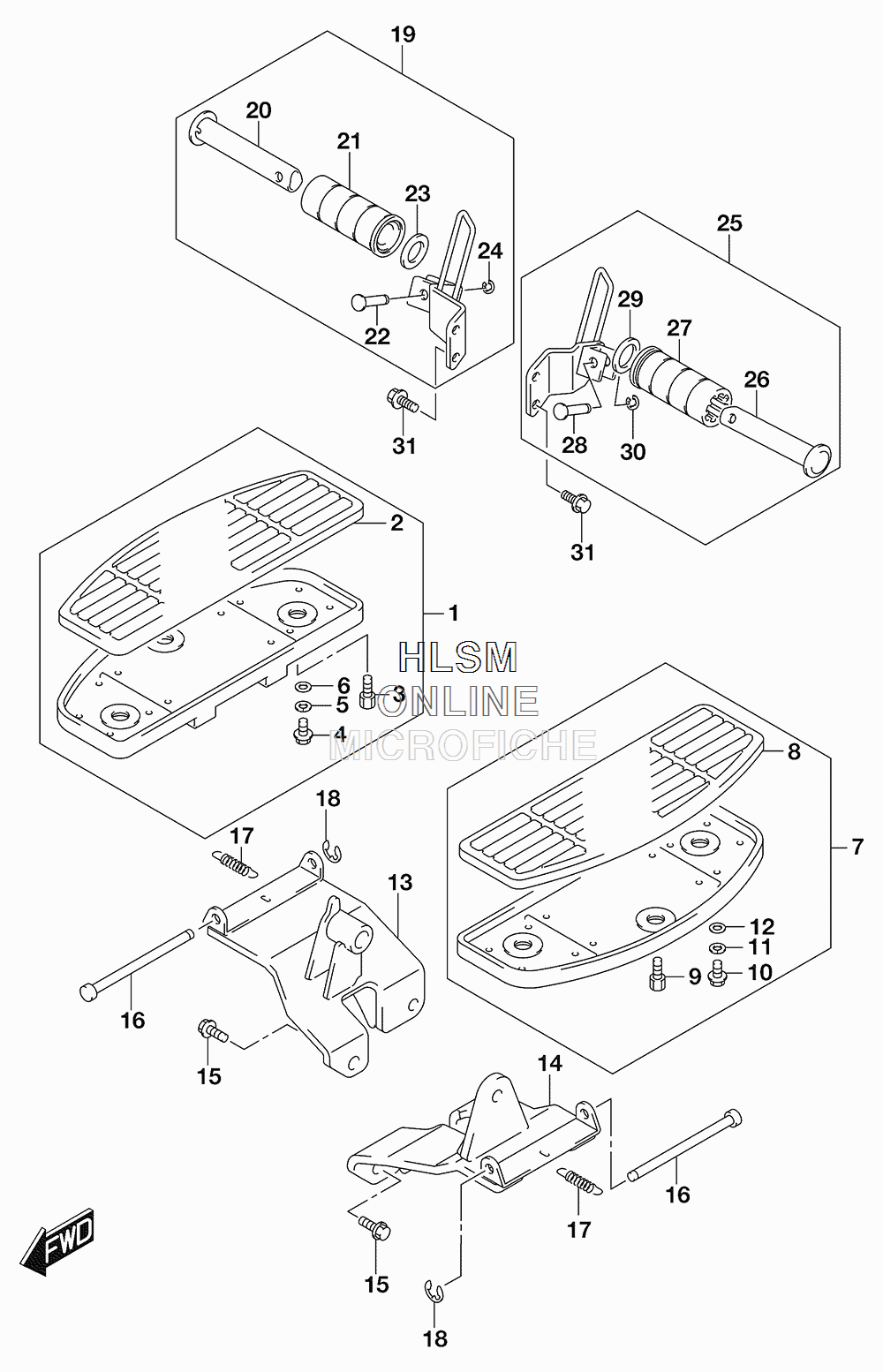

FOOTREST для Suzuki VL800B L5 BOULEVARD C50 B.O.S.S. - 2015 года выпуска

№

Артикул

Название
1

43501-10F11 FOOTREST ASSY, FRONT RIGHT HAND

FOOTREST ASSY, FRONT RIGHT HAND
2

43550-10F10 ...RUBBER

...RUBBER
3

43576-07D01 ...BOLT, BANK SENSOR

...BOLT, BANK SENSOR
4

01550-0610A ...BOLT

...BOLT
5

09160-06158 ...WASHER (6.5X22X1.6)

...WASHER (6.5X22X1.6)
6

09320-10036 ...CUSHION

...CUSHION
7

43502-10F11 FOOTREST ASSY, FRONT LEFT HAND

FOOTREST ASSY, FRONT LEFT HAND
8

43550-10F10 ...RUBBER

...RUBBER
9

43576-07D01 ...BOLT, BANK SENSOR

...BOLT, BANK SENSOR
10

01550-0610A ...BOLT

...BOLT
11

09160-06158 ...WASHER (6.5X22X1.6)

...WASHER (6.5X22X1.6)
12

09320-10036 ...CUSHION

...CUSHION
13

43510-41F30 BRACKET, FRONT FOOTREST RIGHT HAND

BRACKET, FRONT FOOTREST RIGHT HAND
14

43520-41F30 BRACKET, FRONT FOOTREST LEFT HAND

BRACKET, FRONT FOOTREST LEFT HAND
15

01580-1030B BOLT

BOLT
16

43539-10F00 PIN

PIN
17

09443-11033 SPRING

SPRING
18

08332-1106A E RING

E RING
19

43600-41F50 FOOTREST ASSY, PILLION RIGHT HAND

FOOTREST ASSY, PILLION RIGHT HAND
20

43610-39G00 ...BAR

...BAR
21

43612-39G00 ...RUBBER

...RUBBER
22

43636-25D00 ...PIN

...PIN
23

09160-19024 ...WASHER (19.5X32X2)

...WASHER (19.5X32X2)
24

08332-1104B ...E RING

...E RING
25

43700-41F50 FOOTREST ASSY, PILLION LEFT HAND

FOOTREST ASSY, PILLION LEFT HAND
26

43610-39G00 ...BAR

...BAR
27

43612-39G00 ...RUBBER

...RUBBER
28

43636-25D00 ...PIN

...PIN
29

09160-19024 ...WASHER (19.5X32X2)

...WASHER (19.5X32X2)
30

08332-1104B ...E RING

...E RING
31

09103-08412 BOLT (8X16)

BOLT (8X16)
