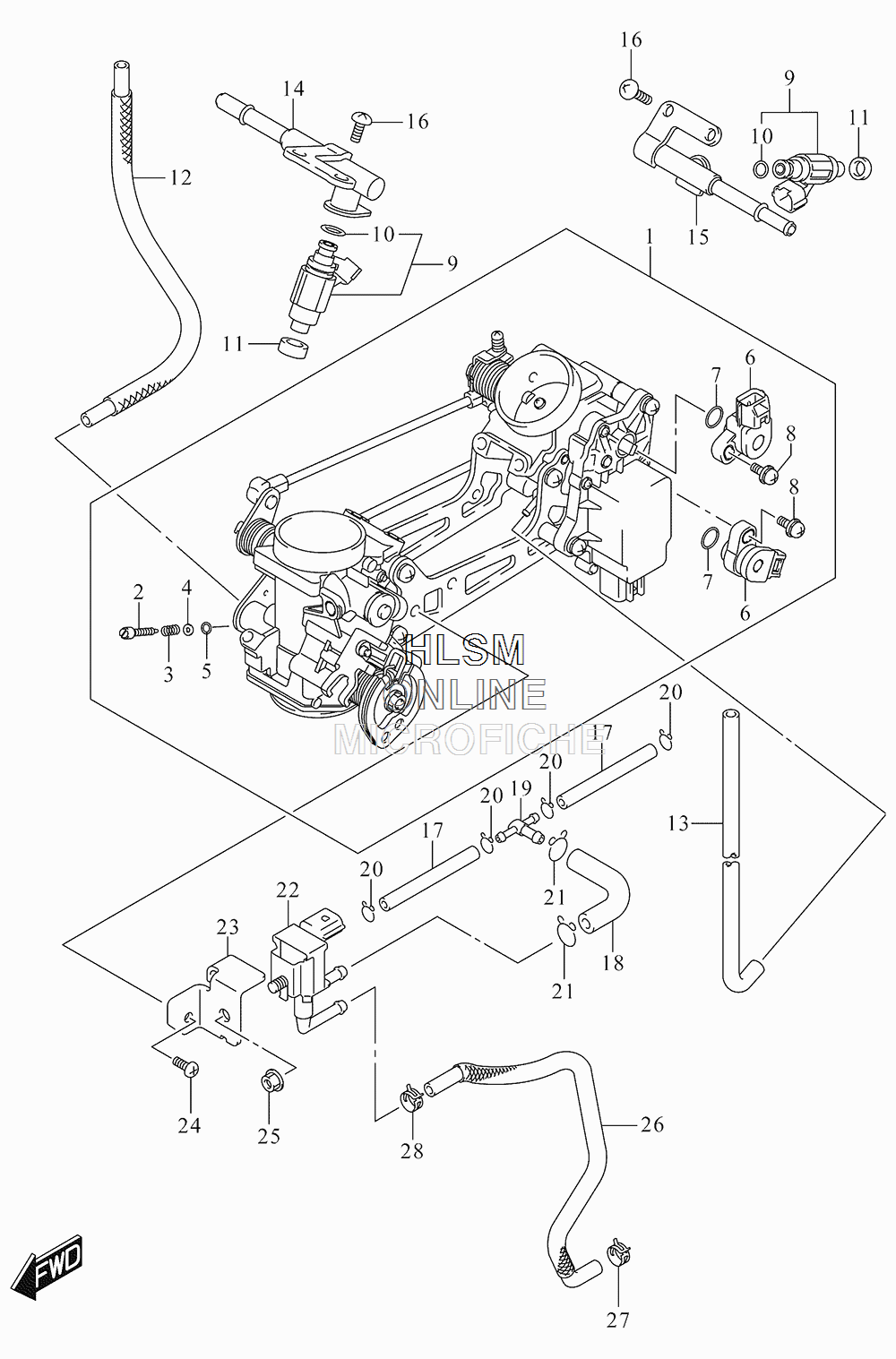

THROTTLE BODY (CALIF) для Suzuki SFV650A L5 GLADIUS W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
113405-44H10 THROTTLE BODYTHROTTLE BODY
-
213269-33E00 ...SCREW...SCREW
-
313268-48700 ...SPRING...SPRING
-
413606-47A00 ...WASHER...WASHER
-
513295-29900 ...O RING...O RING
-
613580-27G21 ...SENSOR ASSY...SENSOR ASSY
-
713575-29G00 ...O RING...O RING
-
813605-02F00 ...SCREW...SCREW
-
915710-44H00 INJECTOR ASSYINJECTOR ASSY
-
1015717-58B00 ...O RING...O RING
-
1115722-29G00 SEALSEAL
-
1213683-44H00 HOSEHOSE
-
1313683-44H10 HOSEHOSE
-
1415720-44H00 DELIVERY PIPEDELIVERY PIPE
-
1515730-44H00 DELIVERY PIPEDELIVERY PIPE
-
1613602-06128 SCREWSCREW
-
1713681-06G40 HOSEHOSE
-
1813683-44H30 HOSEHOSE
-
1913685-04F10 NIPPLENIPPLE
-
2009401-06101 CLIPCLIP
-
2109401-10410 CLIPCLIP
-
2218117-52G10 SOLENOID ASSYSOLENOID ASSY
-
2318119-44H00 BRACKETBRACKET
-
2413602-06128 SCREWSCREW
-
2508316-1006A NUTNUT
-
2613680-44H00 HOSE, PURGE VALVEHOSE, PURGE VALVE
-
2709401-11413 CLIPCLIP
-
2809401-09403 CLIPCLIP
