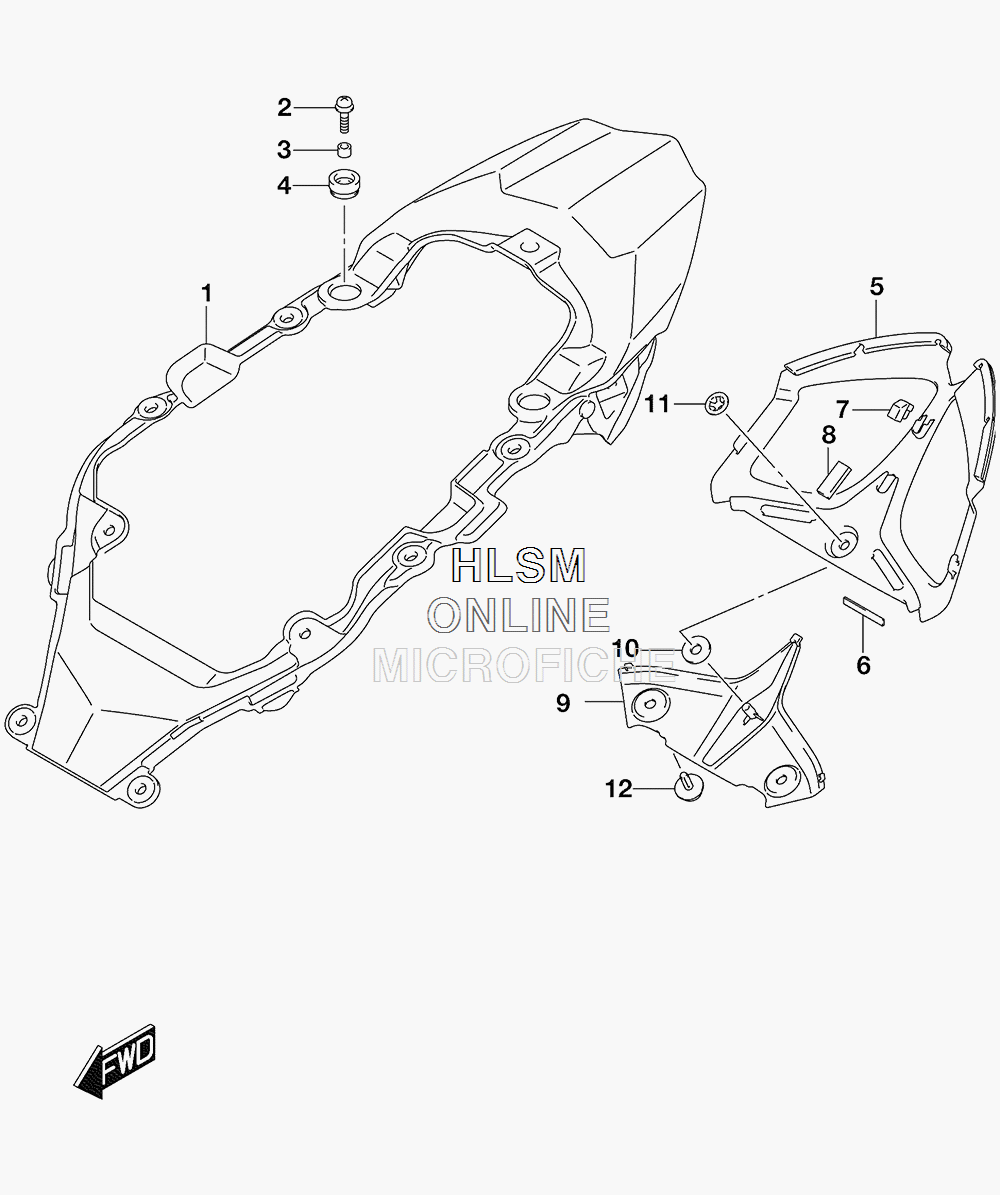

FRAME - CENTER COVER для Suzuki GSX-R1000A L5 - 2015 года выпуска
-
№АртикулНазвание
-
147310-47H00-YSF COVER, FRAME CENTER (BLUE) (FOR YSF)COVER, FRAME CENTER (BLUE) (FOR YSF)
-
147310-47H00-YVZ COVER, FRAME CENTER (RED) (FOR ARB)COVER, FRAME CENTER (RED) (FOR ARB)
-
147310-47H00-YVB COVER, FRAME CENTER (BLACK) (FOR AR4)COVER, FRAME CENTER (BLACK) (FOR AR4)
-
209136-06056 SCREW (6X16)SCREW (6X16)
-
309180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
447312-37H00 CUSHIONCUSHION
-
547911-47H00-YKV COVER, REAR CENTER (BLACK) (FOR YSF,AR4)COVER, REAR CENTER (BLACK) (FOR YSF,AR4)
-
547911-47H00-YVB COVER, REAR CENTER (BLACK) (FOR ARB)COVER, REAR CENTER (BLACK) (FOR ARB)
-
647912-47H00 CUSHIONCUSHION
-
747913-37H00 CUSHIONCUSHION
-
894413-08F00 CUSHIONCUSHION
-
947921-47H00-YSF COVER, REAR LOWER (BLUE) (FOR YSF)COVER, REAR LOWER (BLUE) (FOR YSF)
-
947921-47H00-YVZ COVER, REAR LOWER (RED) (FOR ARB)COVER, REAR LOWER (RED) (FOR ARB)
-
947921-47H00-YVB COVER, REAR LOWER (BLACK) (FOR AR4)COVER, REAR LOWER (BLACK) (FOR AR4)
-
1009320-06501 CUSHIONCUSHION
-
1109148-05006 NUTNUT
-
1209409-06328 CLIPCLIP
