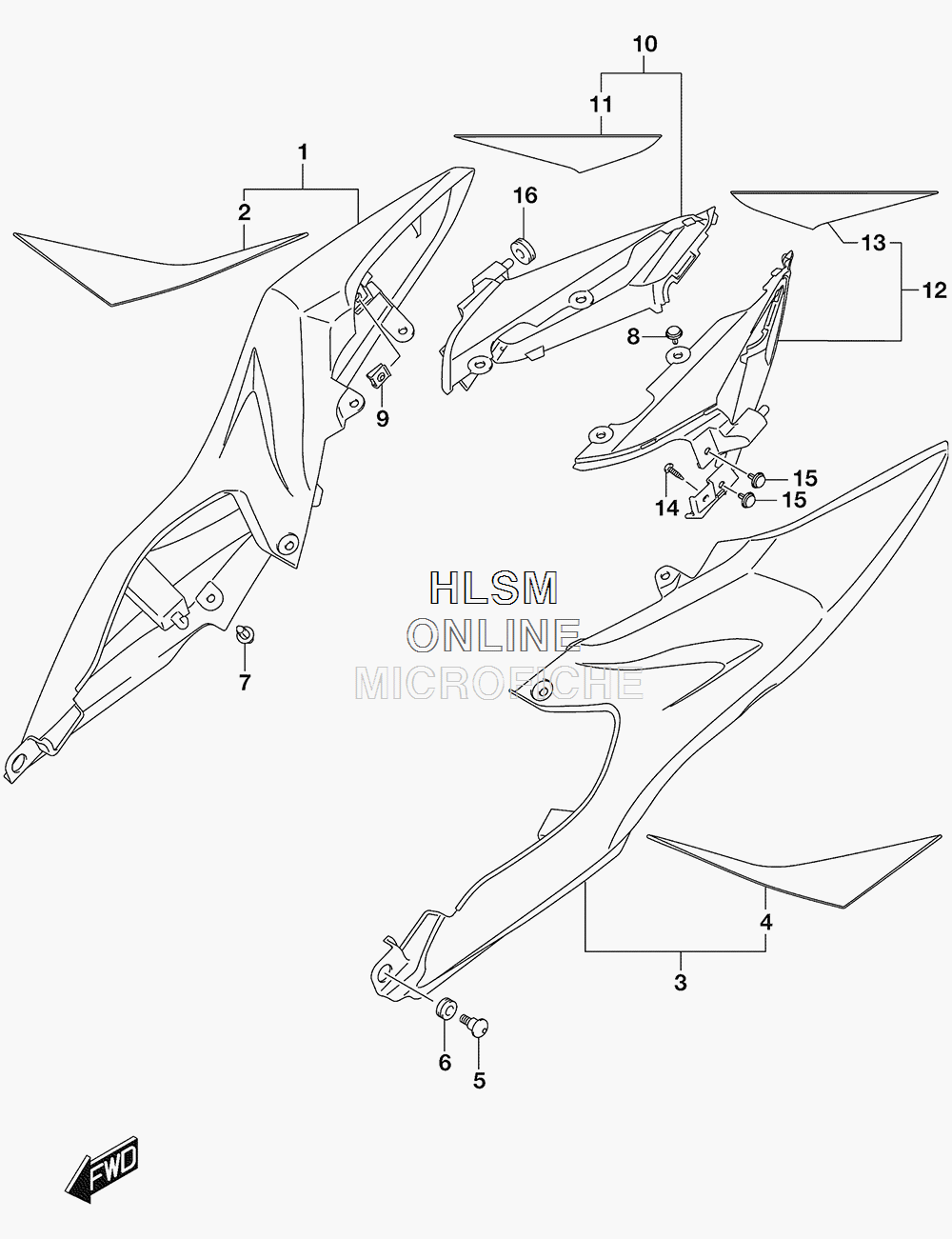

SIDE COVER (YSF) для Suzuki GSX-R1000 L5 - 2015 года выпуска`
-
№АртикулНазвание
-
147110-47H10-YSF COVER, FRAME RIGHT HAND (BLUE)COVER, FRAME RIGHT HAND (BLUE)
-
268135-47H10-AGQ ...TAPE, FRAME COVER RIGHT HAND...TAPE, FRAME COVER RIGHT HAND
-
347210-47H10-YSF COVER, FRAME LEFT HAND (BLUE)COVER, FRAME LEFT HAND (BLUE)
-
468145-47H10-AGQ ...TAPE, FRAME COVER LEFT HAND...TAPE, FRAME COVER LEFT HAND
-
547133-43H00 SCREW, FRONTSCREW, FRONT
-
609320-08021 CUSHIONCUSHION
-
709409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
809409-06328 CLIPCLIP
-
909148-05038 NUTNUT
-
1047610-47H00-YKV COVER, FRAME REAR RIGHT HAND (BLACK)COVER, FRAME REAR RIGHT HAND (BLACK)
-
1168135-47H20-A4Q ...TAPE, FRAME COVER REAR RIGHT HAND...TAPE, FRAME COVER REAR RIGHT HAND
-
1247620-47H00-YKV COVER, FRAME REAR LEFT HAND (BLACK)COVER, FRAME REAR LEFT HAND (BLACK)
-
1368145-47H20-A4Q ...TAPE, FRAME COVER REAR LEFT HAND...TAPE, FRAME COVER REAR LEFT HAND
-
1403541-0512A SCREWSCREW
-
1509409-06328 CLIPCLIP
-
1609320-06504 CUSHIONCUSHION
