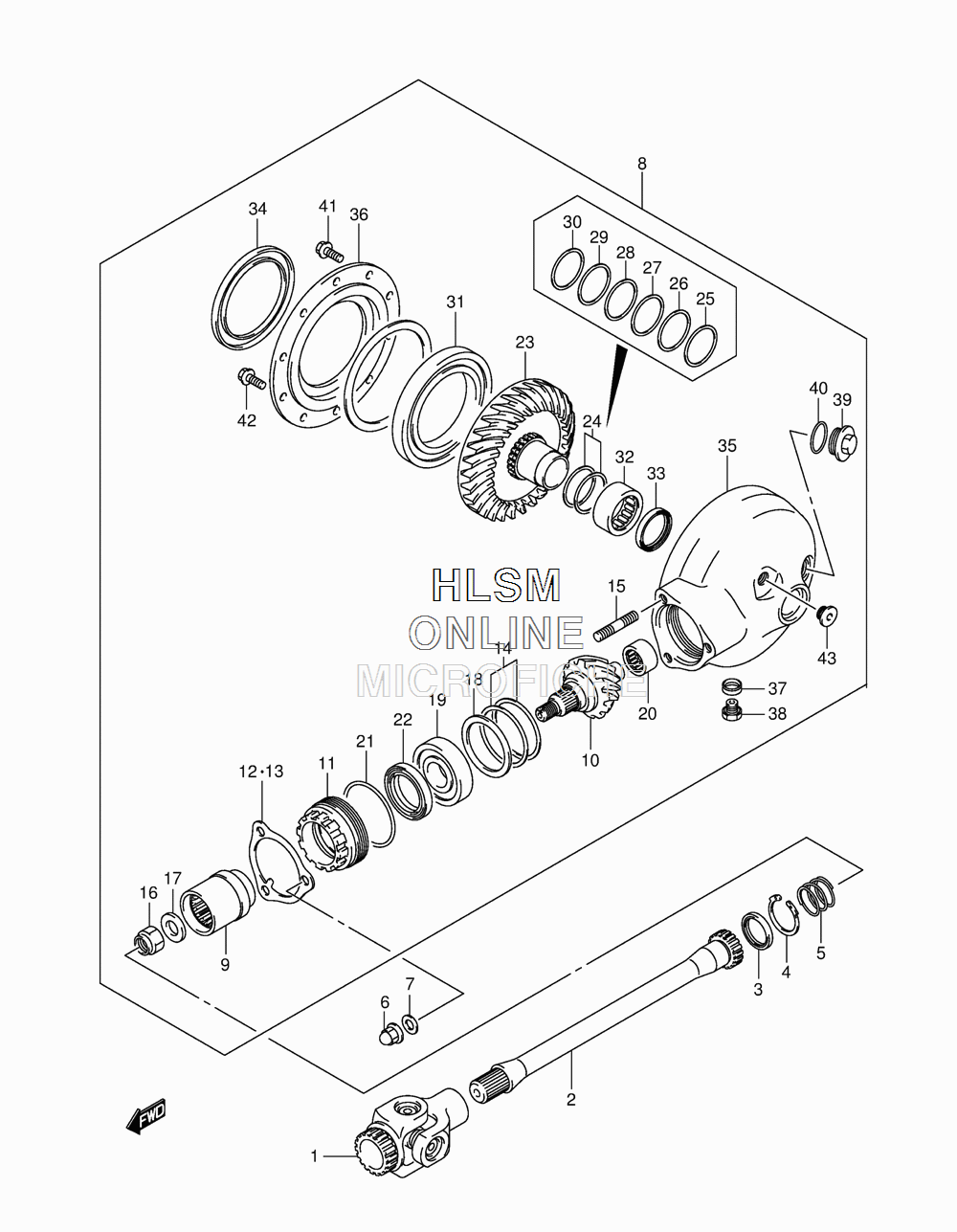

PROPELLER SHAFT/FINAL DRIVE GEAR (CANADA) для Suzuki VZR1800Z L4 BOULEVARD M109R LTD - 2014 года выпуска`
-
№АртикулНазвание
-
127100-48G20 YOKE, UNIVERSAL JOINTYOKE, UNIVERSAL JOINT
-
227151-48G20 SHAFT, PROPELLER (L:375)SHAFT, PROPELLER (L:375)
-
309283-30026 OIL SEAL (30X40.5X5.5)OIL SEAL (30X40.5X5.5)
-
409381-40003 CIRCLIPCIRCLIP
-
509440-30008 SPRINGSPRING
-
609159-10026 NUTNUT
-
709164-10008 WASHERWASHER
-
827300-48850-019 GEAR AND CASE SET, FINAL BEVEL (BLACK)GEAR AND CASE SET, FINAL BEVEL (BLACK)
-
927172-24A00 COUPLING, FINAL DRIVE GEARCOUPLING, FINAL DRIVE GEAR
-
1027311-24A03 GEAR, FINAL DRIVE BEVEL (NT:12)GEAR, FINAL DRIVE BEVEL (NT:12)
-
1127312-24A02 STOPPER, FINAL DRIVESTOPPER, FINAL DRIVE
-
1227313-38B00 PLATE, BEARING STOPPERPLATE, BEARING STOPPER
-
1327313-38B10 PLATE, BEARING STOPPERPLATE, BEARING STOPPER
-
1427445-24810 SHIM SET, FINAL DRIVE GEARSHIM SET, FINAL DRIVE GEAR
-
1509108-10106 STUD BOLTSTUD BOLT
-
1609159-16003 NUTNUT
-
1709160-16029 WASHER (16X29X4)WASHER (16X29X4)
-
1809160-54001 WASHER (54X68X1.5)WASHER (54X68X1.5)
-
1909262-28023 BEARING (28X68X18)BEARING (28X68X18)
-
2009263-20062 BEARING (20X34X18)BEARING (20X34X18)
-
2109280-64003 O RING (D:3.1,ID:63.9)O RING (D:3.1,ID:63.9)
-
2209283-47002 OIL SEAL (45.5X58X7)OIL SEAL (45.5X58X7)
-
2327320-48G00 GEAR, FINAL DRIVEN BEVELGEAR, FINAL DRIVEN BEVEL
-
2427326-48811 SHIM SET, FINAL DRIVEN GEARSHIM SET, FINAL DRIVEN GEAR
-
2509181-40011 SHIM (40X46.8X0.95)SHIM (40X46.8X0.95)
-
2609181-40013 SHIM (40X46.8X1.05)SHIM (40X46.8X1.05)
-
2709181-40014 SHIM (40X46.8X1.1)SHIM (40X46.8X1.1)
-
2809181-40176 SHIM (40X50X1.2)SHIM (40X50X1.2)
-
2909181-40182 SHIM (40X50X1.4)SHIM (40X50X1.4)
-
3009181-40212 SHIM (40X50X1.5)SHIM (40X50X1.5)
-
3109262-85001 BEARING (85X130X14)BEARING (85X130X14)
-
3209263-40016 BEARING (40X50X20)BEARING (40X50X20)
-
3309283-38026 OIL SEAL (38X46X6)OIL SEAL (38X46X6)
-
3409289-85001 OIL SEAL (85X110X11)OIL SEAL (85X110X11)
-
3527450-48G70-019 CASE, FINAL GEAR (SILVER)CASE, FINAL GEAR (SILVER)
-
3627461-38B00 CASE, FINAL GEAR BEARINGCASE, FINAL GEAR BEARING
-
3709168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
3809247-14002 PLUG (MAGNET)PLUG (MAGNET)
-
3909259-30007 PLUG (30X9)PLUG (30X9)
-
4009280-26006 O RING (D:3.1,ID:26.4)O RING (D:3.1,ID:26.4)
-
4101550-0825A BOLTBOLT
-
4201550-1025A BOLTBOLT
-
4309248-16012 PLUG (16X8)PLUG (16X8)
