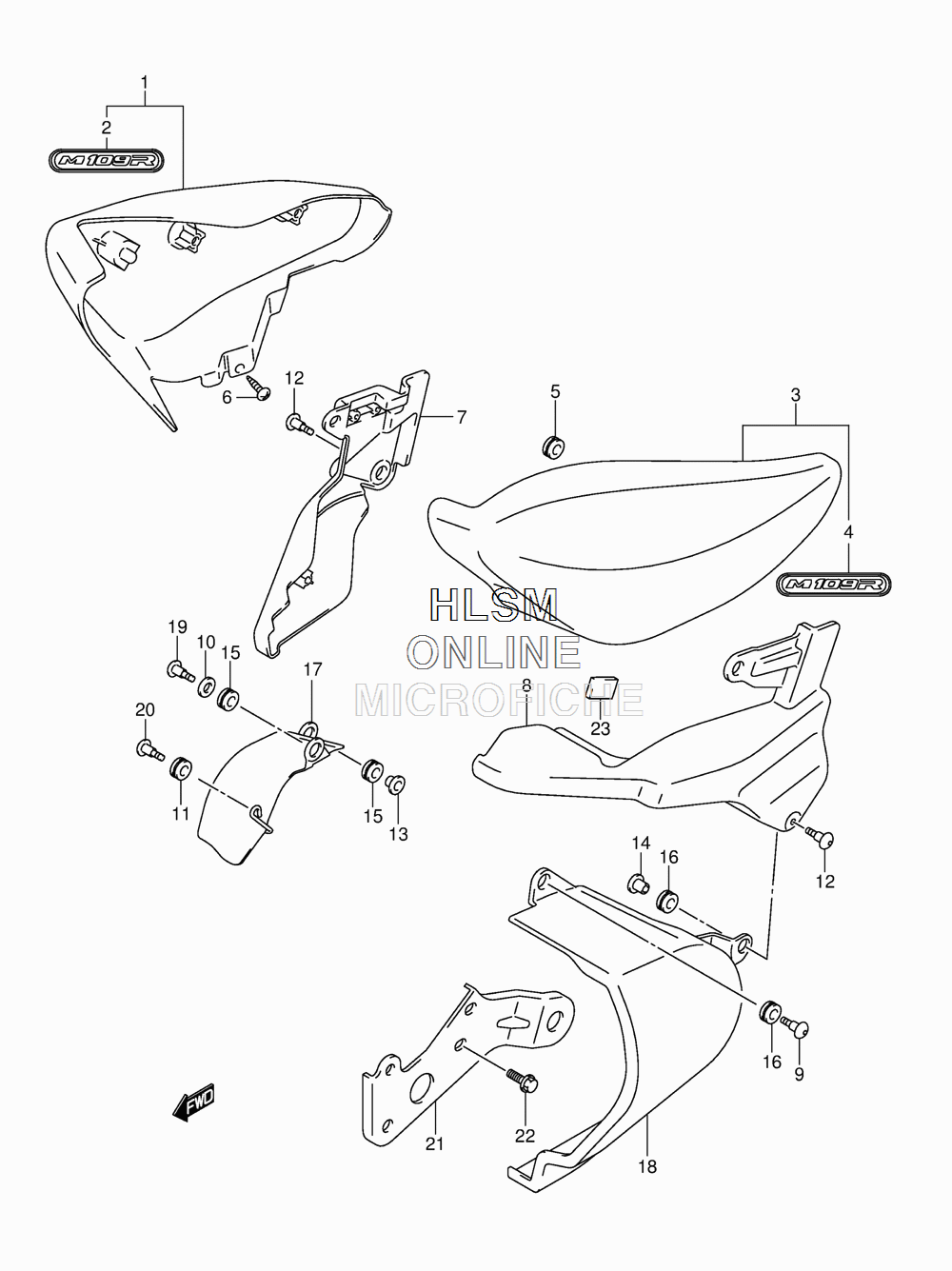

SIDE COVER для Suzuki VZR1800 L4 BOULEVARD - 2014 года выпуска`
-
№АртикулНазвание
-
147110-48G00-YVB COVER, FRAME RIGHT HAND (BLACK)COVER, FRAME RIGHT HAND (BLACK)
-
268131-48G00 EMBLEM ''M109R''EMBLEM ''M109R''
-
347210-48G00-YVB COVER, FRAME LEFT HAND (BLACK)COVER, FRAME LEFT HAND (BLACK)
-
468131-48G00 EMBLEM ''M109R''EMBLEM ''M109R''
-
509320-08018 CUSHIONCUSHION
-
603541-0516A SCREWSCREW
-
747121-48G00 COVER, SIDE LOWER RIGHT HANDCOVER, SIDE LOWER RIGHT HAND
-
847221-48G00 COVER, SIDE LOWER LEFT HANDCOVER, SIDE LOWER LEFT HAND
-
909139-06126 SCREW (6X20)SCREW (6X20)
-
1009160-10123 WASHER (10.5X20X2.3)WASHER (10.5X20X2.3)
-
1109320-09501 CUSHIONCUSHION
-
1209139-06029 SCREW (6X25)SCREW (6X25)
-
1309180-06319 SPACER (6.5X10X11.6)SPACER (6.5X10X11.6)
-
1409169-06075 WASHERWASHER
-
1509320-08021 CUSHIONCUSHION
-
1609320-08070 CUSHIONCUSHION
-
1747130-48G00 COVER, LOWER RIGHT HANDCOVER, LOWER RIGHT HAND
-
1847231-48GB0 COVER, LOWER LEFT HANDCOVER, LOWER LEFT HAND
-
1909139-06126 SCREW (6X20)SCREW (6X20)
-
2009139-06126 SCREW (6X20)SCREW (6X20)
-
2147250-48G00 BRACKET, LOWER COVER LEFT HANDBRACKET, LOWER COVER LEFT HAND
-
2201550-0612A BOLTBOLT
-
2347161-19C00 CUSHION, SIDE COVER LEFT HANDCUSHION, SIDE COVER LEFT HAND
