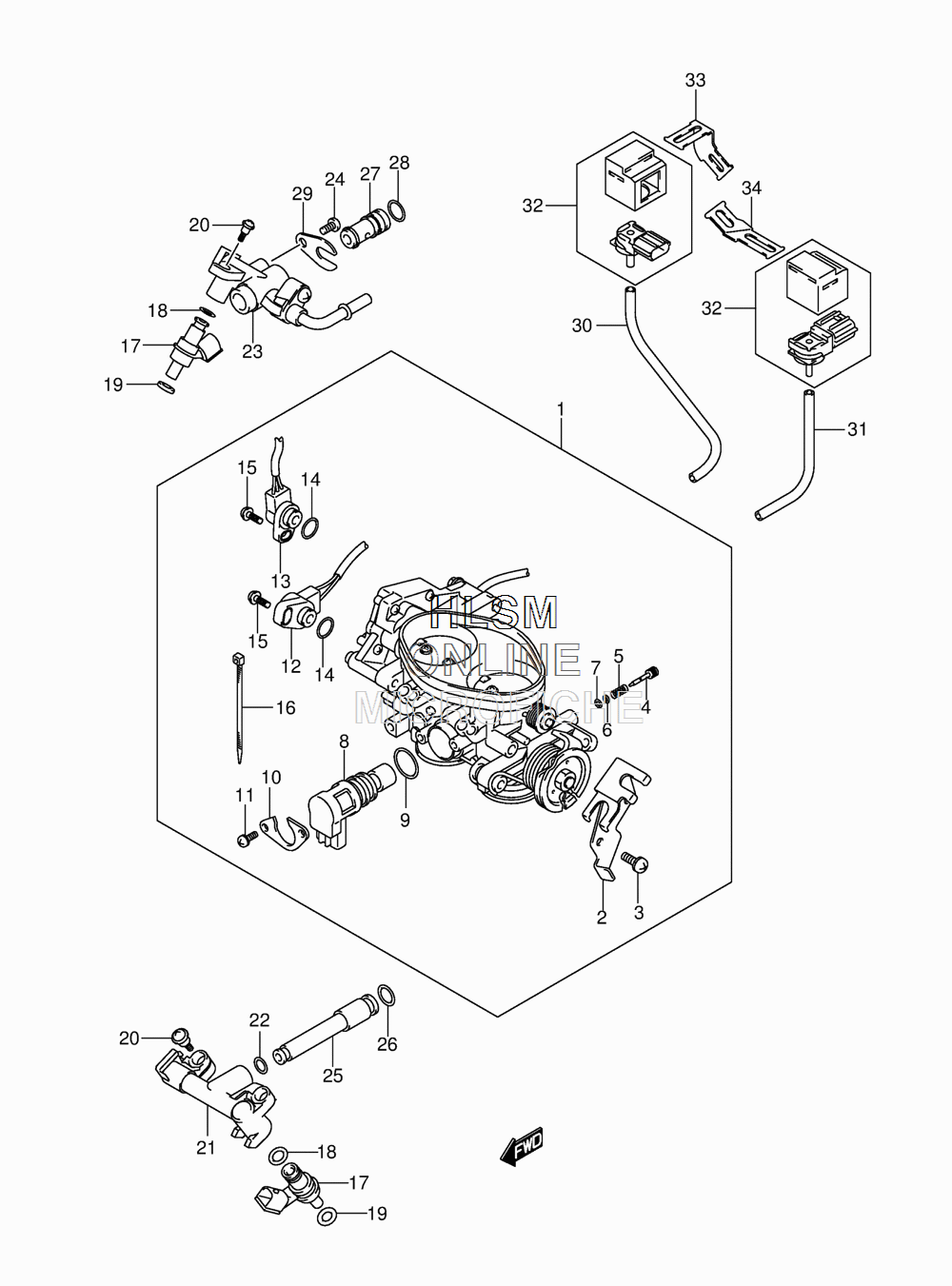

CARBURETOR - THROTTLE BODY (CANADA) для Suzuki VL800T L4 - 2014 года выпуска`
-
№АртикулНазвание
-
113401-41F40 BODY, ASSY THROTTLEBODY, ASSY THROTTLE
-
213565-41F20 PLATE, STAYPLATE, STAY
-
313601-21H00 SCREWSCREW
-
413269-18G00 SCREW, AIR ADJUSTSCREW, AIR ADJUST
-
513271-43E00 SPRINGSPRING
-
613291-26E00 WASHERWASHER
-
713295-26E00 O RINGO RING
-
818117-15H12 VALVE ASSY, ISCVALVE ASSY, ISC
-
918119-05H00 O RINGO RING
-
1013428-15H00 PLATE, ISC VALVEPLATE, ISC VALVE
-
1113605-15H00 SCREWSCREW
-
1213580-40F21 SENSOR ASSY, THROTTLE NO.1SENSOR ASSY, THROTTLE NO.1
-
1313580-41F01 SENSOR ASSY, THROTTLE SUBSENSOR ASSY, THROTTLE SUB
-
1413575-40F00 O RINGO RING
-
1513605-40F00 SCREWSCREW
-
1609407-14407 CLAMP (L:145)CLAMP (L:145)
-
1715710-26GB0 INJECTOR ASSYINJECTOR ASSY
-
1815721-21H00 O RINGO RING
-
1915722-21H00 O RINGO RING
-
2013602-34F50 SCREW, THROTTLE COVERSCREW, THROTTLE COVER
-
2113473-41FA0 PIPE SET, FUEL FRONTPIPE SET, FUEL FRONT
-
2215721-24F00 O RINGO RING
-
2313473-41FB0 PIPE SET, FUEL REARPIPE SET, FUEL REAR
-
2413602-10F10 SCREWSCREW
-
2513473-41FC0 JOINTJOINT
-
2615721-10G00 O RINGO RING
-
2713474-41F20 PLUG, STRAIGHTPLUG, STRAIGHT
-
2815721-41F20 O RINGO RING
-
2913475-41F20 PLATE, STAYPLATE, STAY
-
3013683-41FA0 HOSEHOSE
-
3113683-41FD0 TUBE, RUBBERTUBE, RUBBER
-
3218590-32G00 SENSOR, PRESSURESENSOR, PRESSURE
-
3318598-41F00 BRACKET, BOOST SENSOR FRONTBRACKET, BOOST SENSOR FRONT
-
3418599-39G00 BRACKET, BOOST SENSOR REARBRACKET, BOOST SENSOR REAR
