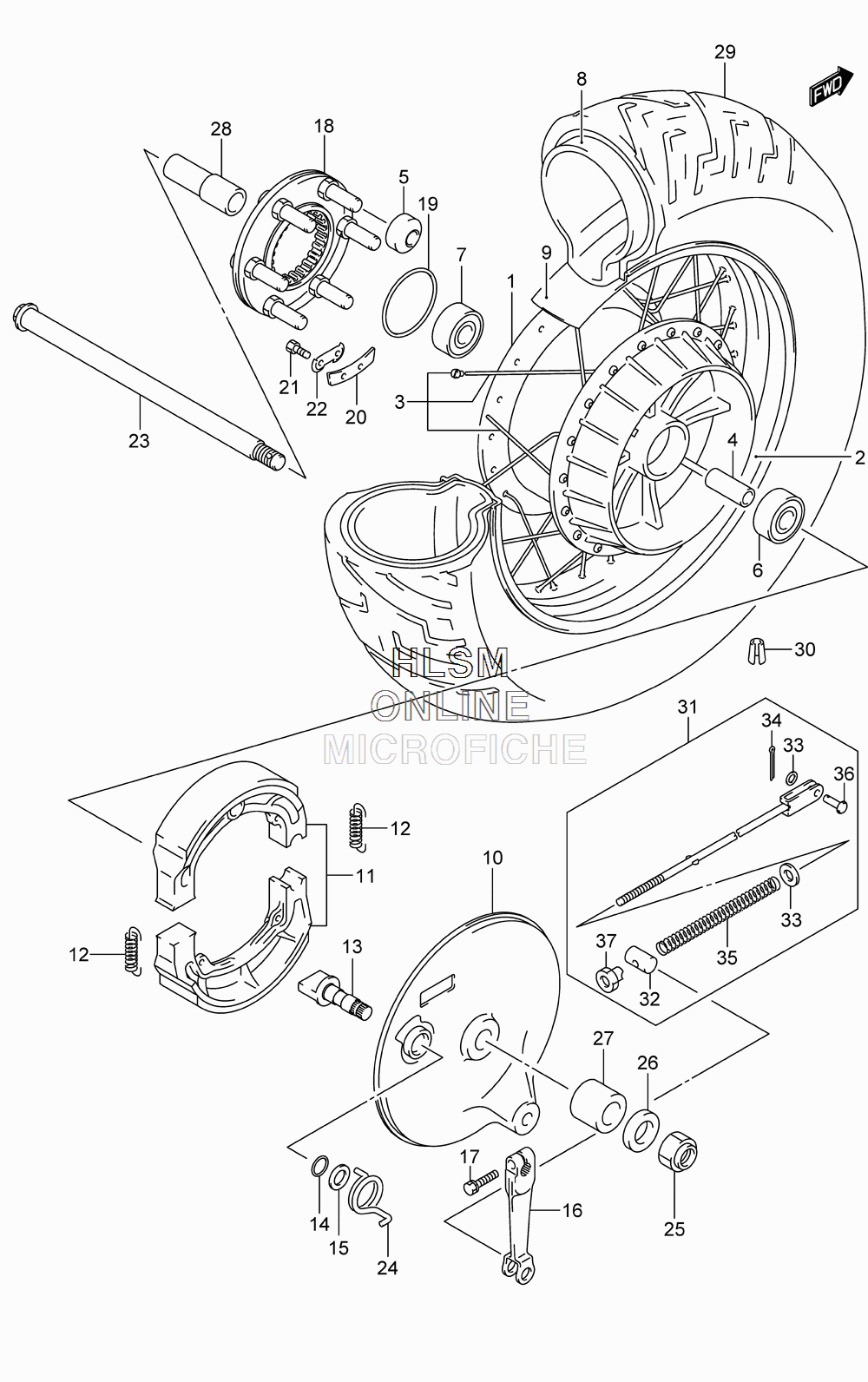

WHEEL - REAR (CANADA) для Suzuki VL800 L4 - 2014 года выпуска`
-
№АртикулНазвание
-
164110-41F20 HUB, REARHUB, REAR
-
265311-41F00 RIM, REAR WHEEL (15M/CXMT4.00)RIM, REAR WHEEL (15M/CXMT4.00)
-
365320-41F00 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
409180-17092 SPACER (17.5X25X113)SPACER (17.5X25X113)
-
509319-12019 BUSHBUSH
-
608123-63037 BEARINGBEARING
-
708143-63037 BEARINGBEARING
-
865200-41F00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
965261-41F10 PROTECTOR, WHEEL INNER TUBEPROTECTOR, WHEEL INNER TUBE
-
1064210-38A70-20H PANEL, REAR BRAKE ANCHOR (SILVER)PANEL, REAR BRAKE ANCHOR (SILVER)
-
1164400-38820 SHOE SET, BRAKESHOE SET, BRAKE
-
1255420-30000 SPRING, SHOESPRING, SHOE
-
1364441-38A20 CAM, BRAKECAM, BRAKE
-
1409280-15003 O RING (D:2.4,ID:14.8)O RING (D:2.4,ID:14.8)
-
1509160-15048 WASHER (15.5X24X1.6)WASHER (15.5X24X1.6)
-
1664451-38A40 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
1701570-06257 BOLTBOLT
-
1864680-45113 JOINT, HUB DRIVENJOINT, HUB DRIVEN
-
1909280-65003 O RING (D:2.1,ID:65)O RING (D:2.1,ID:65)
-
2064677-45110 WASHER, THRUSTWASHER, THRUST
-
2109119-06049 BOLT (6X16)BOLT (6X16)
-
2209169-06030 WASHERWASHER
-
2364711-19F00 AXLE, REAR (L:302)AXLE, REAR (L:302)
-
2409448-33006 SPRINGSPRING
-
2508319-2116A NUTNUT
-
2609160-17050 WASHER (17X30X3.2)WASHER (17X30X3.2)
-
2764741-41F00 SPACER, RIGHT HANDSPACER, RIGHT HAND
-
2864772-34201 SPACER, LEFT HANDSPACER, LEFT HAND
-
2965100-41F00 TIRE, REAR (170/80-15M/C 77H)TIRE, REAR (170/80-15M/C 77H)
-
3055411-26G00 BALANCER, WHEELBALANCER, WHEEL
-
3055413-41F00 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
-
3143300-41F00 ROD ASSY, REAR BRAKEROD ASSY, REAR BRAKE
-
3209209-13018 PIN (13X18)PIN (13X18)
-
3308322-0106B WASHERWASHER
-
3404111-2015A COTTER PINCOTTER PIN
-
3509440-09004 SPRINGSPRING
-
3609200-06013 PIN (10X16)PIN (10X16)
-
3709150-06010 NUTNUT
