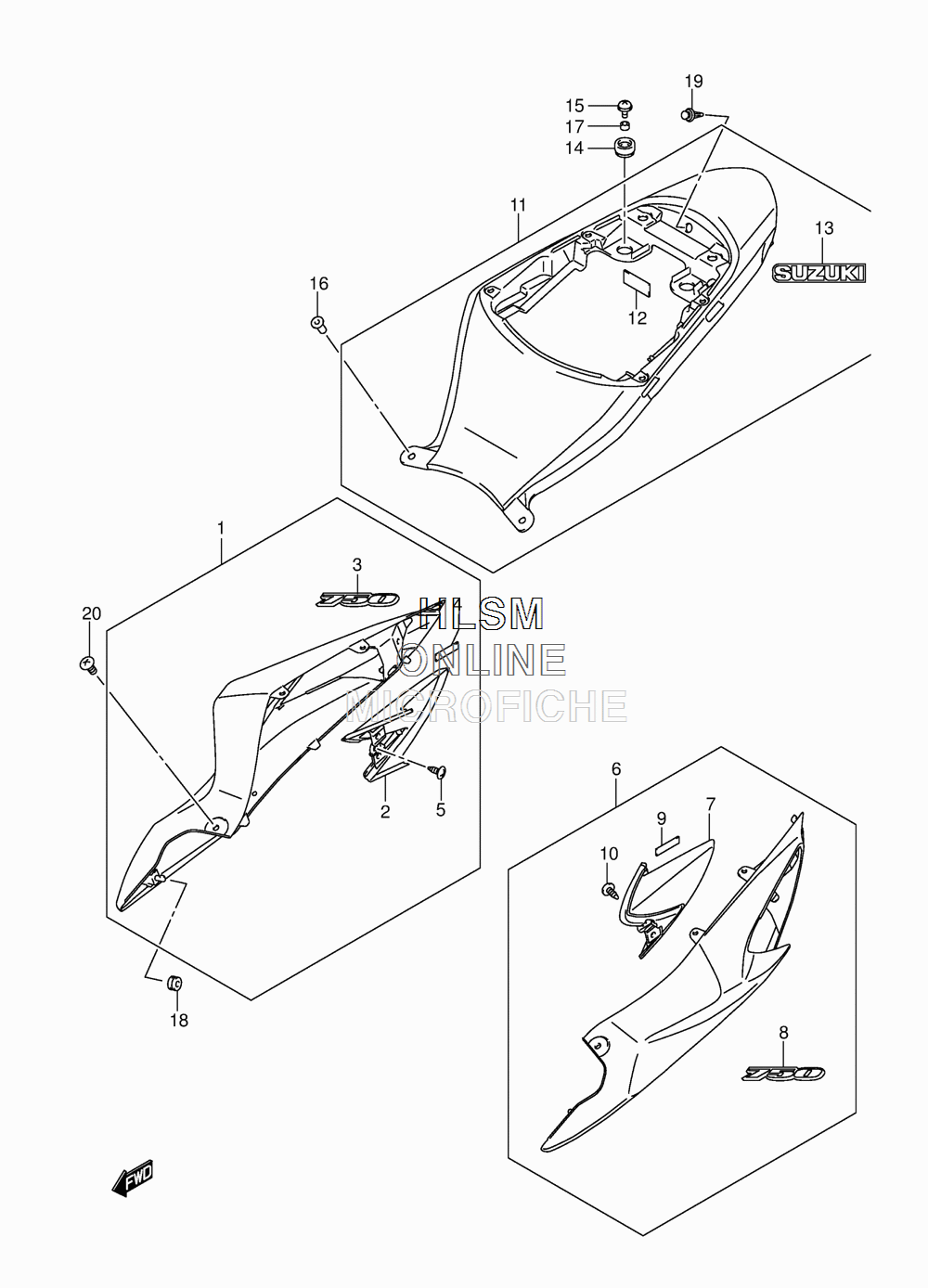

SIDE COVER для Suzuki GSX-R750 L4 - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    47100-15J10-YWW COVER, FRAME RIGHT HAND (WHITE) FOR AGQ (BLUE/WHITE)
    COVER, FRAME RIGHT HAND (WHITE) FOR AGQ (BLUE/WHITE)
  • 1
    47100-15J10-YVZ COVER, FRAME RIGHT HAND (RED) FOR JSP (BLACK/RED)
    COVER, FRAME RIGHT HAND (RED) FOR JSP (BLACK/RED)
  • 1
    47100-15J10-RB5 COVER, FRAME RIGHT HAND (WHITE) FOR AR6 (BLACK/WHITE)
    COVER, FRAME RIGHT HAND (WHITE) FOR AR6 (BLACK/WHITE)
  • 2
    47611-14J00 COVER, FRAME
    COVER, FRAME
  • 3
    68131-15J00-JWH EMBLEM, ''750'' (ORANGE/BLACK) FOR YWW (BLUE/WHITE)
    EMBLEM, ''750'' (ORANGE/BLACK) FOR YWW (BLUE/WHITE)
  • 3
    68131-15J00-G3S EMBLEM, ''750'' (BLACK/SILVER) FOR YVZ (BLACK/RED)
    EMBLEM, ''750'' (BLACK/SILVER) FOR YVZ (BLACK/RED)
  • 3
    68131-15J00-CVR EMBLEM, ''750'' (BLACK/SILVER) FOR RB5 (BLACK/WHITE)
    EMBLEM, ''750'' (BLACK/SILVER) FOR RB5 (BLACK/WHITE)
  • 4
    94443-06G00 TAPE (6X25X0.13)
    TAPE (6X25X0.13)
  • 5
    03541-0512A SCREW
    SCREW
  • 6
    47200-15J10-YWW COVER, FRAME LEFT HAND (WHITE) FOR AGQ (BLUE/WHITE)
    COVER, FRAME LEFT HAND (WHITE) FOR AGQ (BLUE/WHITE)
  • 6
    47200-15J10-YVZ COVER, FRAME LEFT HAND (RED) FOR JSP (BLACK/RED)
    COVER, FRAME LEFT HAND (RED) FOR JSP (BLACK/RED)
  • 6
    47200-15J10-RB5 COVER, FRAME LEFT HAND (WHITE) FOR RB5 (BLACK/WHITE)
    COVER, FRAME LEFT HAND (WHITE) FOR RB5 (BLACK/WHITE)
  • 7
    47621-14J00 COVER, FRAME
    COVER, FRAME
  • 8
    68131-15J00-JWH EMBLEM, ''750'' (ORANGE/BLACK) FOR YWW (BLUE/WHITE)
    EMBLEM, ''750'' (ORANGE/BLACK) FOR YWW (BLUE/WHITE)
  • 8
    68131-15J00-G3S EMBLEM, ''750'' (GRAY/BLACK) FOR YVZ (BLACK/RED)
    EMBLEM, ''750'' (GRAY/BLACK) FOR YVZ (BLACK/RED)
  • 8
    68131-15J00-CVR EMBLEM, ''750'' (GRAY/BLACK) FOR RB5 (BLACK/WHITE)
    EMBLEM, ''750'' (GRAY/BLACK) FOR RB5 (BLACK/WHITE)
  • 9
    94443-06G00 TAPE (6X25X0.13)
    TAPE (6X25X0.13)
  • 10
    03541-0512A SCREW
    SCREW
  • 11
    47300-14J00 COVER, FRAME CENTER (BLUE)
    COVER, FRAME CENTER (BLUE)
  • 12
    48128-14FA0 CUSHION
    CUSHION
  • 13
    94443-06G00 TAPE
    TAPE
  • 14
    47312-37H00 CUSHION, CENTER
    CUSHION, CENTER
  • 15
    09136-06056 SCREW (6X16)
    SCREW (6X16)
  • 16
    09159-05019 NUT
    NUT
  • 17
    09180-06283 SPACER (6.5X10X7)
    SPACER (6.5X10X7)
  • 18
    09320-06504 CUSHION
    CUSHION
  • 19
    09409-06314-5PK CLIP (BLACK)
    CLIP (BLACK)
  • 20
    02142-1520B SCREW
    SCREW
