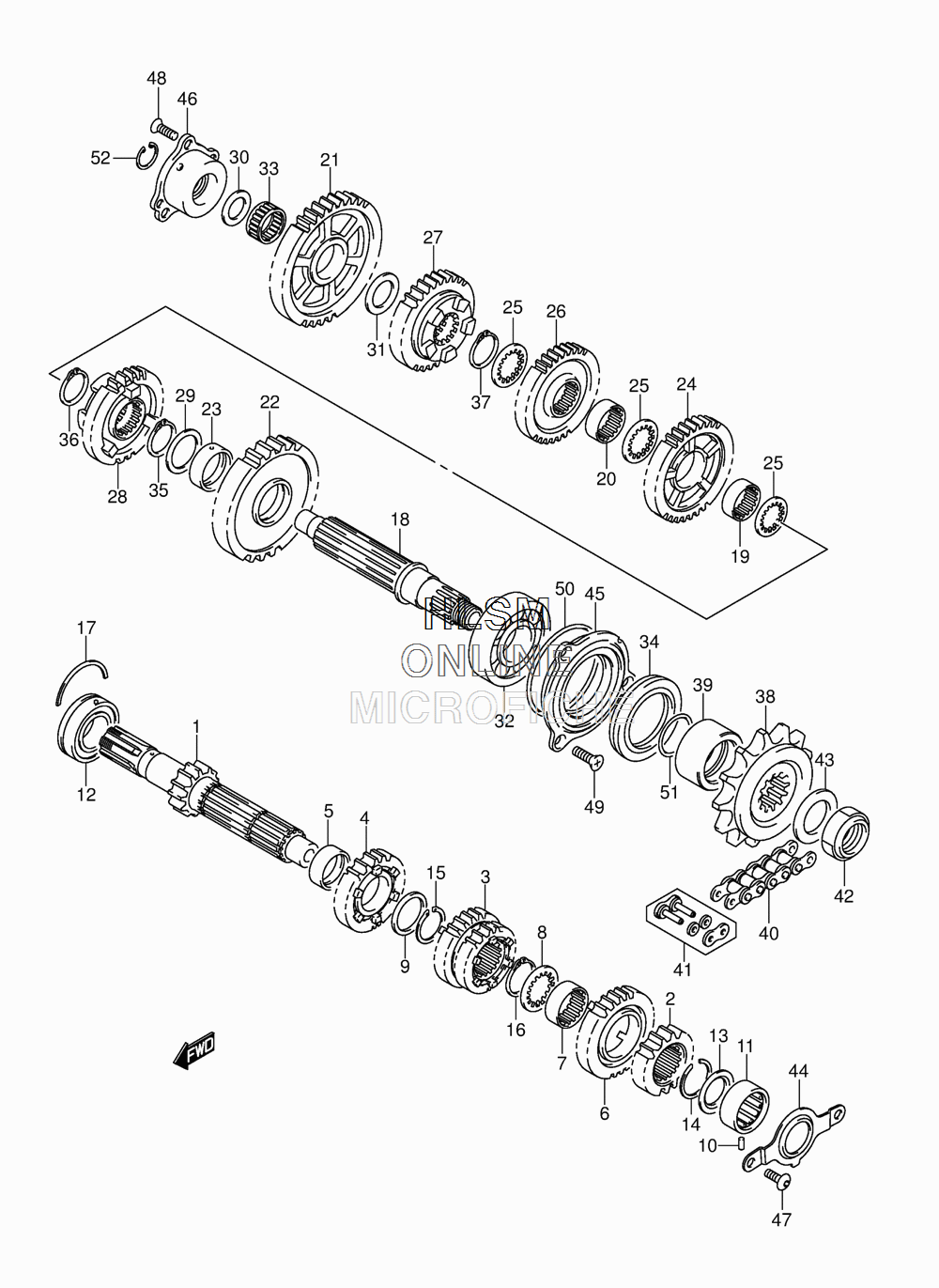

TRANSMISSION для Suzuki GSX-1000RZ L4 - 2014 года выпуска`
-
№АртикулНазвание
-
124120-47H10 SHAFT, CNTR (NT:16)SHAFT, CNTR (NT:16)
-
224221-40F30 GEAR, 2ND DRIVE (NT:19)GEAR, 2ND DRIVE (NT:19)
-
324231-47H00 GEAR, 3RD AND 4TH DRIVE (NT:21/24)GEAR, 3RD AND 4TH DRIVE (NT:21/24)
-
424251-47H00 GEAR, 5TH DRIVE (NT:25)GEAR, 5TH DRIVE (NT:25)
-
524252-24F10 BUSH, 5TH DRIVE GEARBUSH, 5TH DRIVE GEAR
-
624261-47H00 GEAR, 6TH DRIVE (NT:26)GEAR, 6TH DRIVE (NT:26)
-
724262-24F20 BUSH, 6TH DRIVE GEARBUSH, 6TH DRIVE GEAR
-
809167-27001 LOCK WASHERLOCK WASHER
-
909160-27008 WASHER (27X36X1)WASHER (27X36X1)
-
1004221-07129 PIN 7 X 12PIN 7 X 12
-
1109263-20103 BEARING (20X34X16)BEARING (20X34X16)
-
1209267-25013 BEARING (25X52X20.6)BEARING (25X52X20.6)
-
1309285-20006 OIL SEAL (20X31.2X2.7)OIL SEAL (20X31.2X2.7)
-
1409380-27004 CIRCLIPCIRCLIP
-
1509380-27006 CIRCLIPCIRCLIP
-
1609380-27006 CIRCLIPCIRCLIP
-
1709390-58001 C RINGC RING
-
1824131-47H00 SHAFT, DRIVESHAFT, DRIVE
-
1924332-24F20 BUSH, 3RD DRIVEN GEARBUSH, 3RD DRIVEN GEAR
-
2024332-24F20 BUSH, 4TH DRIVEN GEARBUSH, 4TH DRIVEN GEAR
-
2124311-47H00 GEAR, 1ST DRIVEN (NT:41)GEAR, 1ST DRIVEN (NT:41)
-
2224321-47H00 GEAR, 2ND DRIVEN (NT:39)GEAR, 2ND DRIVEN (NT:39)
-
2324322-24F20 BUSH, 2ND DRIVEN GEARBUSH, 2ND DRIVEN GEAR
-
2424331-47H10 GEAR, 3RD DRIVEN (NT:36)GEAR, 3RD DRIVEN (NT:36)
-
2524333-47H00 WASHER, 3RD AND 4TH DRIVEWASHER, 3RD AND 4TH DRIVE
-
2624341-47H10 GEAR, 4TH DRIVEN (NT:36)GEAR, 4TH DRIVEN (NT:36)
-
2724351-47H00 GEAR, 5TH DRIVEN (NT:34)GEAR, 5TH DRIVEN (NT:34)
-
2824361-47H00 GEAR, 6TH DRIVEN (NT:33)GEAR, 6TH DRIVEN (NT:33)
-
2909181-30167 SHIM (30X40X1)SHIM (30X40X1)
-
3009181-22223 SHIM (22X34X1)SHIM (22X34X1)
-
3109181-24005 SHIM (24X34X1)SHIM (24X34X1)
-
3209267-30014 BEARING (30X62X23.8)BEARING (30X62X23.8)
-
3309263-24030 BEARING (24X28X13)BEARING (24X28X13)
-
3409283-38027 OIL SEAL (38X56X7)OIL SEAL (38X56X7)
-
3509380-30009 CIRCLIPCIRCLIP
-
3609380-30009 CIRCLIPCIRCLIP
-
3709380-30009 CIRCLIPCIRCLIP
-
3827510-15H10 SPROCKET, ENGINESPROCKET, ENGINE
-
3927531-47H00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
4027600-40F30-114 CHAIN ASSY, DRIVE (DID50VAZ BUANDB)CHAIN ASSY, DRIVE (DID50VAZ BUANDB)
-
4127620-40F30 JOINT SET, DRIVE CHAINJOINT SET, DRIVE CHAIN
-
4209159-22008 NUTNUT
-
4309181-27016 SHIM (27X42X1.5)SHIM (27X42X1.5)
-
4424741-01H00 RETAINER, CL PUSH RODRETAINER, CL PUSH ROD
-
4524751-47H00 RETAINER, DRIVE SHAFT BRG, LRETAINER, DRIVE SHAFT BRG, L
-
4624771-01820 HOUSING, DRIVE SHAFT SETHOUSING, DRIVE SHAFT SET
-
4709139-06153 SCREW (6X13)SCREW (6X13)
-
4809139-06159 SCREW (6X20)SCREW (6X20)
-
4909139-06159 SCREW (6X20)SCREW (6X20)
-
5009280-62004 O RING (D:1.9,ID:61.5)O RING (D:1.9,ID:61.5)
-
5109280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
5208331-41349 CIRCLIPCIRCLIP
