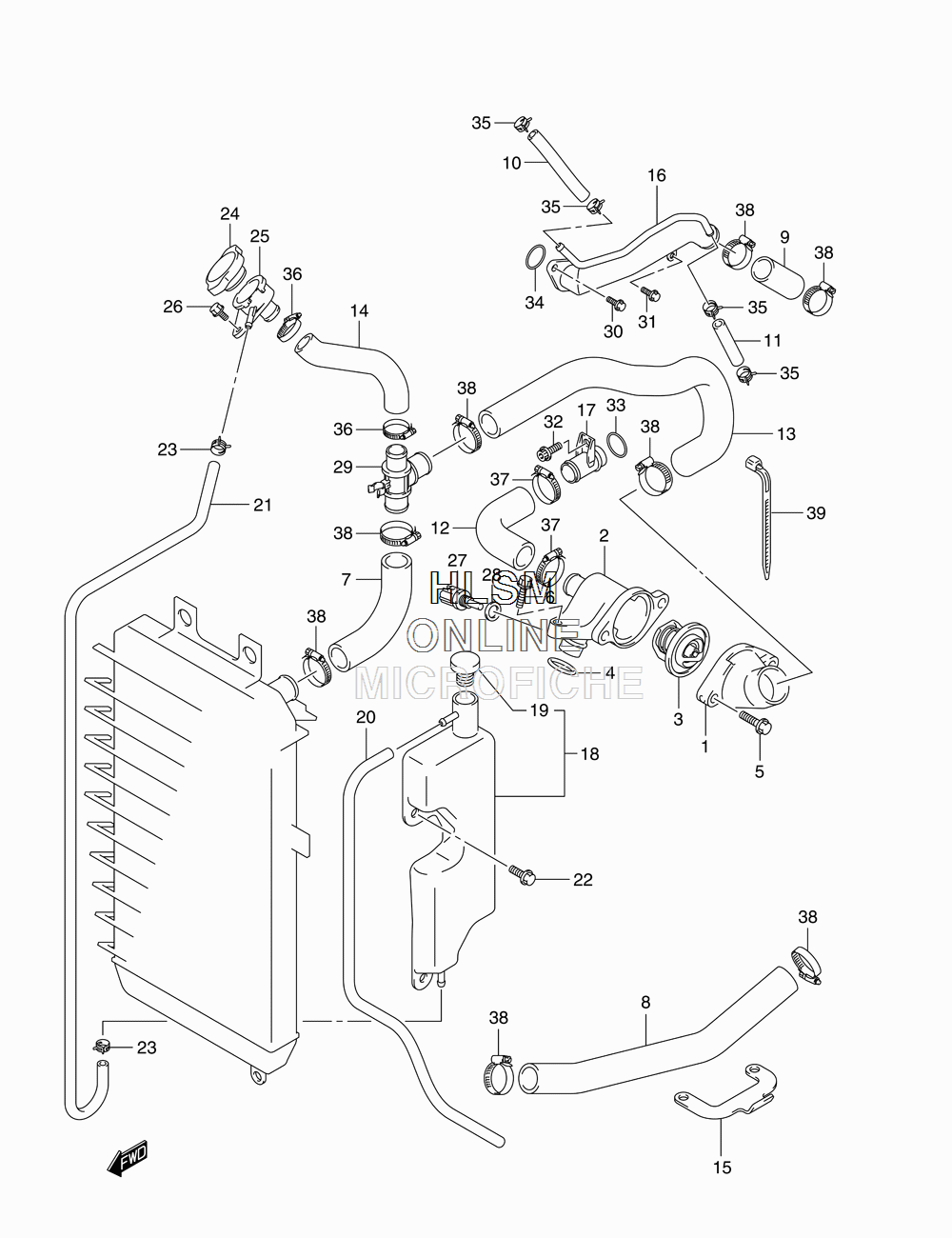

RADIATOR HOSE W/ RESERVOIR для Suzuki VZR1800Z L3 - 2013 года выпуска
-
№АртикулНазвание
-
117661-48G10 COVER, THERMOSTATCOVER, THERMOSTAT
-
217662-48G00 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
317670-06G50 THERMOSTAT, WATERTHERMOSTAT, WATER
-
409280-18008 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
501550-0620A BOLTBOLT
-
601547-0625A BOLTBOLT
-
717851-48G00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
817852-48G00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
917853-48G00 HOSE, CYLINDER INLETHOSE, CYLINDER INLET
-
1017854-48G00 HOSE, WATER BYPASS UPPERHOSE, WATER BYPASS UPPER
-
1117855-48G00 HOSE, WATER BYPASS LOWERHOSE, WATER BYPASS LOWER
-
1217856-48G00 HOSE, REAR CYL HEAD OUTLETHOSE, REAR CYL HEAD OUTLET
-
1317857-48G01 HOSE, THERMOSTAT OUTLETHOSE, THERMOSTAT OUTLET
-
1417858-48G00 HOSE, CONDUCTIONHOSE, CONDUCTION
-
1517859-48G00 BRACKETBRACKET
-
1617860-48G00 PIPE, CYL WATER INLETPIPE, CYL WATER INLET
-
1717890-06G20 UNIONUNION
-
1817910-48G00 TANK ASSY, RESERVOIR (INCL. 19)TANK ASSY, RESERVOIR (INCL. 19)
-
1917931-02FA0 CAPCAP
-
2009352-50901-00B HOSE (5X9X2000)HOSE (5X9X2000)
-
2117981-48G00 HOSE, TANK INLETHOSE, TANK INLET
-
2209111-06085 BOLT (6X12)BOLT (6X12)
-
2309401-08411 CLIPCLIP
-
2417730-08J00 CAPCAP
-
2517791-24D00 CONDUCTIONCONDUCTION
-
2601550-0612A BOLTBOLT
-
2713650-10G00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
2809168-12017 GASKET (12X17X1)GASKET (12X17X1)
-
2917891-48G00 JOINT, 3 WAYJOINT, 3 WAY
-
3009103-06274 BOLT (6X16)BOLT (6X16)
-
3109103-06280 BOLT (6X12)BOLT (6X12)
-
3207130-0612A BOLTBOLT
-
3309280-18008 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
3409280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
3509401-12409 CLAMPCLAMP
-
3609402-28513 CLAMPCLAMP
-
3709402-32512 CLAMPCLAMP
-
3809402-38512 CLAMPCLAMP
-
3909407-25401 CLAMP (L:235)CLAMP (L:235)
