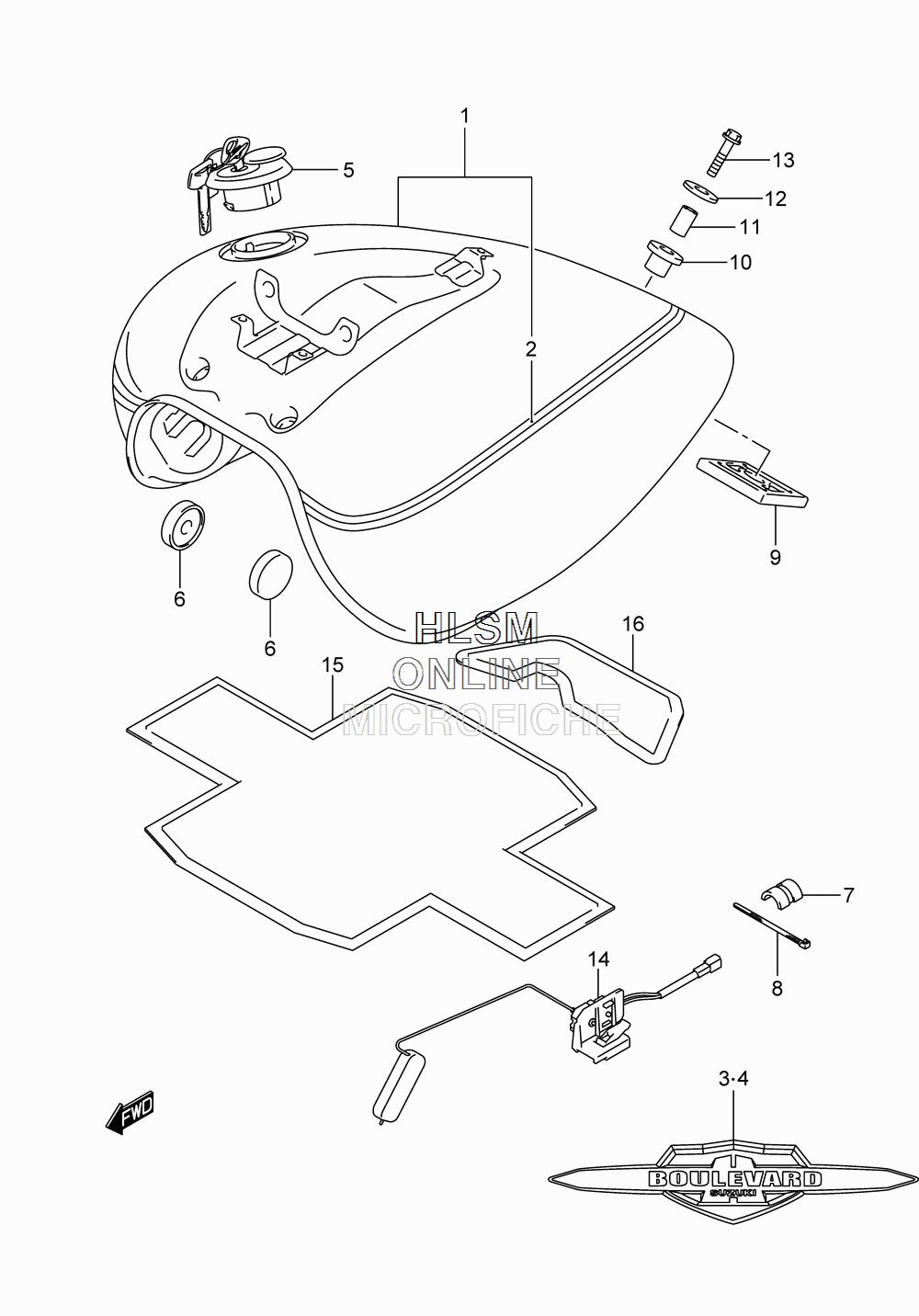

FUEL TANK (CANADA ONLY) для Suzuki VL800T L3 - 2013 года выпуска`
-
№АртикулНазвание
-
144100-43HD0-FGF TANK ASSY, FUEL (FGF- WHITE/SILVER)TANK ASSY, FUEL (FGF- WHITE/SILVER)
-
144100-43HD0-HYA TANK ASSY, FUEL (HYA - RED/BLACK)TANK ASSY, FUEL (HYA - RED/BLACK)
-
268110-41F30-AGU ...TAPE SET (BLACK FOR FGF)...TAPE SET (BLACK FOR FGF)
-
268110-41F30-AGV ...TAPE SET (NONE FOR HYA)...TAPE SET (NONE FOR HYA)
-
368111-41F31 EMBLEM, RIGHTEMBLEM, RIGHT
-
468121-41F31 EMBLEM, LEFTEMBLEM, LEFT
-
544200-41830 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
609329-10007 CUSHIONCUSHION
-
744541-14F10 CUSHION, SIDECUSHION, SIDE
-
809407-25402 CLAMP (L:248)CLAMP (L:248)
-
944542-41F00 CUSHION, REAR LOWERCUSHION, REAR LOWER
-
1044541-41F01 CUSHION, REAR UPPERCUSHION, REAR UPPER
-
1109180-08057 SPACER (8.2X12.5X23.5)SPACER (8.2X12.5X23.5)
-
1209160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
1301550-0835A BOLTBOLT
-
1434810-41F11 GUAGE ASSY, FUEL TANKGUAGE ASSY, FUEL TANK
-
1544192-39G00 SHIELD, HEAT NO.1SHIELD, HEAT NO.1
-
1644191-43H00 SHIELD, HEAT NO.2SHIELD, HEAT NO.2
