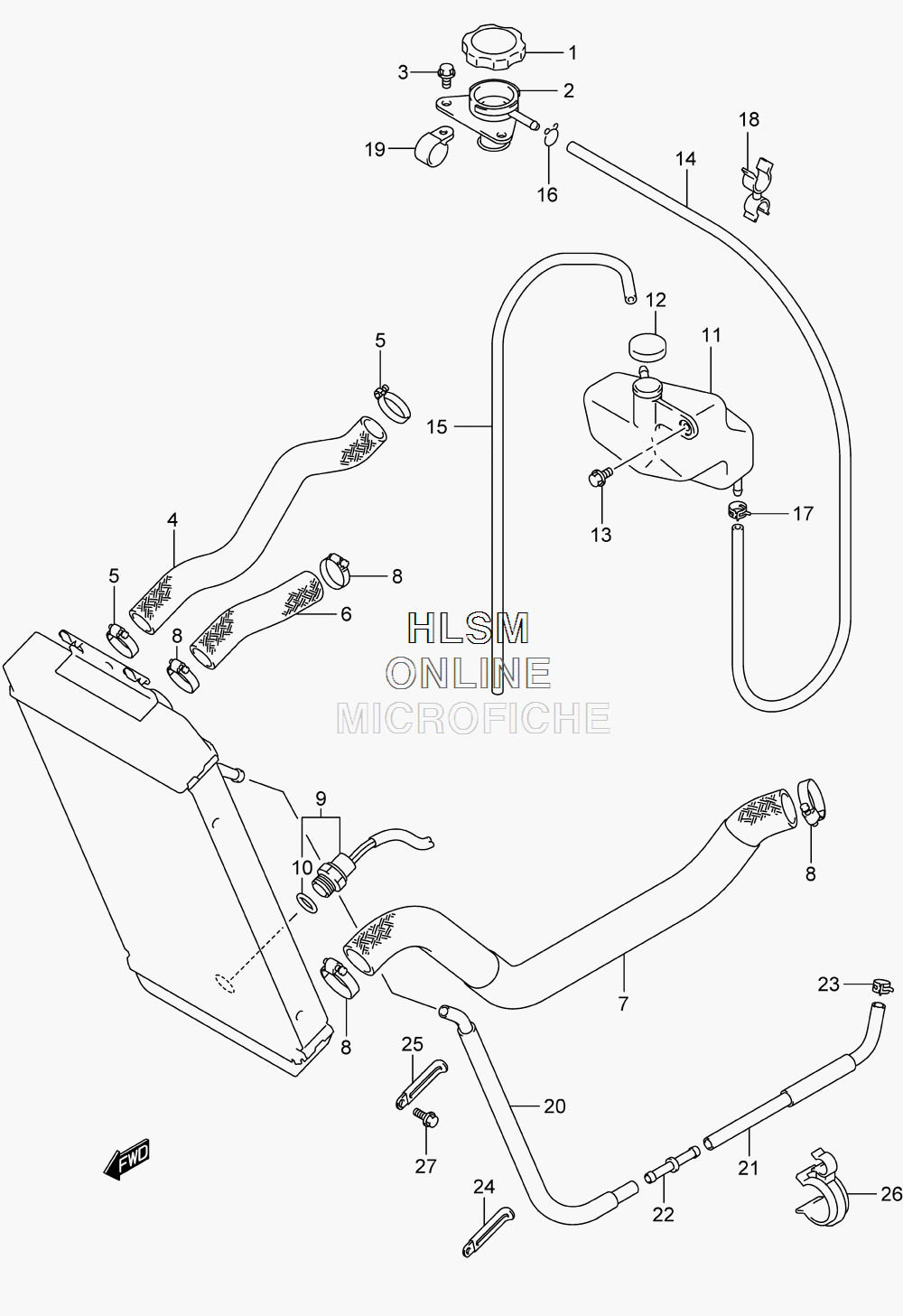

RADIATOR HOSE W/ RESERVOIR для Suzuki VL800 L3 - 2013 года выпуска`
-
№АртикулНазвание
-
117730-12C30 CAP, RADIATOR, 1.1CAP, RADIATOR, 1.1
-
217791-24D00 CONDUCTIONCONDUCTION
-
301547-0616A BOLTBOLT
-
417853-41F00 HOSE, CONDUCTIONHOSE, CONDUCTION
-
509402-28513 CLAMPCLAMP
-
617851-41F00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
717852-41F02 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
809402-32512 CLAMPCLAMP
-
917680-33E00 SWITCH, RADIATOR FANSWITCH, RADIATOR FAN
-
1017689-50F00 ...O RING...O RING
-
1117911-41F11 RESERVOIR TANKRESERVOIR TANK
-
1217932-12C00 CAP, RESERVOIR TANKCAP, RESERVOIR TANK
-
1309111-06085 BOLT (6X12)BOLT (6X12)
-
1417981-41F11 HOSE, INLETHOSE, INLET
-
1517981-19F00 HOSE, OUTLETHOSE, OUTLET
-
1609401-08410 CLIPCLIP
-
1709401-08411 CLIPCLIP
-
1809408-00078 CLAMPCLAMP
-
1909403-08404 CLAMPCLAMP
-
2017855-41F00 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
2117856-41F00 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
2209367-08001 JOINTJOINT
-
2309401-12405 CLIPCLIP
-
2409404-08419 CLAMP (L:80)CLAMP (L:80)
-
2509404-10205 CLAMP (L:82)CLAMP (L:82)
-
2609408-00177 CLAMPCLAMP
-
2709103-10393 BOLT (10X16)BOLT (10X16)
