GASKET SET для Suzuki LS650 L3 SAVAGE - 2013 года выпуска

  • №
    Артикул
    Название

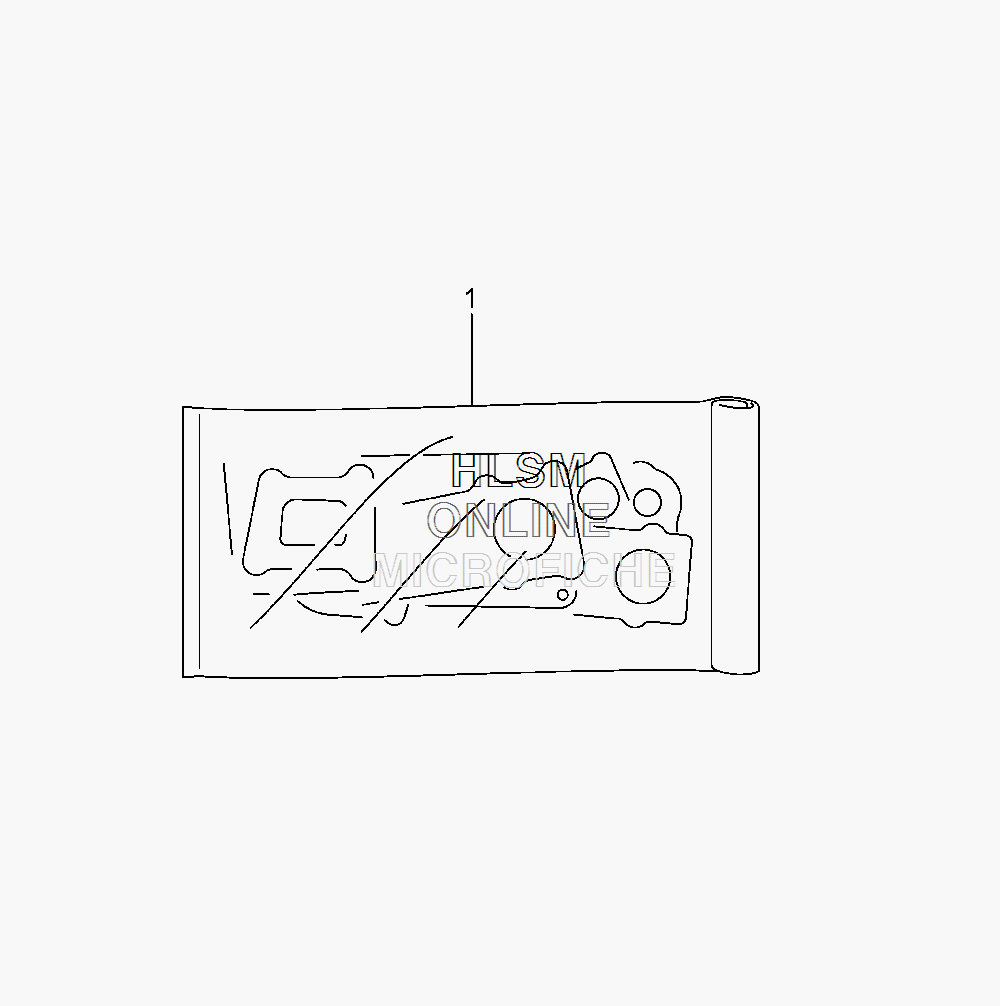

  • 1
    11400-24880 GASKET SET
    GASKET SET
  • 2
    11141-24B03 ...GASKET, CYLINDER HEAD
    ...GASKET, CYLINDER HEAD
  • 3
    11178-24B00 ...O-RING, HEAD COVER
    ...O-RING, HEAD COVER
  • 4
    11241-24B01-H17 ...GASKET, CYLINDER
    ...GASKET, CYLINDER
  • 5
    11482-24B20 ...GASKET, CLUTCH COVER
    ...GASKET, CLUTCH COVER
  • 6
    11483-24B01-H17 ...GASKET, GENERATOR COVER
    ...GASKET, GENERATOR COVER
  • 7
    11485-24B20 ...GASKET, GEAR SHIFT COVER
    ...GASKET, GEAR SHIFT COVER
  • 8
    14181-45C00 ...GASKET, EXHAUST PIPE
    ...GASKET, EXHAUST PIPE
  • 9
    09168-06023 ...GASKET (5...8X13X1.2)
    ...GASKET (5...8X13X1.2)
  • 10
    09168-10031 ...GASKET (10.2X20X2.3)
    ...GASKET (10.2X20X2.3)
  • 11
    09280-07004 ...O-RING (D:1.9,ID:6.8)
    ...O-RING (D:1.9,ID:6.8)
  • 12
    09280-09005 ...O-RING (D:1.9,ID:8.6)
    ...O-RING (D:1.9,ID:8.6)
  • 13
    09280-10013 ...O-RING (D:2.4,ID:9.6)
    ...O-RING (D:2.4,ID:9.6)
  • 14
    09280-15007 ...O-RING (D:2.4,ID:15.8)
    ...O-RING (D:2.4,ID:15.8)
  • 15
    09280-17003 ...O-RING (D:3.1,ID:16.8)
    ...O-RING (D:3.1,ID:16.8)
  • 16
    09280-24010 ...O-RING (D:2.4,ID:23.7)
    ...O-RING (D:2.4,ID:23.7)
  • 17
    09280-33004 ...O-RING (D:3.1,ID:32.7)
    ...O-RING (D:3.1,ID:32.7)
  • 18
    09280-46002 ...O-RING (D:2.4,ID:45.7)
    ...O-RING (D:2.4,ID:45.7)
  • 19
    09280-60004 ...O-RING (D:2.4,ID:23)
    ...O-RING (D:2.4,ID:23)
  • 20
    09280-72001 ...O-RING (D:2.4,ID:73)
    ...O-RING (D:2.4,ID:73)
