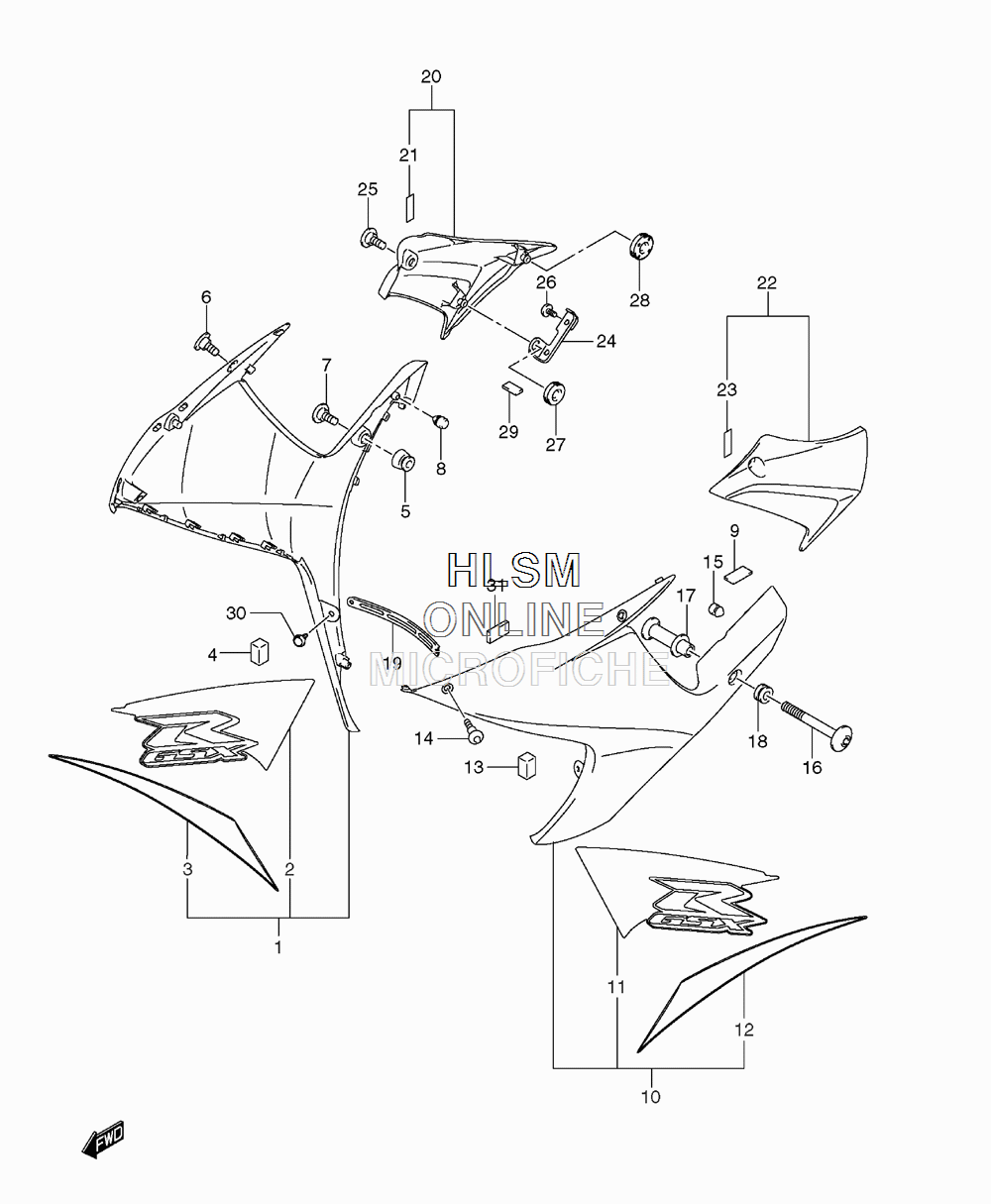

COWLING - SIDE (AA3 - DARK BLUE/CHROME MODEL) для Suzuki GSX-R750 L3 - 2013 года выпуска`
-
№АртикулНазвание
-
194450-15J20-YVB COWLING, SIDE RIGHT (YVB - BLACK)COWLING, SIDE RIGHT (YVB - BLACK)
-
268685-15J10-AG8 ...TAPE, SIDE COWLING UPPER RIGHT (AG8 - BLACK/GRAY)...TAPE, SIDE COWLING UPPER RIGHT (AG8 - BLACK/GRAY)
-
368685-15J20-AG7 ...TAPE, SIDE COWLING LOWER RIGHT (AG7 - BLACK/GRAY)...TAPE, SIDE COWLING LOWER RIGHT (AG7 - BLACK/GRAY)
-
494477-14J01 CUSHIONCUSHION
-
594479-15H00 CUSHION, SIDE COWLING RIGHTCUSHION, SIDE COWLING RIGHT
-
609139-05064 SCREW (5X13)SCREW (5X13)
-
709139-06190 BOLT (6X20)BOLT (6X20)
-
809321-06013 CUSHIONCUSHION
-
944543-10G00 PROTECTOR, SIDE COWLING LEFTPROTECTOR, SIDE COWLING LEFT
-
1094460-15J20-YVB COWLING, SIDE LEFT (YVB - BLACK)COWLING, SIDE LEFT (YVB - BLACK)
-
1168695-15J10-AG8 ...TAPE, SIDE COWLING UPPER LEFT (AG8 - BLACK/GRAY)...TAPE, SIDE COWLING UPPER LEFT (AG8 - BLACK/GRAY)
-
1268695-15J20-AG7 ...TAPE, SIDE COWLING LOWER LEFT (AG7 - BLACK/GRAY)...TAPE, SIDE COWLING LOWER LEFT (AG7 - BLACK/GRAY)
-
1394477-14J01 CUSHIONCUSHION
-
1409139-05064 SCREW (5X13)SCREW (5X13)
-
1509321-06013 CUSHIONCUSHION
-
1694488-14J00 SCREW, SIDE COWLING LEFTSCREW, SIDE COWLING LEFT
-
1794489-14J00 SPACER, SIDE COWLING LEFTSPACER, SIDE COWLING LEFT
-
1809320-09016 CUSHIONCUSHION
-
1994498-14J00 PLATE, UNDER COWLING CENTERPLATE, UNDER COWLING CENTER
-
2094570-14J00 COVER, SIDE COWLING RIGHTCOVER, SIDE COWLING RIGHT
-
2194443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
2294580-14J00 COVER, SIDE COWLING LEFTCOVER, SIDE COWLING LEFT
-
2394443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
2494491-14J00 BRACKET, COVER SIDE RIGHTBRACKET, COVER SIDE RIGHT
-
2509139-05064 SCREW (5X13)SCREW (5X13)
-
2609139-06062 SCREW (6X12)SCREW (6X12)
-
2709320-08013 CUSHIONCUSHION
-
2809320-08028 CUSHIONCUSHION
-
2994612-31F00 CUSHION, BRACKET COVER RIGHTCUSHION, BRACKET COVER RIGHT
-
3094479-35F00 CLIP, UNDER CTRCLIP, UNDER CTR
-
3133652-29F00 CUSHIONCUSHION
