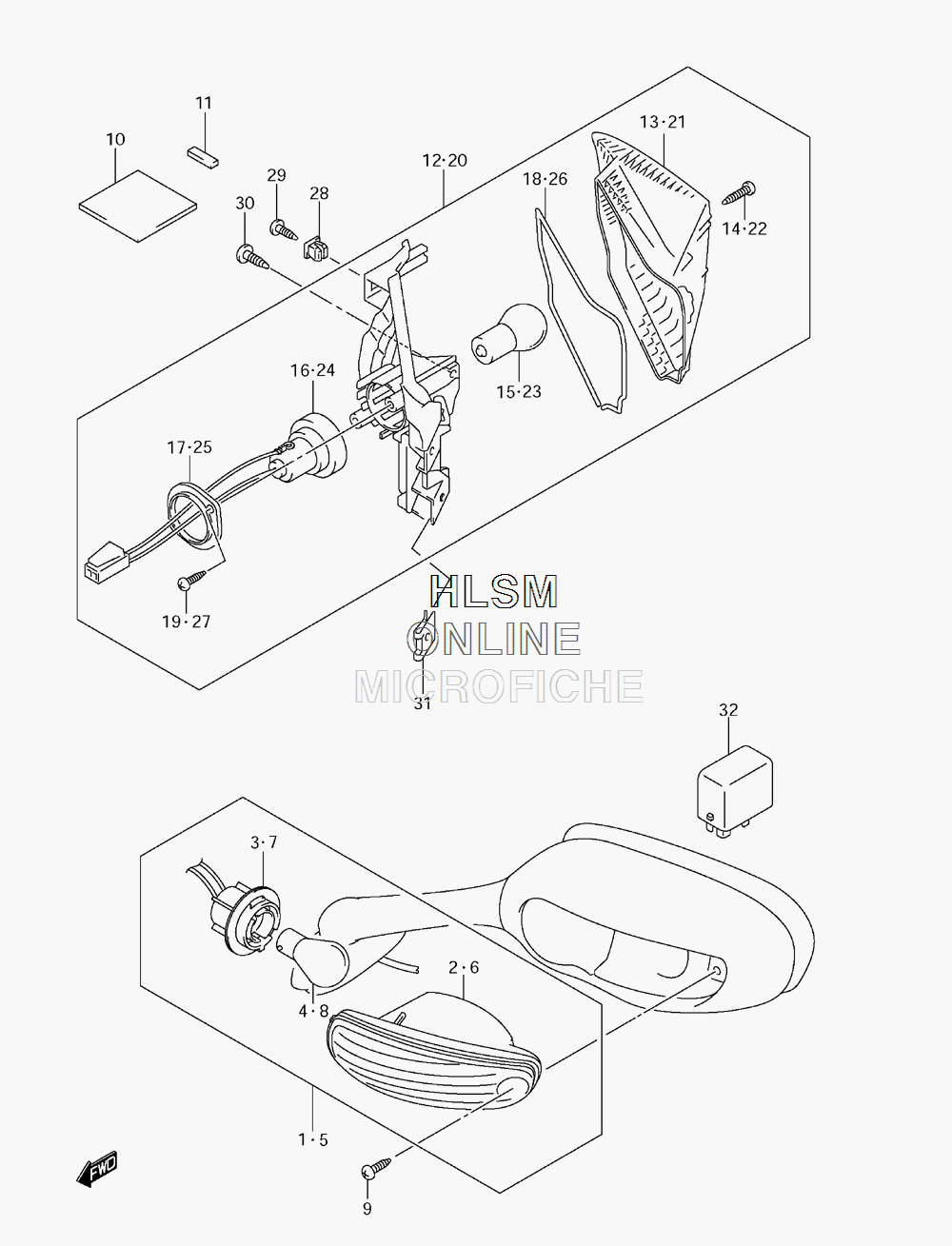

TURN SIGNAL ASSY. (CALIF. ONLY) для Suzuki GSX-R600 L3 - 2013 года выпуска
-
№АртикулНазвание
-
135601-41G00 LAMP ASSY, FRONT TURNSIGNAL RIGHTLAMP ASSY, FRONT TURNSIGNAL RIGHT
-
235610-41G00 ...LAMP UNIT, RIGHT...LAMP UNIT, RIGHT
-
335618-10G50 ...SOCKET, RIGHT...SOCKET, RIGHT
-
409471-12186 ...BULB (12V21W)...BULB (12V21W)
-
535602-41G00 LAMP ASSY, FRONT TURNSIGNAL LEFTLAMP ASSY, FRONT TURNSIGNAL LEFT
-
635630-41G00 ...LAMP UNIT, LEFT...LAMP UNIT, LEFT
-
735638-10G50 ...SOCKET, LEFT...SOCKET, LEFT
-
809471-12186 ...BULB (12V21W)...BULB (12V21W)
-
909132-04032 SCREW (4X20)SCREW (4X20)
-
1033652-21G10 CUSHION, FRONT TURNSIGNALCUSHION, FRONT TURNSIGNAL
-
1194443-21H00 TAPE, FRONT TURNTAPE, FRONT TURN
-
1235603-14J30 LAMP ASSY, REAR TURNSIGNAL, RIGHTLAMP ASSY, REAR TURNSIGNAL, RIGHT
-
1335652-14J30 ...LENS, RIGHT...LENS, RIGHT
-
1403211-0416A ...SCREW...SCREW
-
1509471-12186 ...BULB (12V21W)...BULB (12V21W)
-
1635658-41G00 ...SOCKET & CORD, RIGHT...SOCKET & CORD, RIGHT
-
1735716-07A30 ...PLATE...PLATE
-
1835653-47H00 ...GASKET...GASKET
-
1903211-0412A ...SCREW...SCREW
-
2035604-14J30 LAMP ASSY, REAR TURNSIGNAL, LEFTLAMP ASSY, REAR TURNSIGNAL, LEFT
-
2135672-14J30 ...LENS, LEFT...LENS, LEFT
-
2203211-0416A ...SCREW...SCREW
-
2309471-12186 ...BULB (12V21W)...BULB (12V21W)
-
2435678-41G00 ...SOCKET & CORD, LEFT...SOCKET & CORD, LEFT
-
2535716-07A30 ...PLATE...PLATE
-
2635653-47H00 ...GASKET...GASKET
-
2703211-0412A ...SCREW...SCREW
-
2809148-04021 NUTNUT
-
2903541-0412A SCREWSCREW
-
3003511-0512A SCREWSCREW
-
3109148-05038 NUTNUT
-
3238610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
